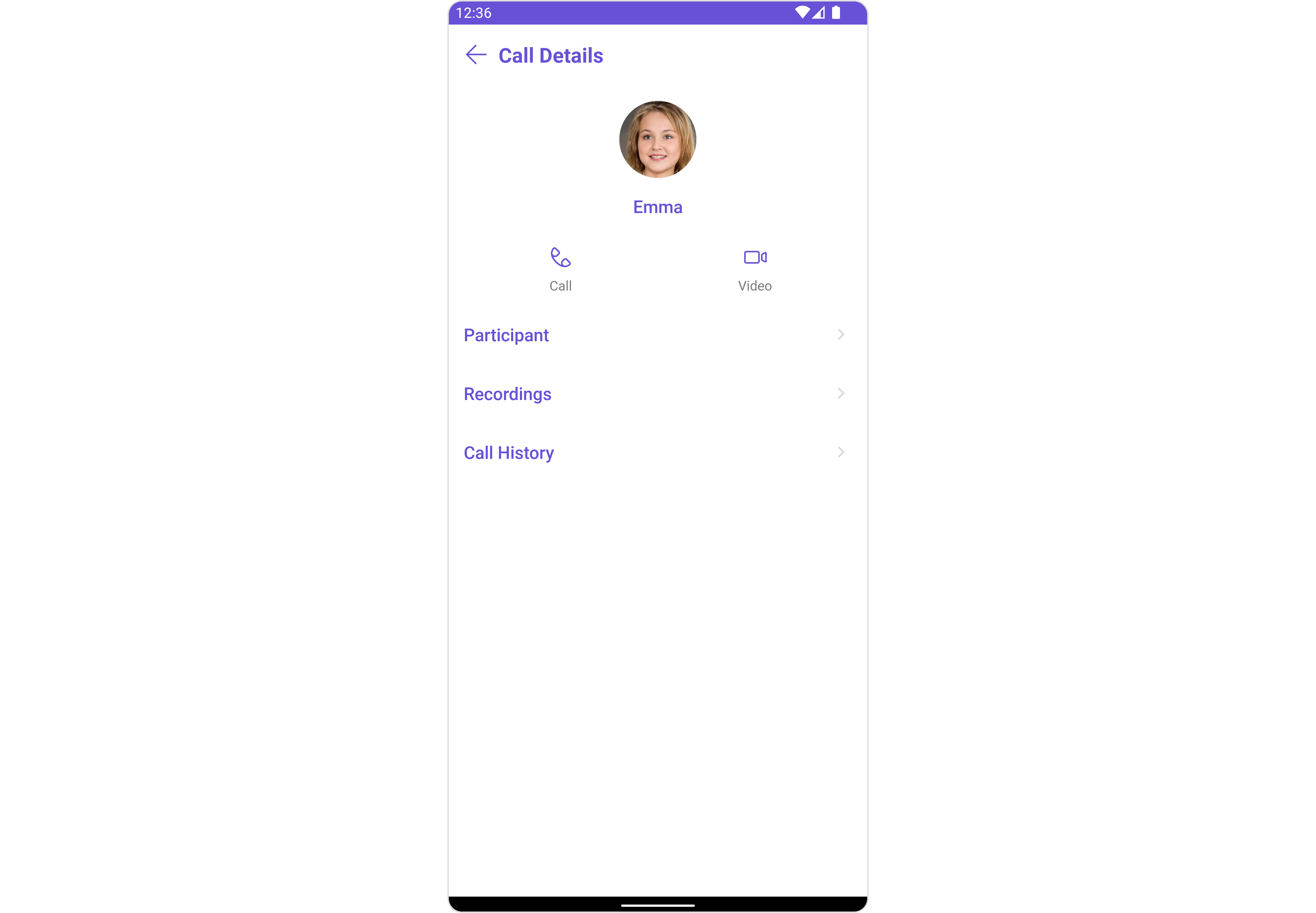

Overview

The CometChatCallLogDetails is a Component that displays all the information related to a call. This component displays information like user/group information, participants of the call, recordings of the call (if available) & history of all the previous calls. Also, it has buttons to start a new call.

Usage

Integration

CometChatCallLogDetails is a Composite component, that can be seamlessly presented within your application. To display the details of a CallLog, you simply need to pass the corresponding CallLog object to the CometChatCallLogDetails instance using its setCall() property. This enables you to efficiently showcase specific call log details within your application’s interface.

Since CometChatCallLogDetails can be launched by adding the following code snippet into the XML layout file.

XML

<com.cometchat.chatuikit.calls.calldetails.CometChatCallLogDetails
    android:id="@+id/details"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

If you’re defining the CometChatCallLogDetails within the XML code or in your activity or fragment then you’ll need to extract them and set the Call object using the appropriate method.

Java

CometChatCallLogDetails cometchatCallLogDetails = binding.details; // 'binding' is a view binding instance. Initialize it with `binding = YourXmlFileNameBinding.inflate(getLayoutInflater());` to use views like `binding.details` after enabling view binding.

cometchatCallLogDetails.setCall(callLog); //Required - call log object

Kotlin

val cometchatCallLogDetails: CometChatCallLogDetails = binding.details // 'binding' is a view binding instance. Initialize it with `binding = YourXmlFileNameBinding.inflate(layoutInflater)` to use views like `binding.details` after enabling view binding.

cometchatCallLogDetails.setCall(callLog) //Required - call log object

Activity and Fragment

You can integrate CometChatCallLogDetails into your Activity and Fragment by adding the following code snippets into the respective classes.

Java (Activity)

YourActivity.java

CometChatCallLogDetails cometchatCallLogDetails;

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    cometchatCallLogDetails = new CometChatCallLogDetails(this);
    cometchatCallLogDetails.setCall(callLog); //Required - call log object

    setContentView(cometchatCallLogDetails);
}

Kotlin (Activity)

YourActivity.kt

private lateinit var cometchatCallLogDetails: CometChatCallLogDetails

override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)

    cometchatCallLogDetails = CometChatCallLogDetails(this)
    cometchatCallLogDetails.setCall(callLog) //Required - call log object

    setContentView(cometchatCallLogDetails)
}

Java (Fragment)

YourFragment.java

CometChatCallLogDetails cometchatCallLogDetails;

@Override
public View onCreateView(@NonNull LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
    cometchatCallLogDetails = new CometChatCallLogDetails(requireActivity());
    cometchatCallLogDetails.setCall(callLog); //Required - call log object

    return cometchatCallLogDetails;
}

Kotlin (Fragment)

YourFragment.kt

private lateinit var cometchatCallLogDetails: CometChatCallLogDetails

override fun onCreateView(
    inflater: LayoutInflater,
    container: ViewGroup?,
    savedInstanceState: Bundle?
): View {
    cometchatCallLogDetails = CometChatCallLogDetails(requireActivity())
    cometchatCallLogDetails.setCall(callLog) //Required - call log object

    return cometchatCallLogDetails
}

---

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

The CometChatCallLogDetails component does not have any exposed actions.

---

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

The CometChatCallLogDetails component does not have any exposed filters.

---

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The CometChatCallLogDetails component does not have any exposed events.

---

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. CallLogDetails Style

You can customize the appearance of the CometChatCallLogDetails Component by applying the CallLogDetailsStyle to it using the following code snippet.

Java

CallLogDetailsStyle callLogDetailsStyle = new CallLogDetailsStyle();
callLogDetailsStyle.setBackground(Color.parseColor("#C0C0C0"));
callLogDetailsStyle.setTitleColor(Color.RED);
callLogDetailsStyle.setBorderColor(Color.RED);
callLogDetailsStyle.setBorderWidth(5);

cometchatCallLogDetails.setStyle(callLogDetailsStyle);

Kotlin

val callLogDetailsStyle = CallLogDetailsStyle()
callLogDetailsStyle.setBackground(Color.parseColor("#C0C0C0"))
callLogDetailsStyle.setTitleColor(Color.RED)
callLogDetailsStyle.setBorderColor(Color.RED)
callLogDetailsStyle.setBorderWidth(5)

cometchatCallLogDetails.setStyle(callLogDetailsStyle)

List of properties exposed by CallLogDetailsStyle

Property	Description	Code
Background	used to set background color	.setBackground(@ColorInt int)
Background	used to set a gradient background	.setBackground(Drawable)
Border Color	used to set border color	.setBorderColor(@ColorInt int)
Border Width	used to set border	.setBorderWidth(int)
Close Icon Tint	used to set the color of the back icon in the app bar	.setCloseIconTint(@ColorInt int)
CornerRadius	used to set corner radius	.setCornerRadius(double)
Name Text Appearance	Used to set Name Text Appearance.	.setNameTextAppearance(@StyleRes int)
Name Text Color	Used to set Name Text Color.	.setNameTextColor(@ColorInt int)
Title Appearance	used to set style of the title in the app bar	.setTitleAppearance(@StyleRes int)
Title Color	Used to set title Color	.setTitleColor(@ColorInt int)

2. Avatar Styles

To apply customized styles to the Avatar component in the CometChatCallLogDetails Component, you can use the following code snippet. For further insights on Avatar Styles refer

Java

AvatarStyle avatarStyle = new AvatarStyle()
        .setBorderColor(Color.RED)
        .setBorderWidth(10);
cometchatCallLogDetails.setAvatarStyle(avatarStyle);

Kotlin

val avatarStyle = AvatarStyle()
    .setBorderColor(Color.RED)
    .setBorderWidth(10)
cometchatCallLogDetails.setAvatarStyle(avatarStyle)

---

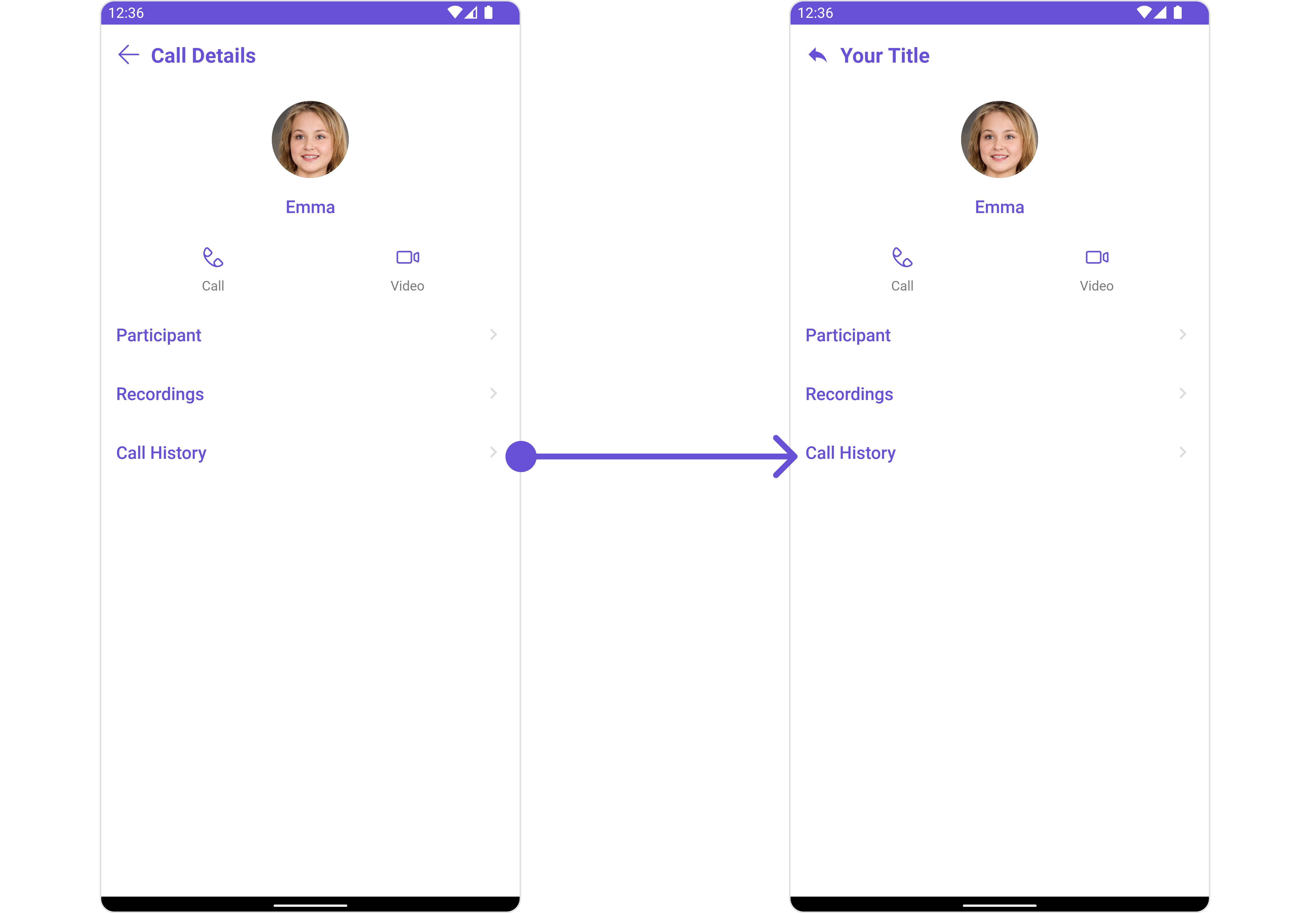

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Java

cometchatCallLogDetails.setCloseButtonIcon(R.drawable.ic_reply);
cometchatCallLogDetails.setTitle("Your Title");

Kotlin

cometchatCallLogDetails.setCloseButtonIcon(R.drawable.ic_reply)
cometchatCallLogDetails.setTitle("Your Title")

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
Call	Used to validate and fetch a list of available options for groups	.setCall(CallLog)
Hide Profile	Hides view profile option for users	.hideProfile(boolean)
Set Close Button Icon	Used to set back button located in the app bar	.setCloseButtonIcon(@DrawableRes int)
Set Title	Used to set the title in the app bar	.setTitle(String)
Show Close Button	Used to toggle visibility for back button	.showCloseButton(boolean)

---

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

Menu

You can set the Custom Menu to add more options to the CometChatCallLogDetails component.

Java

cometchatCallLogDetails.setMenu();

Kotlin

cometchatCallLogDetails.setMenu()

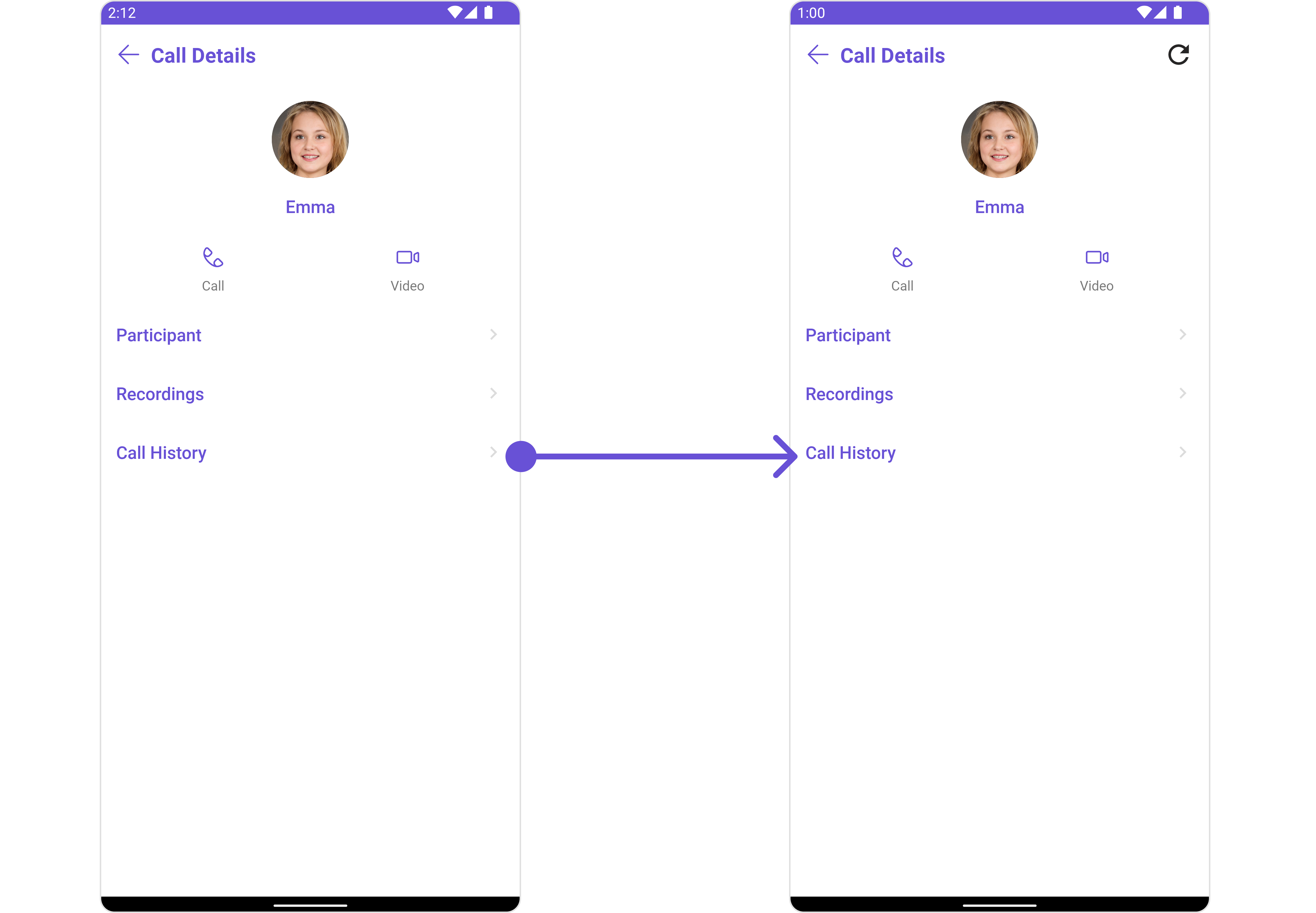

Example

You need to create a view_menu.xml as a custom view file. Which we will inflate and pass to .setMenu().

view_menu.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/img_refresh"
        android:layout_width="30dp"
        android:layout_height="30dp"
        android:src="@drawable/ic_refresh_black" />

</LinearLayout>

You inflate the view and pass it to setMenu. You can get the child view reference and can handle click actions.

Java

YourActivity.java

View view = getLayoutInflater().inflate(R.layout.view_menu, null);
ImageView imgRefresh = view.findViewById(R.id.img_refresh);
imgRefresh.setOnClickListener(v -> {
    Toast.makeText(this, "Clicked on Refresh", Toast.LENGTH_SHORT).show();
});
cometchatCallLogDetails.setMenu(view);

Kotlin

YourActivity.kt

val view: View = layoutInflater.inflate(R.layout.view_menu, null)
val imgRefresh = view.findViewById<ImageView>(R.id.img_refresh)
imgRefresh.setOnClickListener { v: View? ->
    Toast.makeText(this, "Clicked on Refresh", Toast.LENGTH_SHORT).show()
}
cometchatCallLogDetails.setMenu(view)

---

Template and Options

Enhance your CometChatCallLogDetails component by setting Custom Options and Template to incorporate additional functionalities when swiping.

1. CometChatCallLogDetailsOption is the class providing structure for options to be shown for users and group members

Java

CometChatCallLogDetailsOption callLogDetailsOption = new CometChatCallLogDetailsOption();

Kotlin

val callLogDetailsOption: CometChatCallLogDetailsOption = CometChatCallLogDetailsOption()

List of Functionality used to customize the appearance of the CometChatCallLogDetailsOption component.

properties	Type	Description
id	String	unique ID for the option
title	String	used to set title for the option
startIcon	@DrawableRes int	used to set start icon for the option
endIcon	@DrawableRes int	used to set end icon for the option
titleColor	@ColorInt int	used to set title color
titleFont	String	used to set title text font
titleAppearance	@StyleRes int	used to set style of the title text
startIconTint	@ColorInt int	set color of start icon
endIconTint	@ColorInt int	set color of end icon
onClick	OnDetailOptionClick	the action to perform on click of option
view	Function3<Context,CallLog, View>	to set a custom view for particular option

2. CometChatCallLogDetailsTemplate defines the structure for sections of options available in the CometChatCallLogDetails

Java

CometChatCallLogDetailsTemplate CometChatCallLogDetailsTemplate = new CometChatCallLogDetailsTemplate()
        .setId(UIKitConstants.DetailsTemplate.PRIMARY)
        .hideSectionSeparator(true);

CometChatCallLogDetailsTemplate.setOptions((context1, log) -> {
return new ArrayList<>();
});

Kotlin

val cometchatCallLogDetailsTemplate = CometChatCallLogDetailsTemplate()
    .setId(UIKitConstants.DetailsTemplate.PRIMARY)
    .hideSectionSeparator(true)

cometchatCallLogDetailsTemplate.setOptions { context1: Context?, log: CallLog? -> ArrayList() }

List of Functionality exposed by CometChatCallLogDetailsTemplate

Methods	Type	Description
setId	String	unique ID for the option
setTitle	String	a text to display below the icon
setTitleAppearance	@StyleRes int	used to set style of the text below the icon
setOptions	Function2<Context, CallLog, List<CometChatCallLogDetailsOption>>	options available under each section
setSectionSeparatorColor	@ColorInt int	the color of the divider separating the sections of options
hideSectionSeparator	boolean	if true doesn’t show the divider separating the sections of options
setItemSeparatorColor	@ColorInt int	the color of the divider separating the each option
setHideItemSeparator	@ColorInt int	if true doesn’t show the divider separating the each option

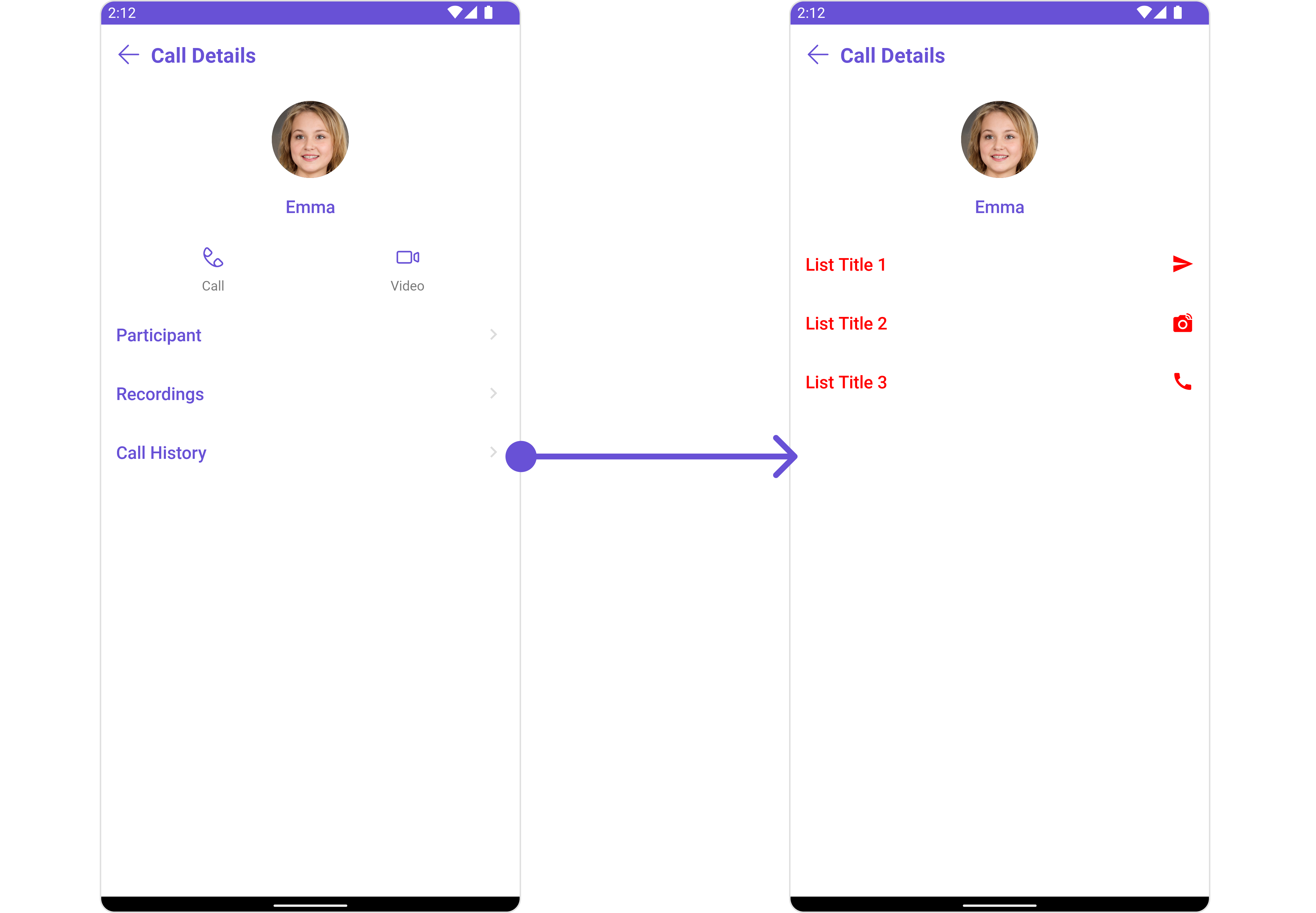

Example

Java

List<CometChatCallLogDetailsOption> cometchatCallLogDetailsOptionArrayList = new ArrayList<>();
if (callLog != null) {
    if (callLog.getParticipants() != null && !callLog.getParticipants().isEmpty())
        cometchatCallLogDetailsOptionArrayList.add(
                new CometChatCallLogDetailsOption(
                        UIKitConstants.CallOption.CALL_HISTORY,
                        "List Title 1",
                        0,
                        R.drawable.ic_send,
                        Color.RED,
                        null,
                        Typography.getInstance().getName(),
                        0,
                        Color.RED,
                        null
                )
        );
    if (callLog.getRecordings() != null && !callLog.getRecordings().isEmpty()) {
        cometchatCallLogDetailsOptionArrayList.add(
                new CometChatCallLogDetailsOption(
                        UIKitConstants.CallOption.CALL_HISTORY,
                        "List Title 2",
                        0,
                        R.drawable.broadcast_camera,
                        Color.RED,
                        null,
                        Typography.getInstance().getName(),
                        0,
                        Color.RED,
                        null
                )
        );
    }
    cometchatCallLogDetailsOptionArrayList.add(
            new CometChatCallLogDetailsOption(
                    UIKitConstants.CallOption.CALL_HISTORY,
                    "List Title 3",
                    0,
                    R.drawable.ic_call,
                    Color.RED,
                    null,
                    Typography.getInstance().getName(),
                    0,
                    Color.RED,
                    null
            )
    );
}

CometChatCallLogDetailsTemplate cometchatCallLogDetailsTemplate = new CometChatCallLogDetailsTemplate()
.setId(UIKitConstants.DetailsTemplate.PRIMARY)
.hideSectionSeparator(true);

cometchatCallLogDetailsTemplate.setOptions((context1, log) -> cometchatCallLogDetailsOptionArrayList);

cometchatCallLogDetails.setData((context1, callUser, callGroup) -> Collections.singletonList(cometchatCallLogDetailsTemplate));

Kotlin

val cometchatCallLogDetailsOptionArrayList: MutableList<CometChatCallLogDetailsOption> =
    ArrayList()
if (callLog != null) {
    if (callLog.getParticipants() != null && !callLog.getParticipants()
            .isEmpty()
    ) cometchatCallLogDetailsOptionArrayList.add(
        CometChatCallLogDetailsOption(
            UIKitConstants.CallOption.CALL_HISTORY,
            "List Title 1",
            0,
            R.drawable.ic_send,
            Color.RED,
            null,
            Typography.getInstance().name,
            0,
            Color.RED,
            null
        )
    )
    if (callLog.getRecordings() != null && !callLog.getRecordings().isEmpty()) {
        cometchatCallLogDetailsOptionArrayList.add(
            CometChatCallLogDetailsOption(
                UIKitConstants.CallOption.CALL_HISTORY,
                "List Title 2",
                0,
                R.drawable.broadcast_camera,
                Color.RED,
                null,
                Typography.getInstance().name,
                0,
                Color.RED,
                null
            )
        )
    }
    cometchatCallLogDetailsOptionArrayList.add(
        CometChatCallLogDetailsOption(
            UIKitConstants.CallOption.CALL_HISTORY,
            "List Title 3",
            0,
            R.drawable.ic_call,
            Color.RED,
            null,
            Typography.getInstance().name,
            0,
            Color.RED,
            null
        )
    )
}


val cometchatCallLogDetailsTemplate = CometChatCallLogDetailsTemplate()
    .setId(UIKitConstants.DetailsTemplate.PRIMARY)
    .hideSectionSeparator(true)

cometchatCallLogDetailsTemplate.setOptions { context1: Context?, log: CallLog? -> cometchatCallLogDetailsOptionArrayList }

cometchatCallLogDetails.setData(Function3<Context, CallUser, CallGroup, List<CometChatCallLogDetailsTemplate>> { context1: Context?, callUser: CallUser?, callGroup: CallGroup? ->
    listOf<CometChatCallLogDetailsTemplate>(
        cometchatCallLogDetailsTemplate
    )
})
