Overview

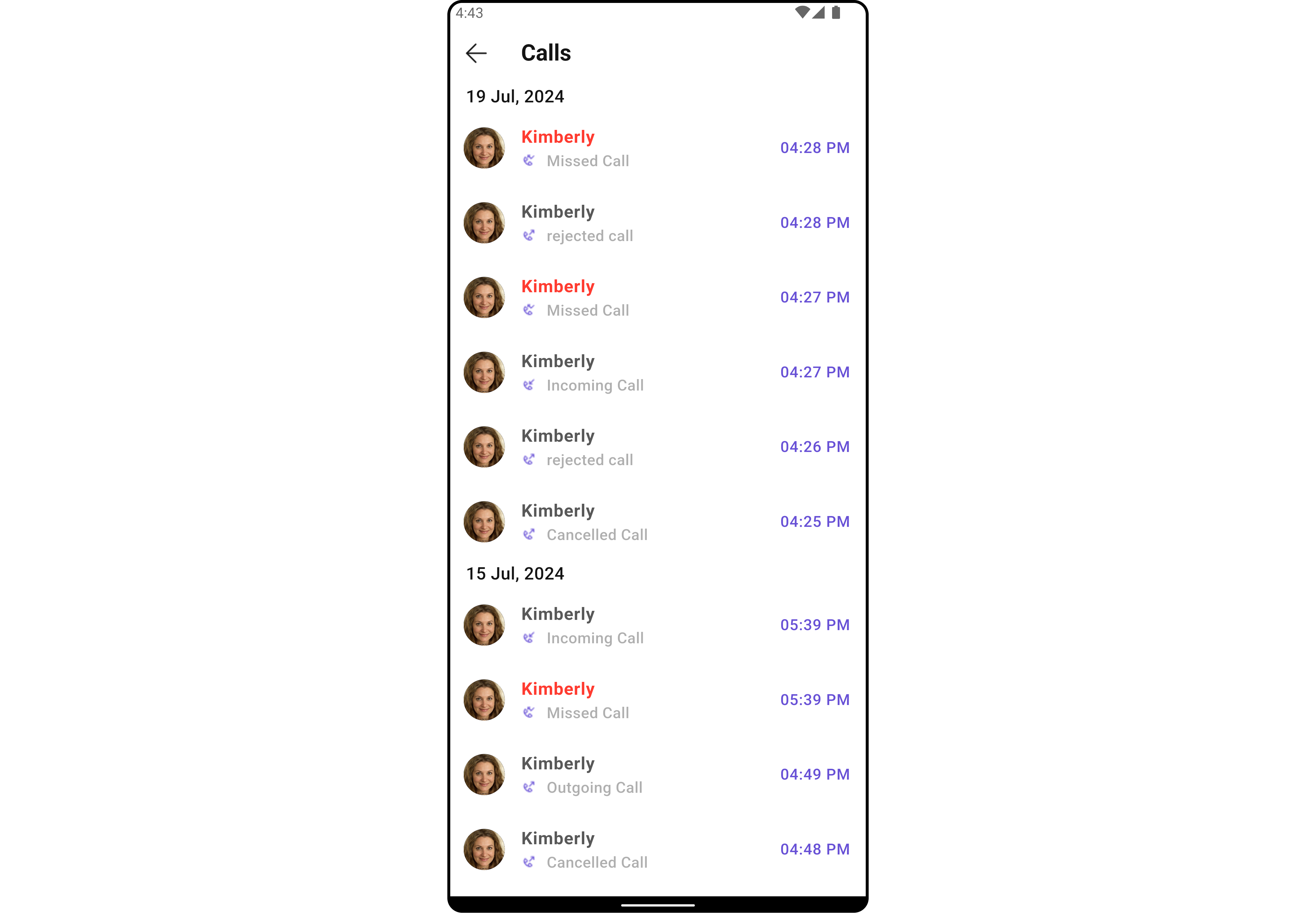

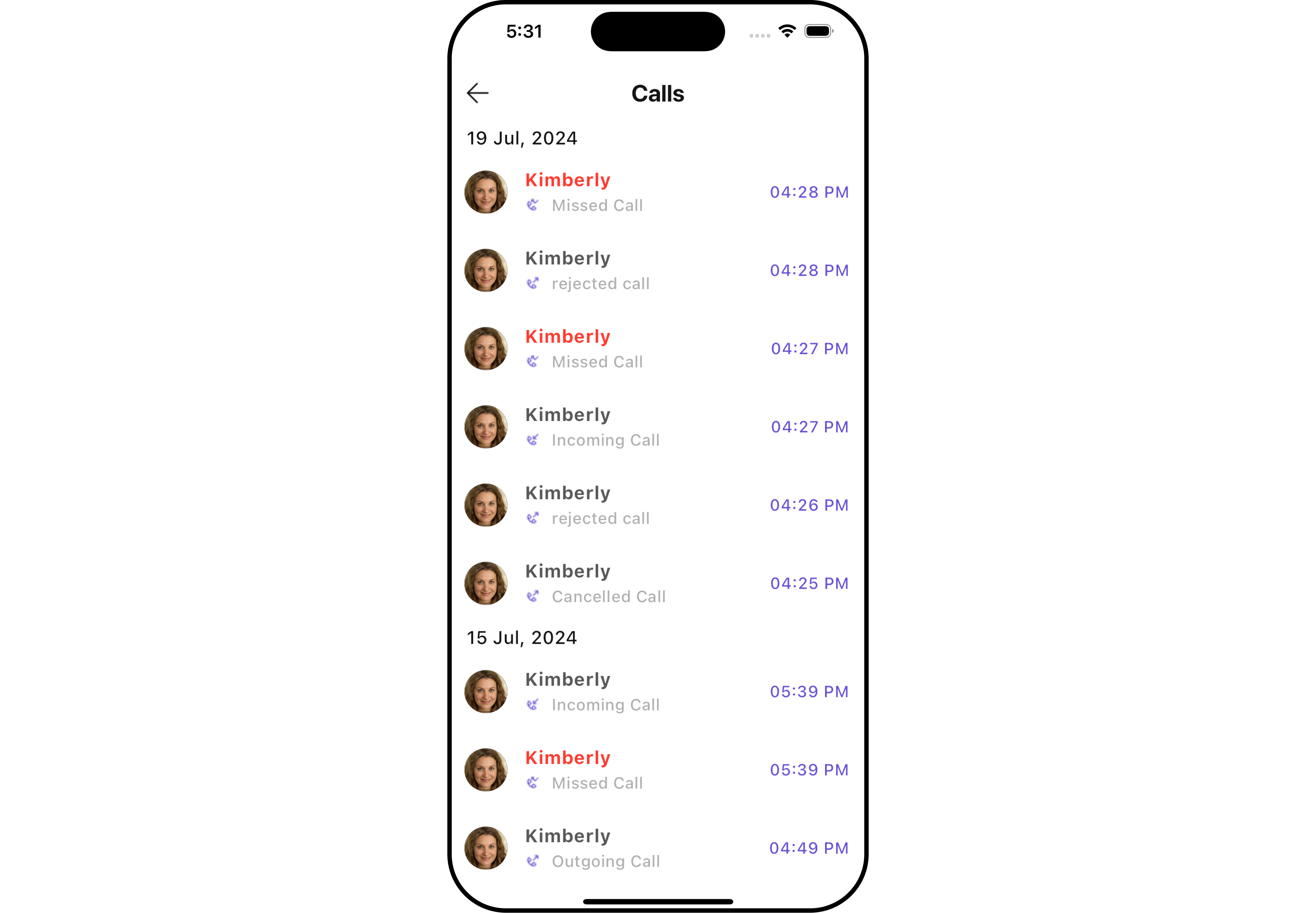

CometChatCallLogs is a Widget that shows the list of Call Logs available. By default, names are shown for all listed users, along with their avatars if available.

Android

iOS

The CometChatCallLogs widget is composed of the following BaseWidgets:

Widgets	Description
CometChatListBase	CometChatListBase is a container widget featuring a title, customizable background options, and a dedicated list widget for seamless integration within your application’s interface.
CometChatListItem	This widget displays data retrieved from a CallLog object on a card, presenting a title and subtitle.

Usage

Integration

CometChatCallLogs being a wrapper widget, offers versatility in its integration. It can be seamlessly launched via button clicks or any user-triggered action, enhancing the overall user experience and facilitating smoother interactions within the application.

You can launch CometChatCallLogs directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch CometChatCallLogs

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => CometChatCallLogs()));

2. Embedding CometChatCallLogs as a Widget in the build Method

Dart

import 'package:cometchat_calls_uikit/cometchat_calls_uikit.dart';
import 'package:flutter/material.dart';

class CallLogsExample extends StatefulWidget {
  const CallLogsExample({super.key});

  @override
  State<CallLogsExample> createState() => _CallLogsExampleState();
}

class _CallLogsExampleState extends State<CallLogsExample> {

  @override
  Widget build(BuildContext context) {
    return const Scaffold(
      body: SafeArea(
        child: CometChatCallLogs(),
      ),
    );
  }
}

---

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

1. onItemClick

This method proves valuable when users seek to override the onItemClick functionality within CometChatCallLogs, empowering them with greater control and customization options.

The onItemClick action doesn’t have a predefined behavior. You can override this action using the following code snippet.

Dart

CometChatCallLogs(
  onItemClick: (callLog) {
    // TODO("Not yet implemented")
  },
)

---

2. OnError

You can customize this behavior by using the provided code snippet to override the OnError and improve error handling.

Dart

CometChatCallLogs(
  onError: (e) {
    // TODO("Not yet implemented")
  },
)

---

3. onBack

You can customize this behavior by using the provided code snippet to override the onBack and improve error handling.

Dart

CometChatCallLogs(
  onBack: () {
    // TODO("Not yet implemented")
  },
)

---

4. onInfoIconClick

You can customize this behavior by using the provided code snippet to override the onInfoIconClick and improve error handling.

Dart

CometChatCallLogs(
  onInfoIconClick: (CallLog callLog) {
    // TODO("Not yet implemented")
  },
)

---

Filters

Filters allow you to customize the data displayed in a list within a Widget. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. CallLogRequestBuilder

The CallLogRequestBuilder enables you to filter and customize the call list based on available parameters in CallLogRequestBuilder. This feature allows you to create more specific and targeted queries during the call. The following are the parameters available in CallLogRequestBuilder

Example

In the example below, we are applying a filter based on the limit and have a call recording.

Dart

CometChatCallLogs(
  callLogsRequestBuilder: CallLogRequestBuilder()
    ..limit = 10
    ..hasRecording = true,
)

List of properties exposed by CallLogRequestBuilder

Property	Description	Code
Auth Token	Sets the authentication token.	authToken: String?
Call Category	Sets the category of the call.	callCategory: String?
Call Direction	Sets the direction of the call.	callDirection: String?
Call Status	Sets the status of the call.	callStatus: String?
Call Type	Sets the type of the call.	callType: String?
Guid	Sets the unique ID of the group involved in the call.	guid: String?
Has Recording	Indicates if the call has a recording.	hasRecording: bool
Limit	Sets the maximum number of call logs to return per request.	limit: int
Uid	Sets the unique ID of the user involved in the call.	uid: String?

---

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The CometChatCallLogs widget does not have any exposed events.

---

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

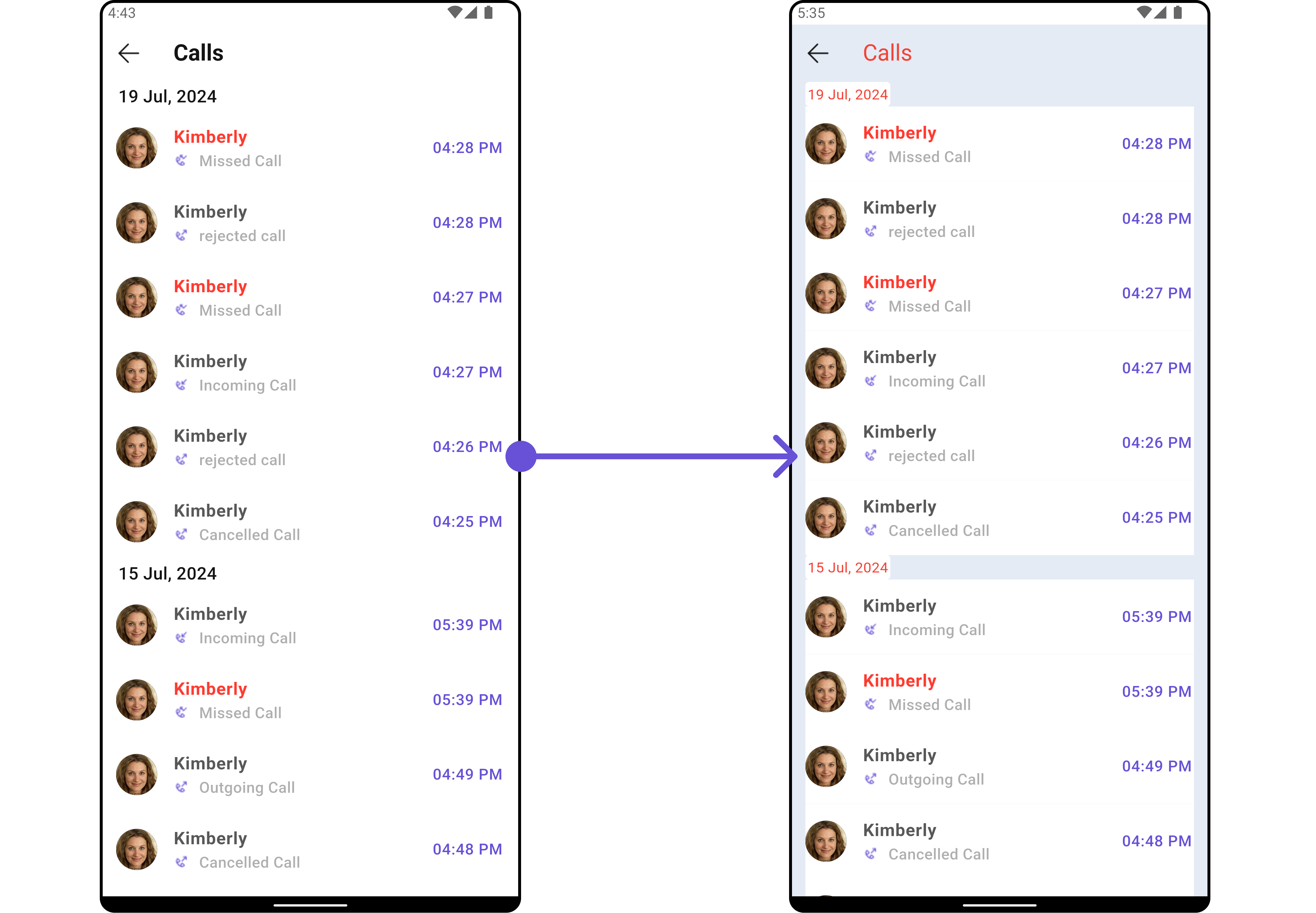

1. CallLogs Style

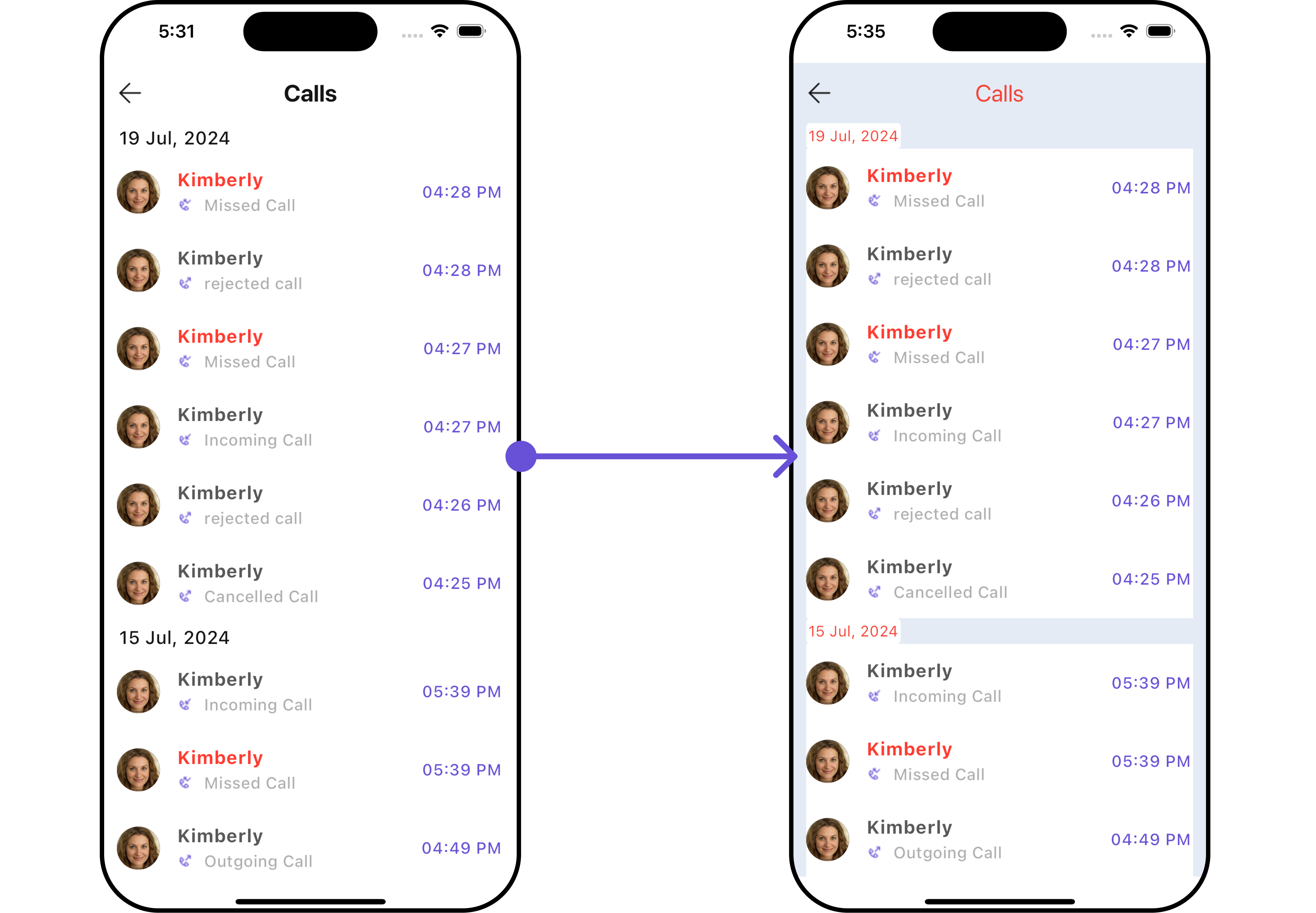

You can customize the appearance of the CometChatCallLogs Widget by applying the CallLogsStyle to it using the following code snippet.

Dart

CometChatCallLogs(
  callLogsStyle: CallLogsStyle(
      background: Color(0xFFE4EBF5),
      titleStyle: TextStyle(color: Colors.red),
  ),
)

Android

iOS

List of properties exposed by CallLogStyle

Property	Description	Code
Back Icon Tint	Sets the color for the back icon.	backIconTint: Color?
Background	Sets the background color.	background: Color?
Border	Sets the border style.	border: BoxBorder?
Border Radius	Sets the border radius.	borderRadius: double?
Call Status Icon Tint	Sets the color for the call status icon.	callStatusIconTint: Color?
Empty Text Style	Sets the text style for empty state text.	emptyTextStyle: TextStyle?
Error Text Style	Sets the text style for error messages.	errorTextStyle: TextStyle?
Gradient	Sets the gradient background.	gradient: Gradient?
Height	Sets the height of the call logs style.	height: double?
Info Icon Tint	Sets the color for the info icon.	infoIconTint: Color?
Loading Icon Tint	Sets the color for the loading icon.	loadingIconTint: Color?
Sub Title Style	Sets the text style for subtitles.	subTitleStyle: TextStyle?
Tail Title Style	Sets the text style for tail titles.	tailTitleStyle: TextStyle?
Title Style	Sets the text style for titles.	titleStyle: TextStyle?
Width	Sets the width of the call logs style.	width: double?

---

2. Avatar Styles

To apply customized styles to the Avatar widget in the CallLogs Widget, you can use the following code snippet. For further insights on Avatar Styles refer

Dart

CometChatCallLogs(
  avatarStyle: AvatarStyle(
      border: Border.all(width: 5),
      borderRadius: 20,
      background: Colors.red
  ),
)

---

3. ListItem Styles

To apply customized styles to the ListItemStyle widget in the CallLogs Widget, you can use the following code snippet. For further insights on ListItemStyle Styles refer

Dart

CometChatCallLogs(
  listItemStyle: ListItemStyle(
      background: Color(0xFFE4EBF5),
      borderRadius: 20,
      border: Border.all(width: 2),
      margin: EdgeInsets.only(top: 10),
      padding: EdgeInsets.only(left: 10)
  ),
)

---

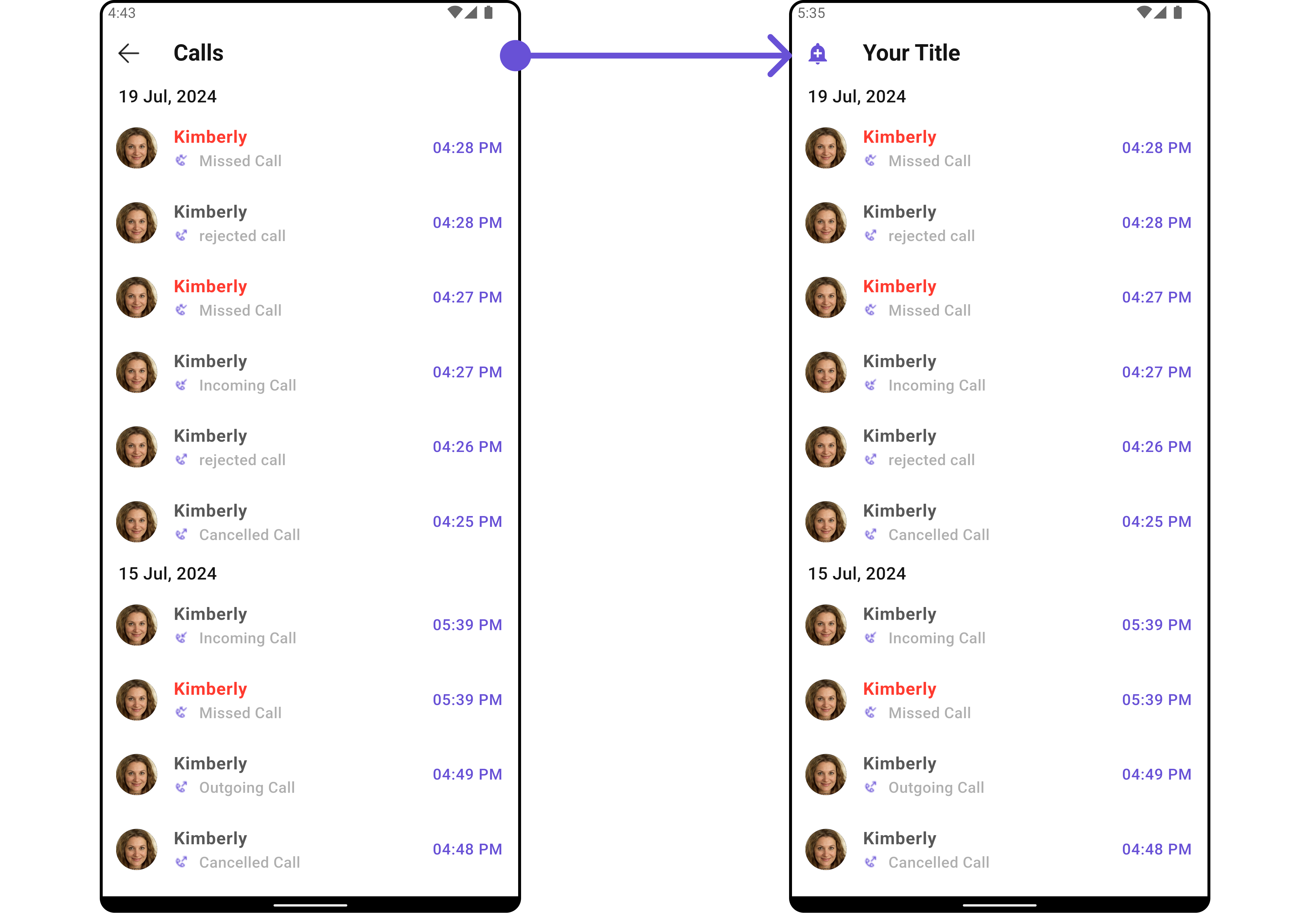

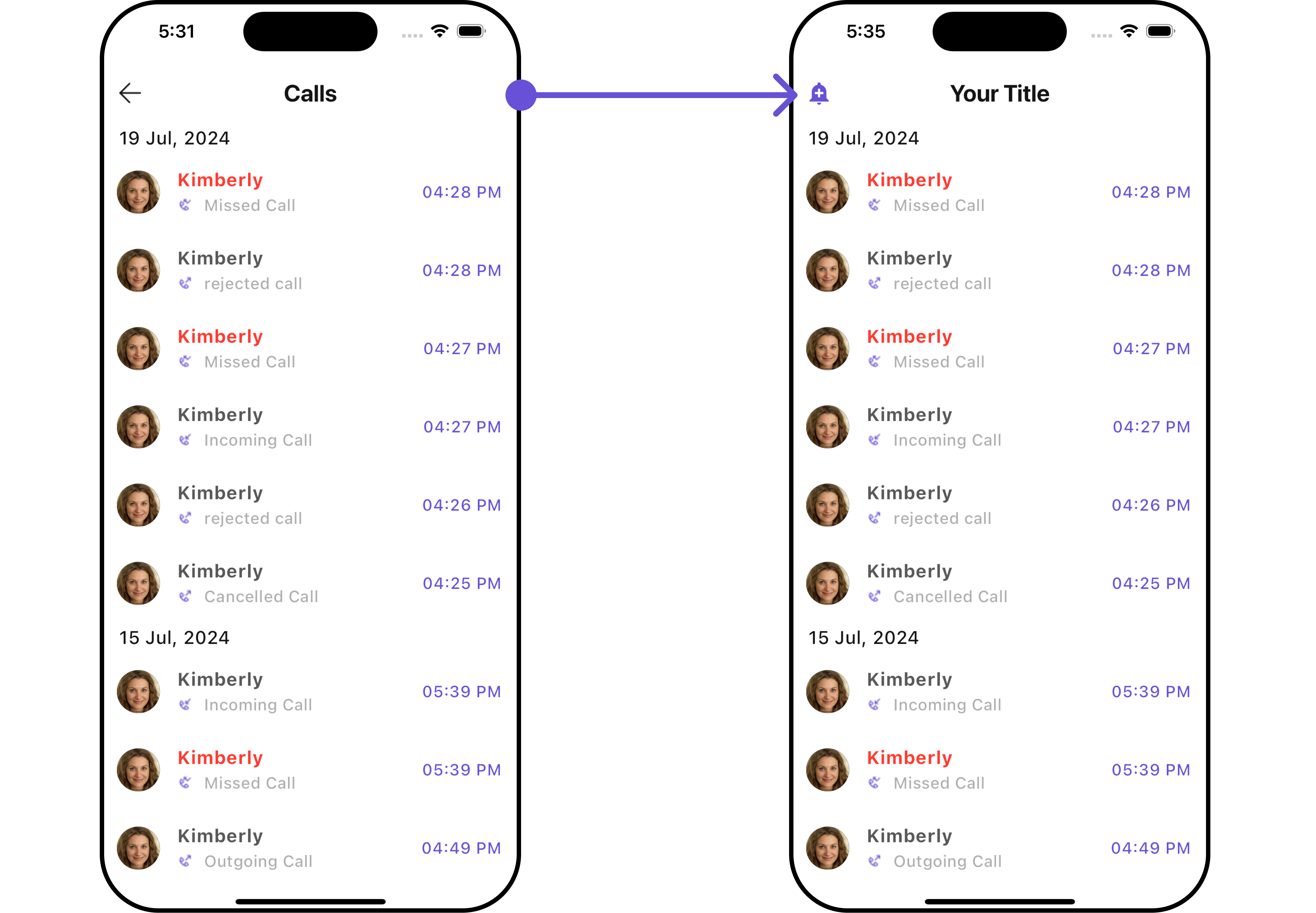

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Dart

CometChatCallLogs(
  title: "Your Title",
  backButton: Icon(Icons.add_alert, color: Color(0xFF6851D6)),
)

Android

iOS

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
Back Button	A widget for the back button.	backButton: Widget?
Call Logs Request Builder	Builder for creating call log requests.	callLogsRequestBuilder: CallLogRequestBuilder?
Date Pattern	Format pattern for date display.	datePattern: String?
Date Separator Pattern	Format pattern for date separator.	dateSeparatorPattern: String?
Empty State Text	Text to display when there are no call logs.	emptyStateText: String?
Error State Text	Text to display when there is an error.	errorStateText: String?
Hide Separator	Whether to hide the separator between call logs.	hideSeparator: bool
Incoming Audio Call Icon	Icon for incoming audio calls.	incomingAudioCallIcon: Icon?
Incoming Video Call Icon	Icon for incoming video calls.	incomingVideoCallIcon: Icon?
Info Icon Url	URL for the info icon.	infoIconUrl: String?
Loading Icon Url	URL for the loading icon.	loadingIconUrl: String?
Missed Audio Call Icon	Icon for missed audio calls.	missedAudioCallIcon: Icon?
Missed Video Call Icon	Icon for missed video calls.	missedVideoCallIcon: Icon?
Outgoing Audio Call Icon	Icon for outgoing audio calls.	outgoingAudioCallIcon: Icon?
Outgoing Video Call Icon	Icon for outgoing video calls.	outgoingVideoCallIcon: Icon?
Show Back Button	Whether to show the back button.	showBackButton: bool?
Title	Title for the call logs section.	title: String?

---

Advanced

For advanced-level customization, you can set custom widgets to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your widgets, layouts, and UI elements and then incorporate those into the widget.

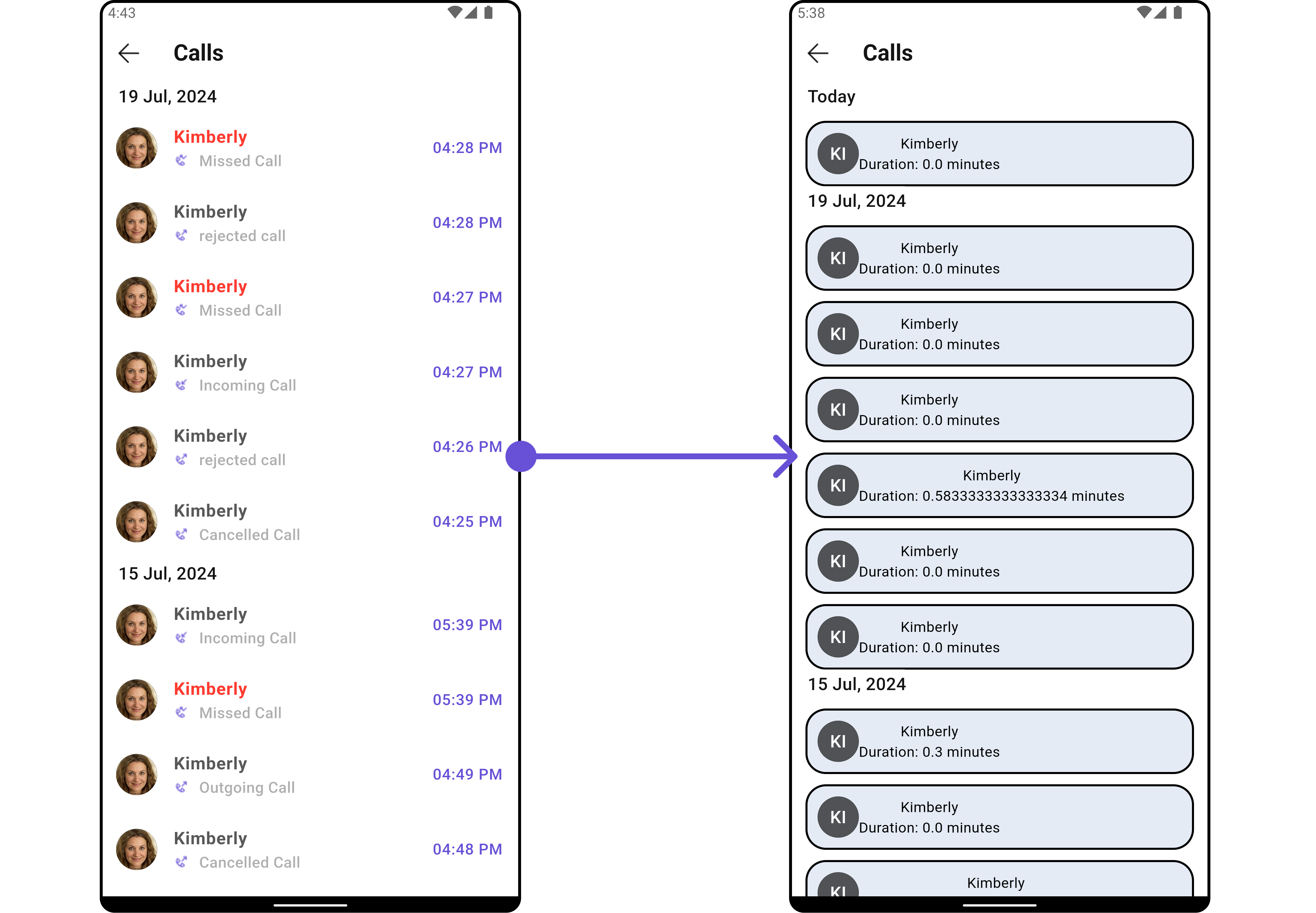

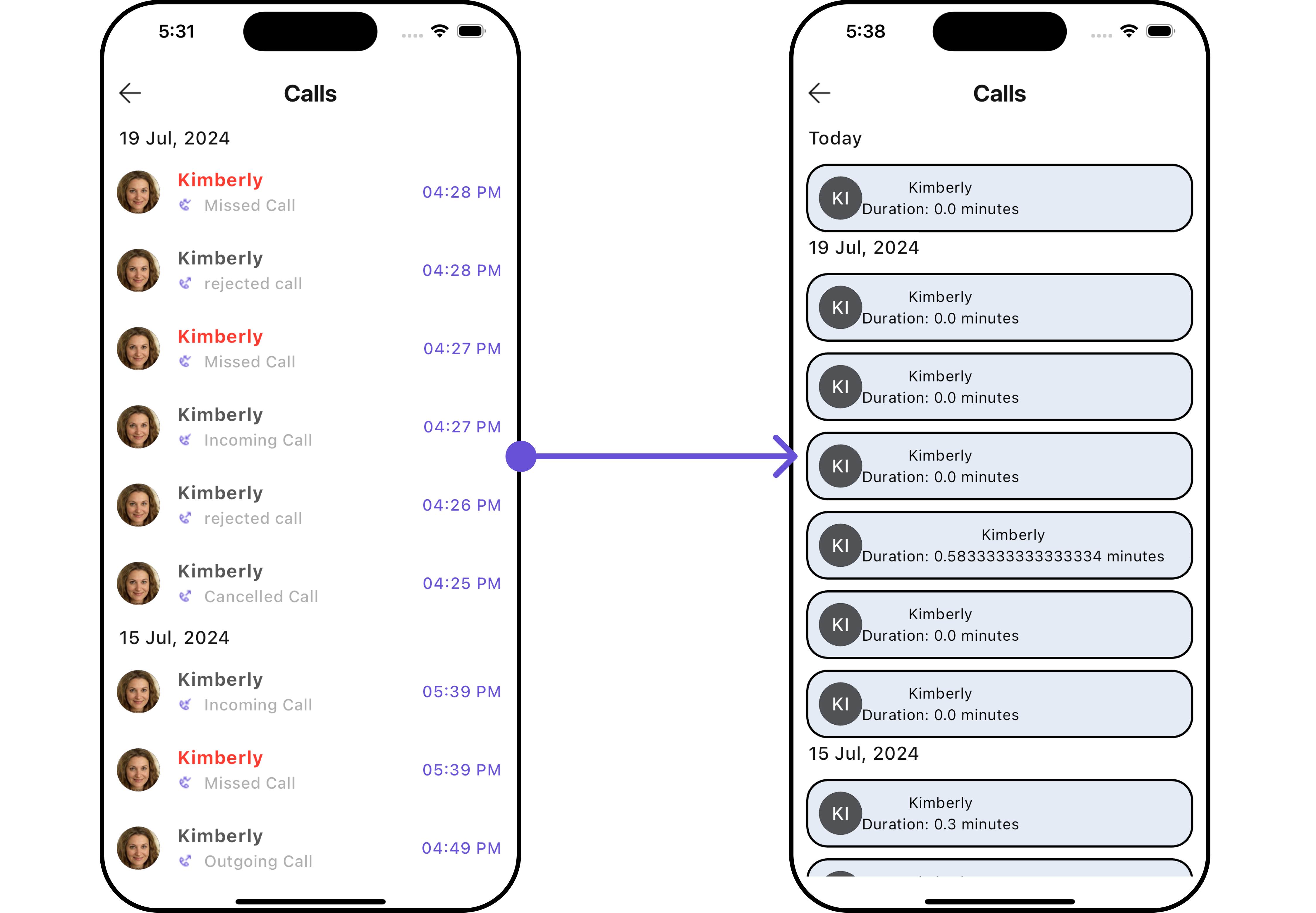

ListItemView

With this property, you can assign a custom ListItem to the Call Logs Widget.

Example

Here is the complete example for reference:

Dart

CometChatCallLogs(
  listItemView: (CallLog callLog, BuildContext context) {
    return Container(
      margin: const EdgeInsets.only(top: 10),
      width: MediaQuery.of(context).size.width/1.2,
      decoration: BoxDecoration(
        color: Color(0xFFE4EBF5),
        borderRadius: BorderRadius.circular(20),
        border: Border.all(width: 2)
      ),
      padding: const EdgeInsets.all(10),
      child: Row(
        crossAxisAlignment: CrossAxisAlignment.center,
        children: [
          CometChatAvatar(
            name: callLog.participants![0].name!,
          ),
          Column(
            children: [
              Text(callLog.participants![0].name!),
              Text("Duration: ${callLog.totalDurationInMinutes} minutes"),
            ],
          )
        ],
      ),
    );
  },
)

Android

iOS

---

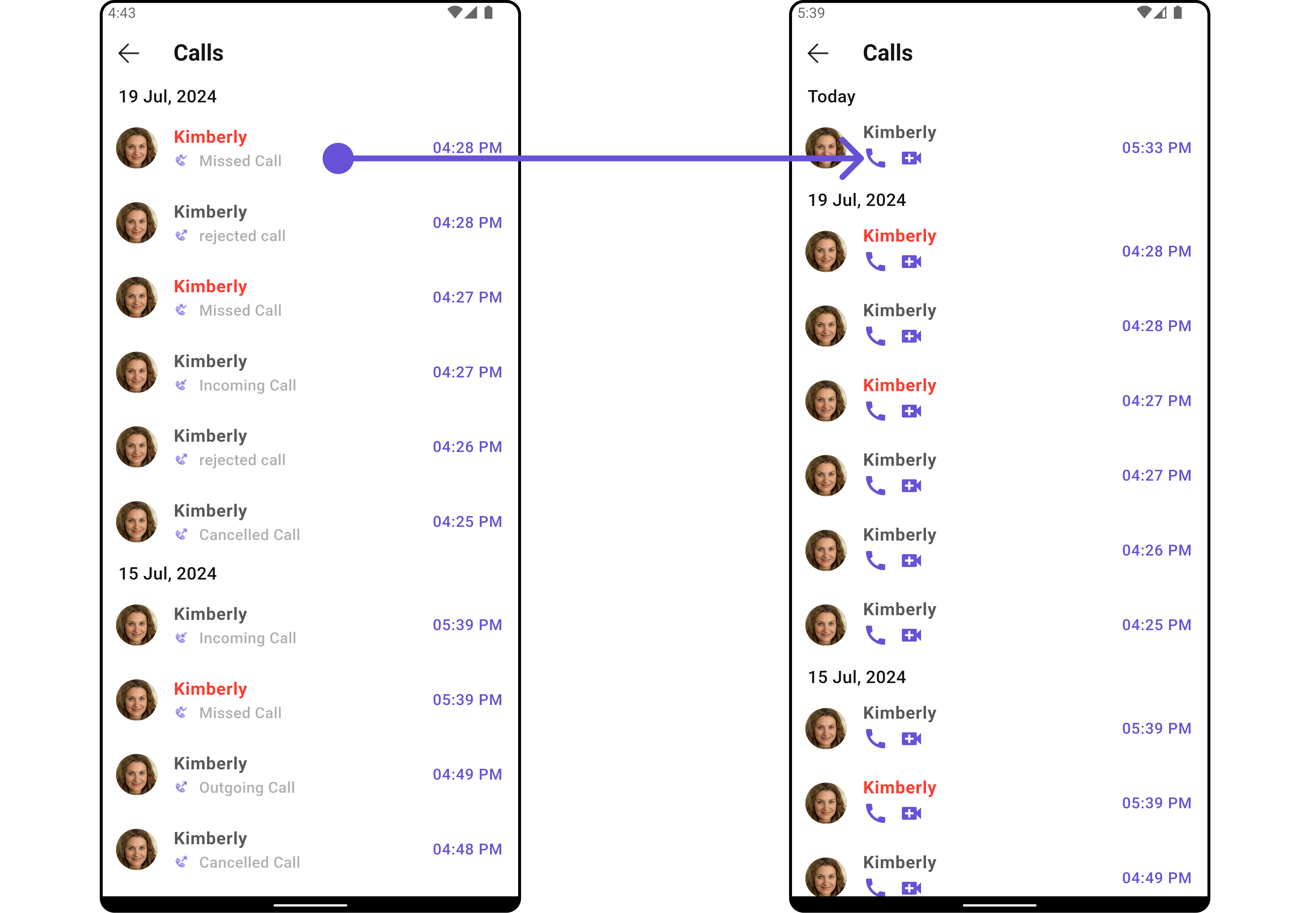

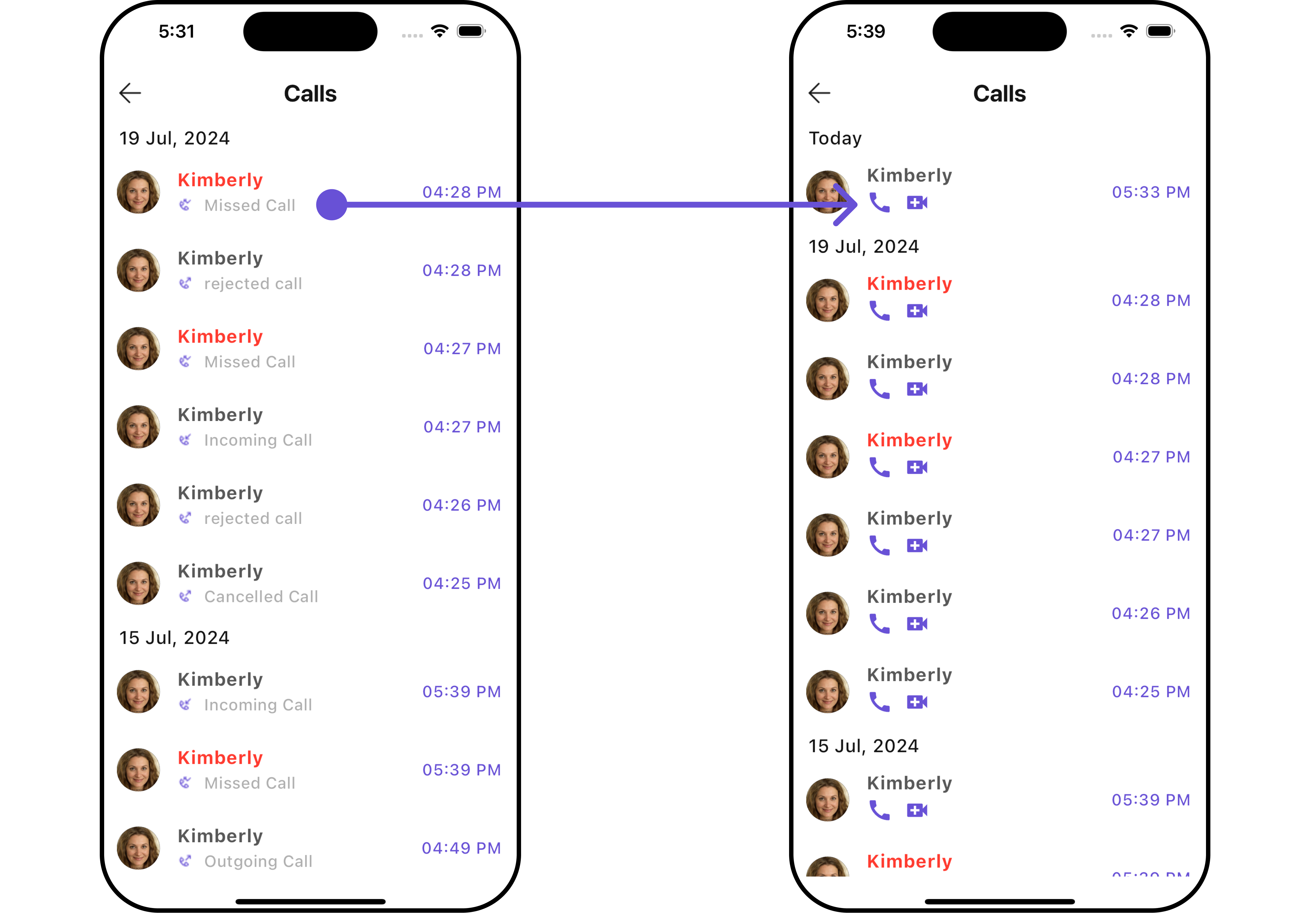

SubtitleView

You can customize the subtitle widget for each call logs item to meet your requirements

Example

Here is the complete example for reference:

Dart

CometChatCallLogs(
  subTitleView: (context, conversation) {
    return const Row(
      children: [
        Icon(Icons.call, color: Color(0xFF6851D6), size: 25,),
        SizedBox(width: 10),
        Icon(Icons.video_call, color: Color(0xFF6851D6), size: 25,),
      ],
    );
  },
)

Android

iOS

---

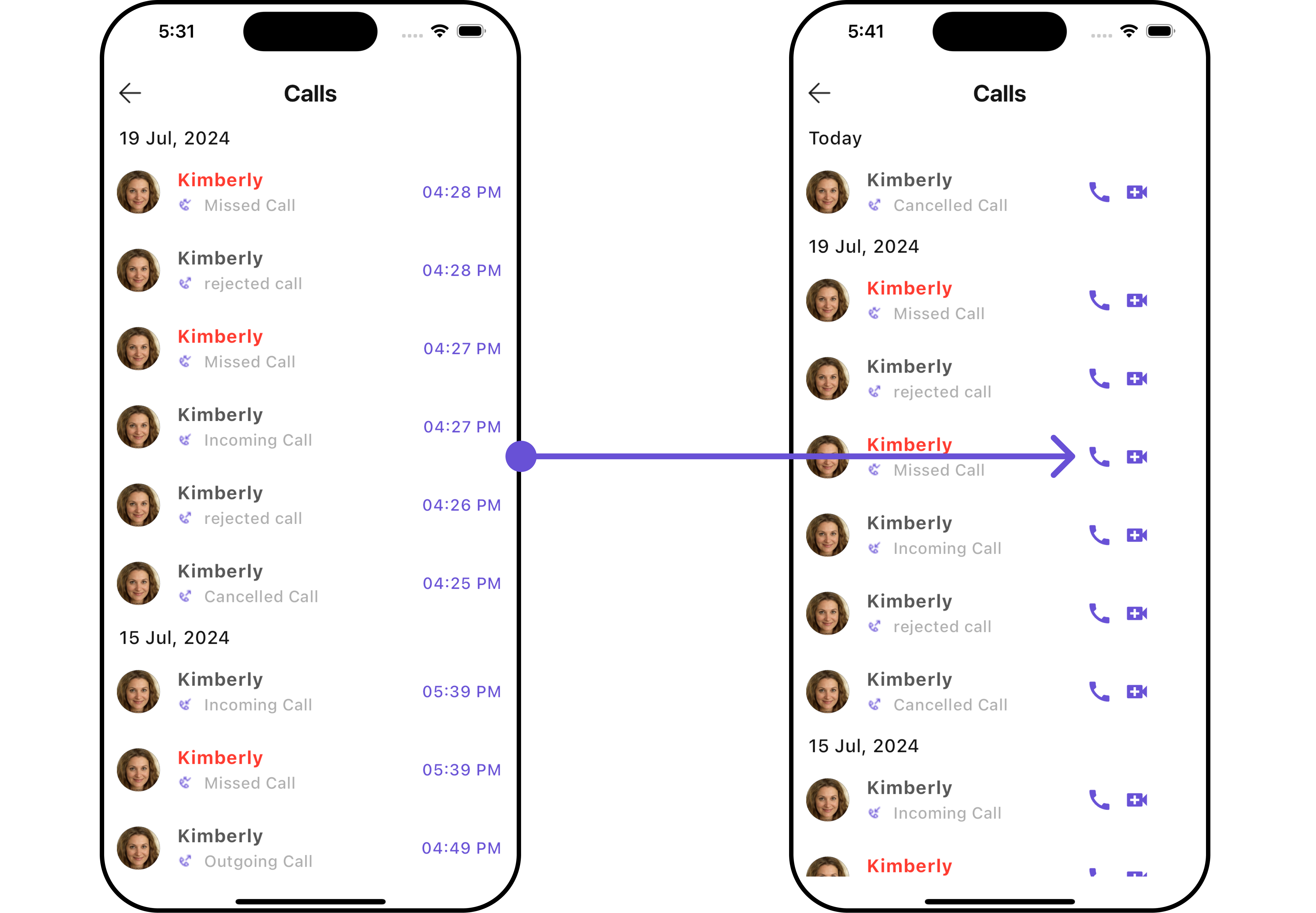

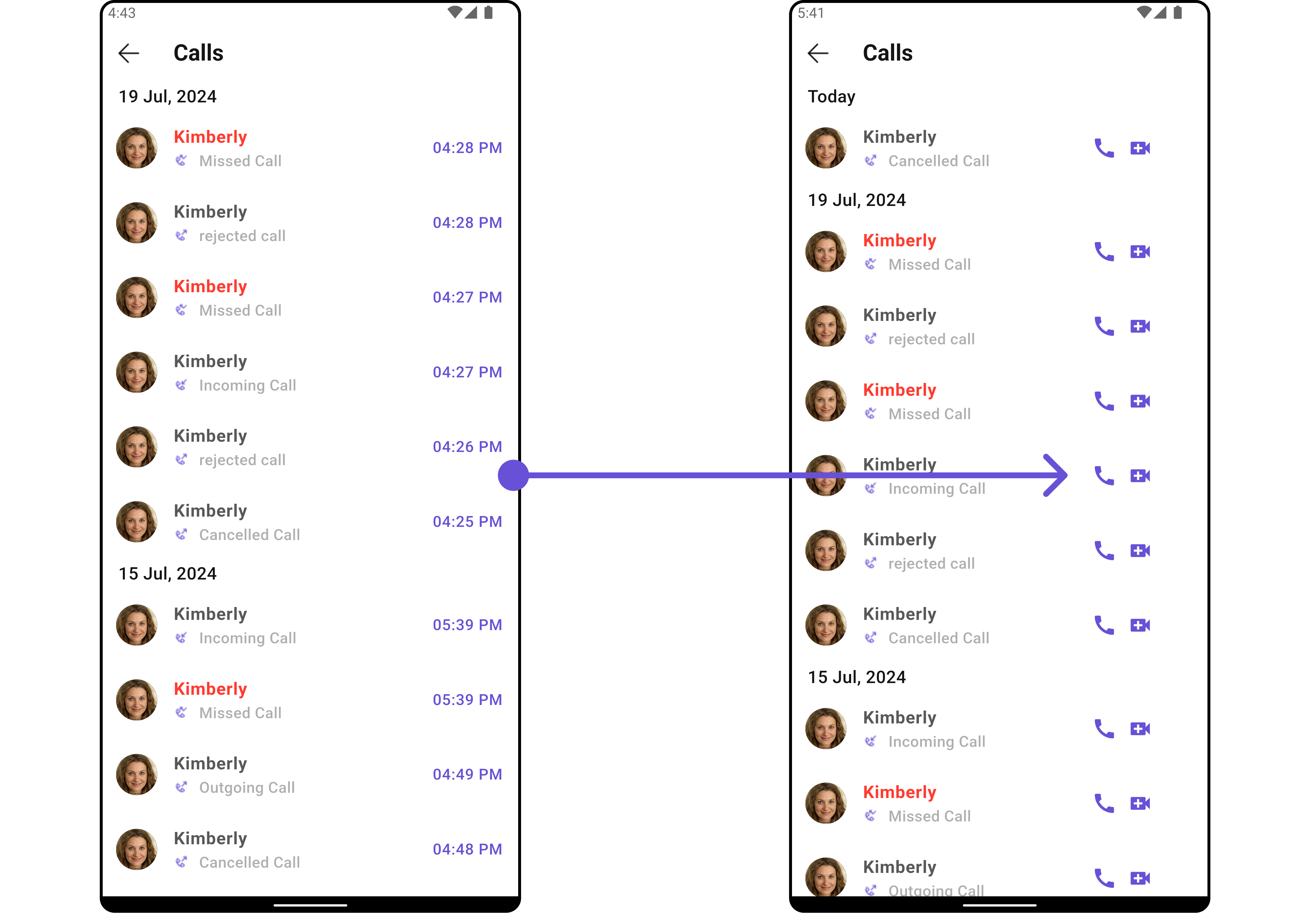

TailView

You can customize the tail widget for each call logs item to meet your requirements

Example

Here is the complete example for reference:

Dart

CometChatCallLogs(
  tailView: (BuildContext context, CallLog callLog) {
    return SizedBox(
      width: 100,
      child: const Row(
        children: [
          Icon(Icons.call, color: Color(0xFF6851D6), size: 25,),
          SizedBox(width: 10),
          Icon(Icons.video_call, color: Color(0xFF6851D6), size: 25,),
        ],
      ),
    ); // Replaced the placeholder with a custom widget.
  },
)

Android

iOS

---

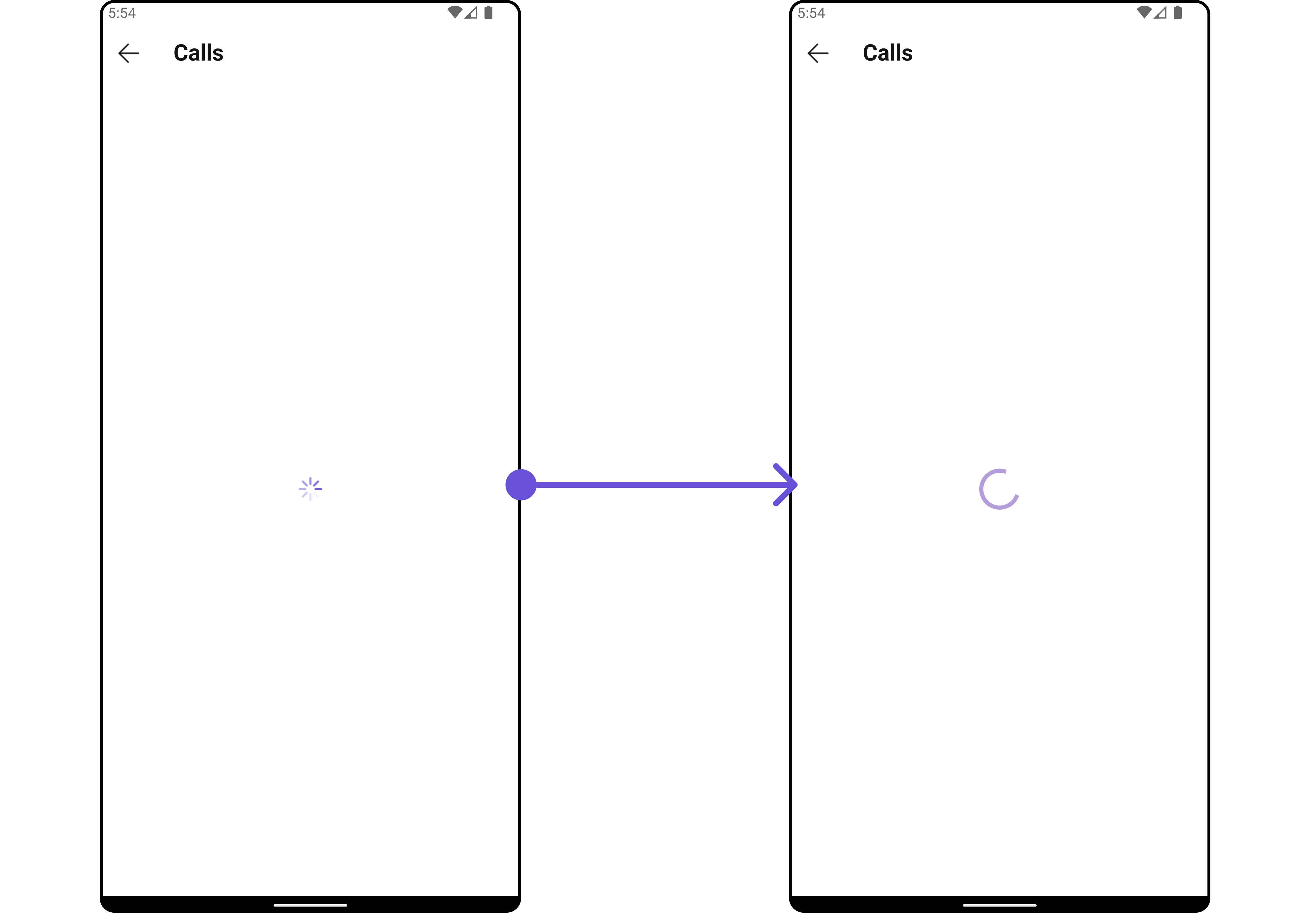

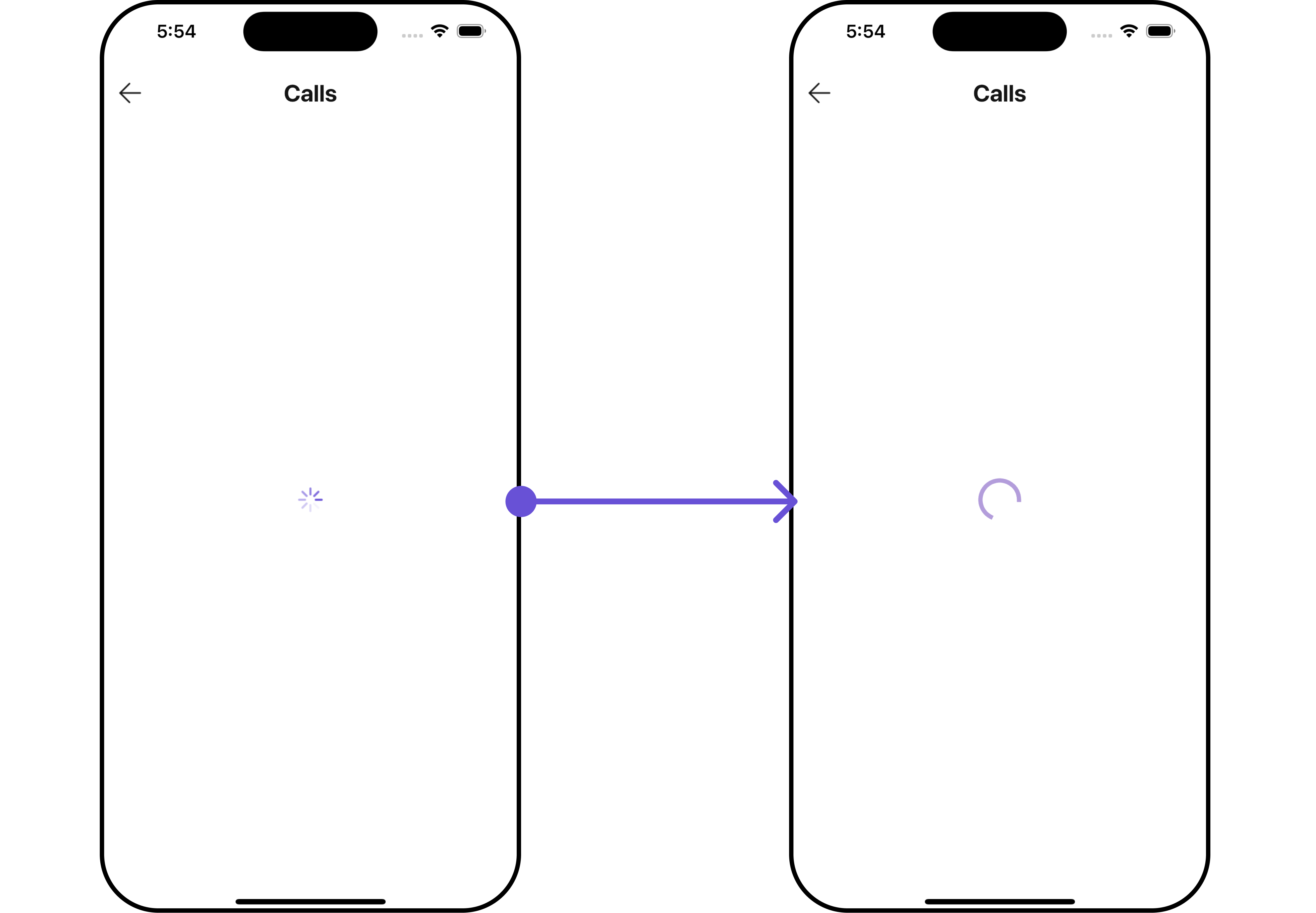

LoadingStateView

You can set a custom loader widget using loadingStateView to match the loading widget of your app.

Example

Here is the complete example for reference:

Dart

CometChatCallLogs(
  loadingStateView: (context) {
    return SizedBox(
      width: MediaQuery.of(context).size.width,
      child: const Center(
          child: CircularProgressIndicator()
      ),
    );
  },
)

Android

iOS

---

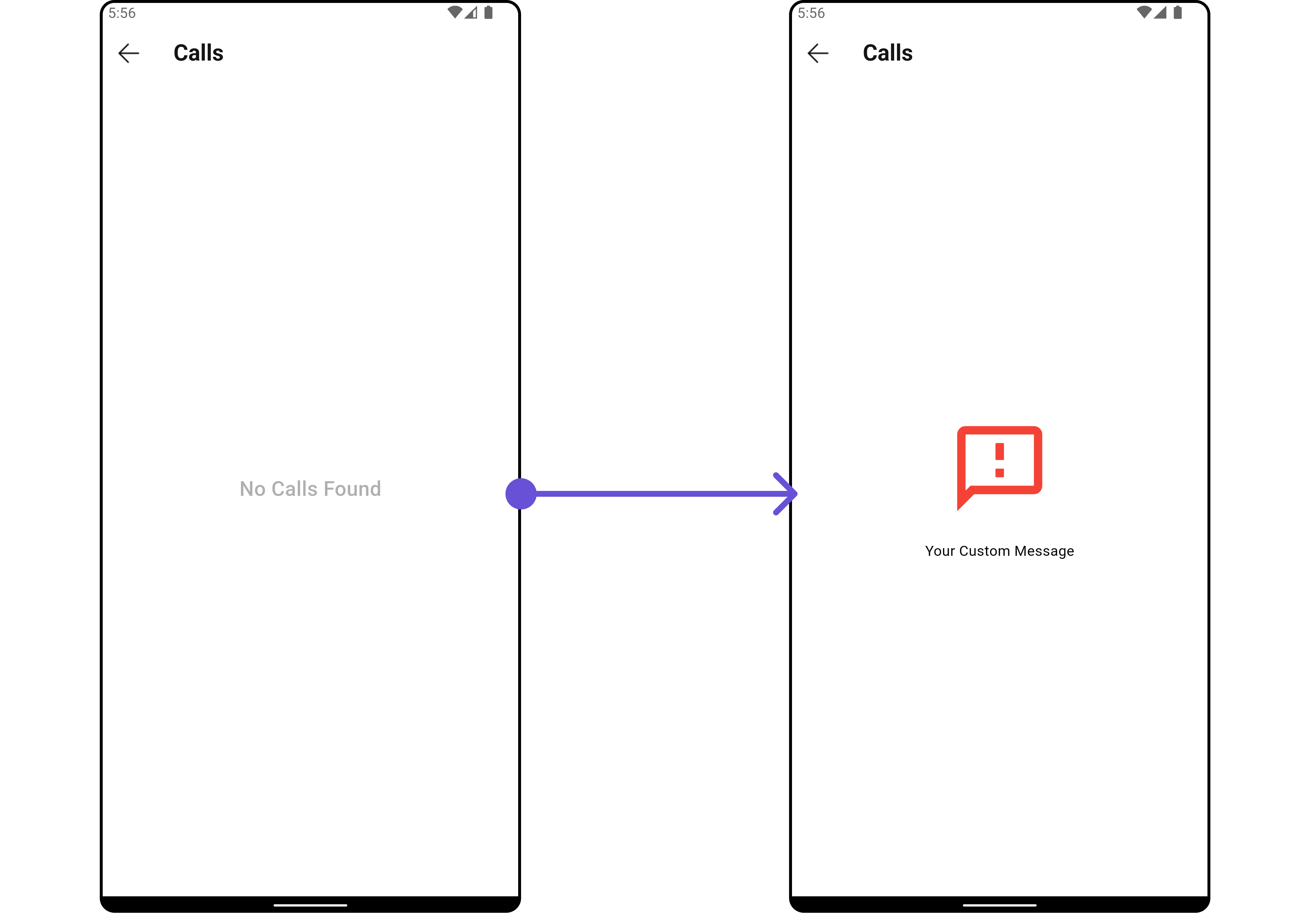

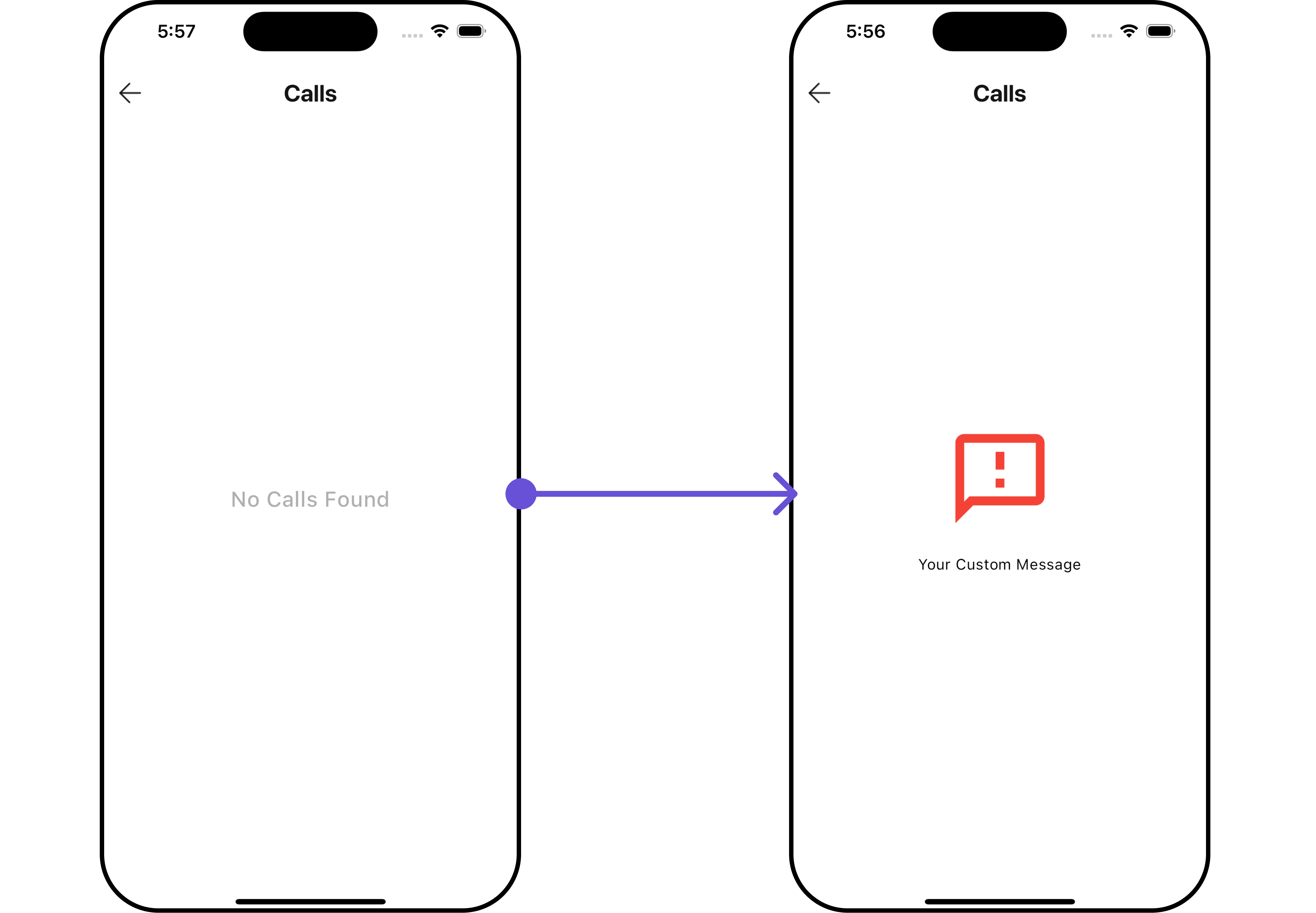

EmptyStateView

You can set a custom EmptyStateView using emptyStateView to match the empty widget of your app.

Example

Here is the complete example for reference:

Dart

CometChatCallLogs(
  emptyStateView: (context) {
    return SizedBox(
      width: MediaQuery.of(context).size.width,
      child: const Center(
          child: Column(
            crossAxisAlignment: CrossAxisAlignment.center,
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              Spacer(),
              Icon(Icons.sms_failed_outlined, color: Colors.red, size: 100,),
              SizedBox(height: 20,),
              Text("Your Custom Message"),
              Spacer(),
            ],
          )
      ),
    );
  },
)

Android

iOS

---

ErrorStateView

You can set a custom ErrorStateView using errorStateView to match the error widget of your app.

Example

Here is the complete example for reference:

Dart

CometChatCallLogs(
  errorStateView: (context) {
    return SizedBox(
      width: MediaQuery.of(context).size.width,
      child: const Center(
        child: Column(
          crossAxisAlignment: CrossAxisAlignment.center,
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Spacer(),
            Icon(Icons.error_outline, color: Colors.red, size: 100,),
            SizedBox(height: 20,),
            Text("Your Custom Error Message"),
            Spacer(),
          ],
        ),
      ),
    );
  },
)

---

Configurations

Configurations offer the ability to customize the properties of each widget within a Composite Widget.

CometChatCallLogs has CometChatOutgoingCall widget. Hence, each of these widgets will have its individual `Configuration“.

• Configurations expose properties that are available in its individual widgets.

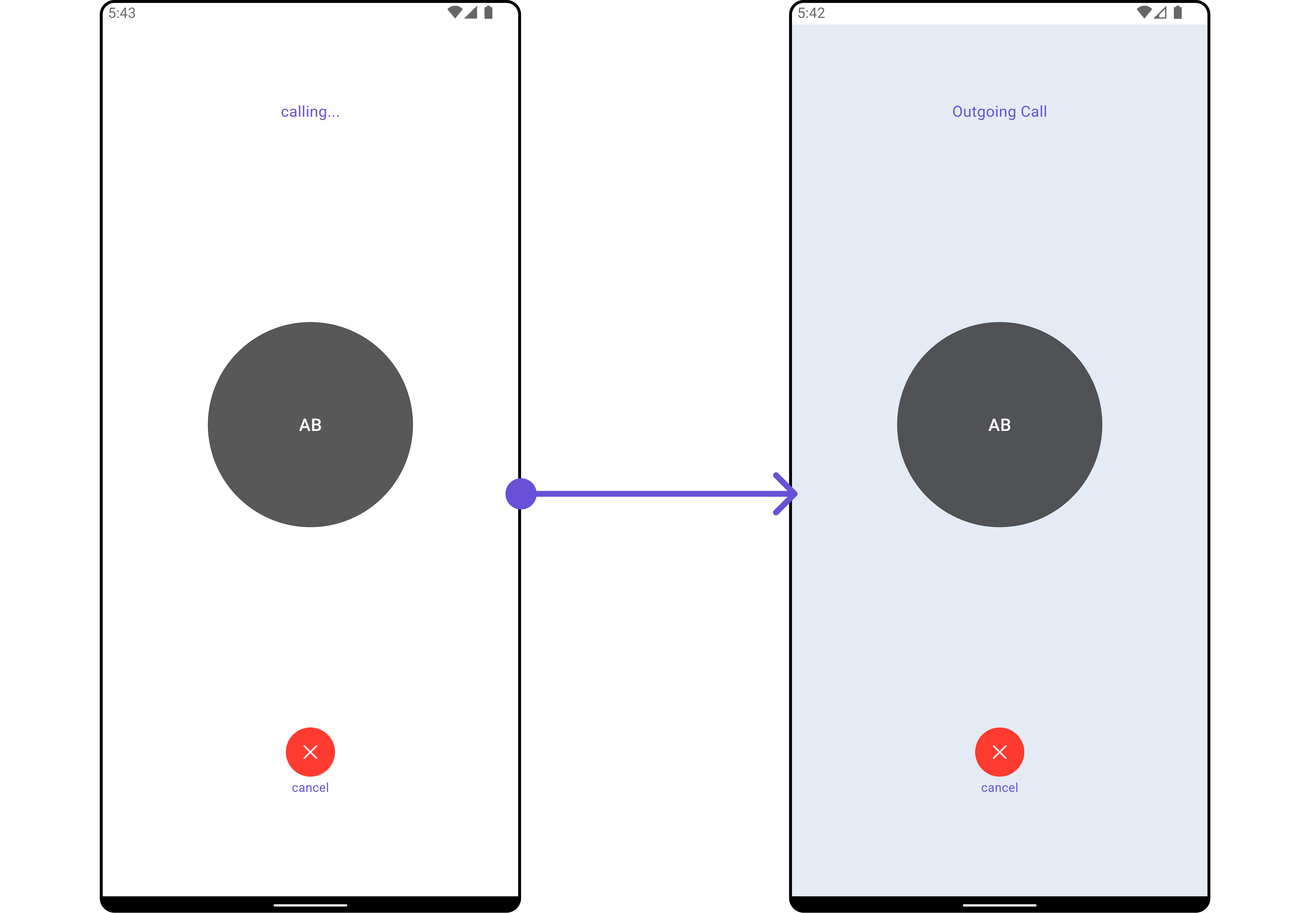

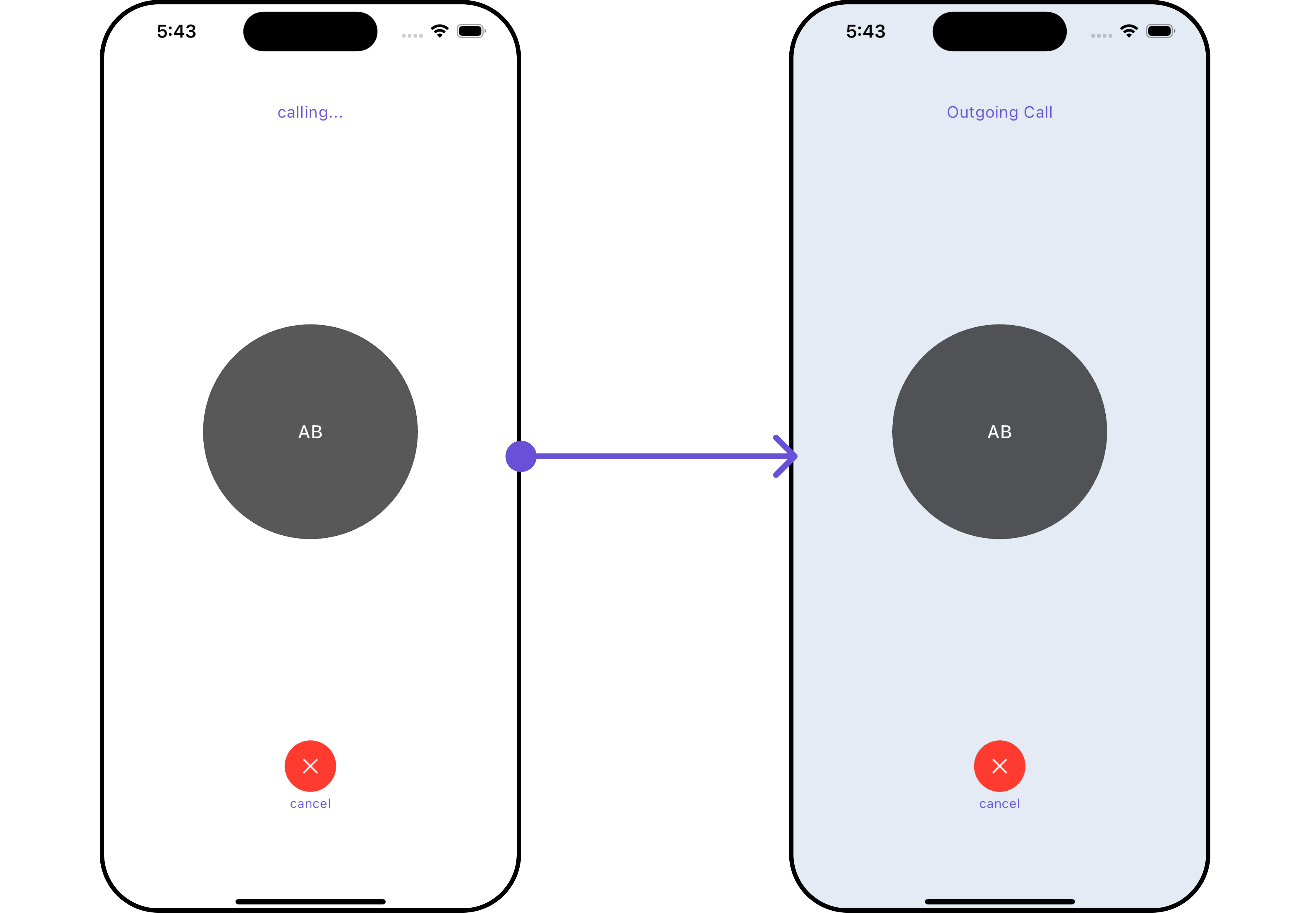

Outgoing Call

You can customize the properties of the OutGoing Call widget by making use of the OutgoingCallConfiguration. You can accomplish this by employing the outgoingCallConfiguration props as demonstrated below:

Example

Here is the complete example for reference:

Dart

CometChatCallLogs(
  outgoingCallConfiguration: OutgoingCallConfiguration(
    subtitle: "Outgoing Call",
    outgoingCallStyle: OutgoingCallStyle(
      background: Color(0xFFE4EBF5),
    )
  ),
)

Android

iOS

All exposed properties of OutgoingCallConfiguration can be found under OutGoing Call. Properties marked with the 🛑 symbol are not accessible within the Configuration Object.

---
