Overview

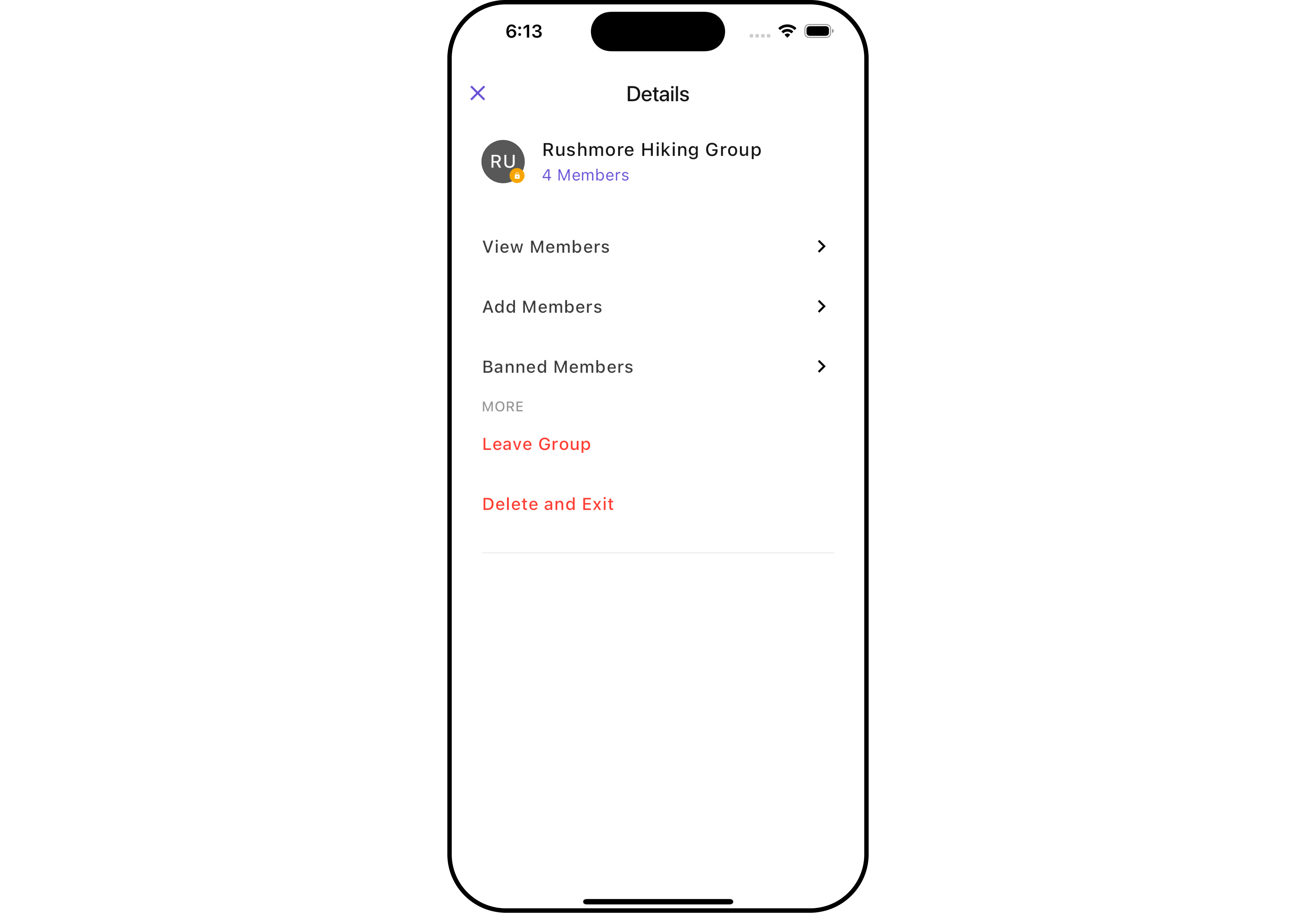

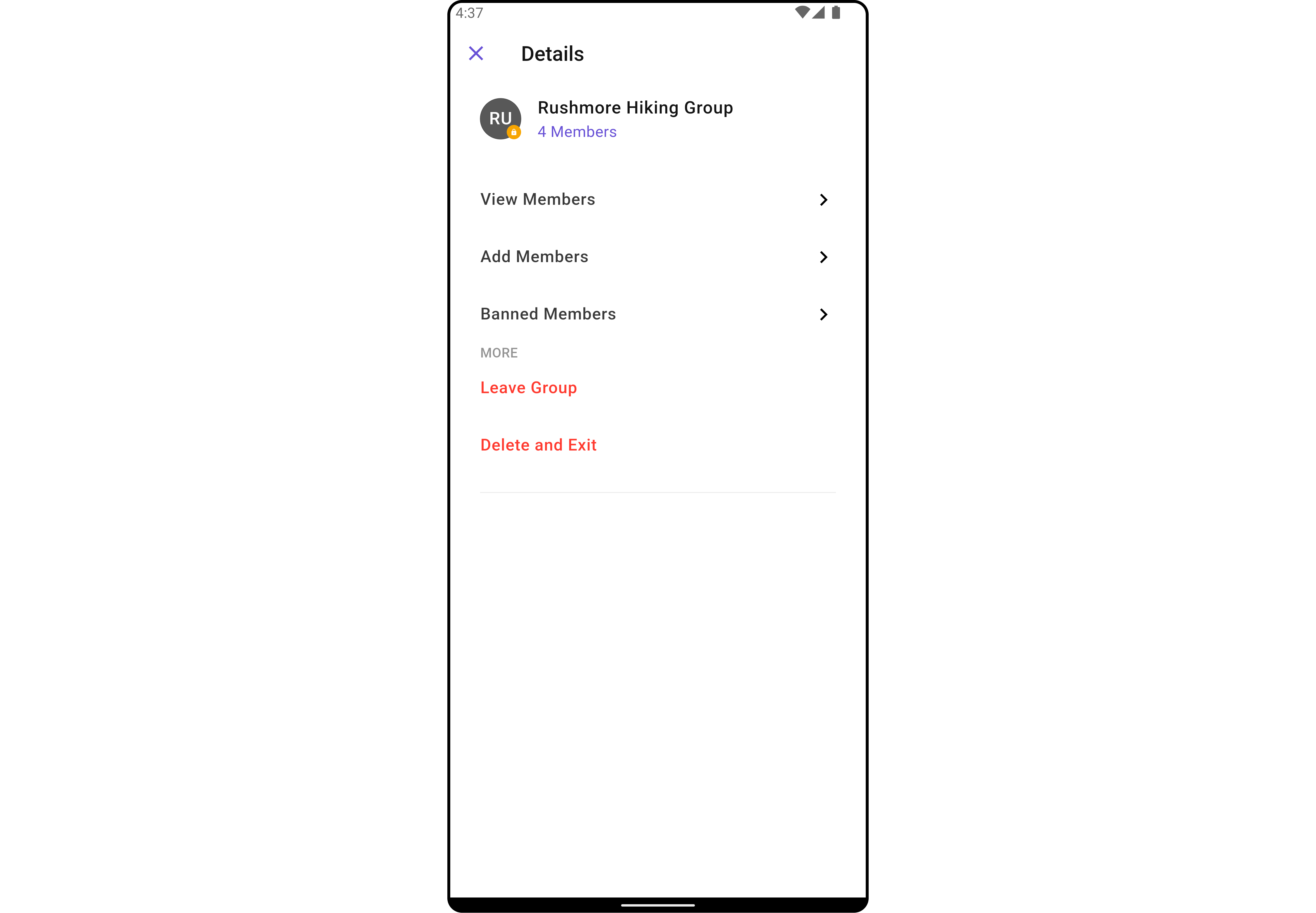

CometChatDetails is a Composite Widget that provides additional information and settings related to a specific group.

The details screen includes the following elements and functionalities:

1. Group Information: It displays details about the user. This includes his/her profile picture, name, status, and other relevant information.
2. Group Chat Features: It provides additional functionalities for managing the group. This includes options to add or remove participants, assign roles or permissions, and view group-related information.
3. Group Actions: This offers actions related to the group, such as leaving the group, or deleting the group.

Android

iOS

The CometChatDetails Widget is composed of the following BaseWidgets:

Widgets	Description
CometChatListBase	CometChatListBase serves as a container widget equipped with a title (navigationBar), search functionality (search-bar), background settings, and a container for embedding a list view.

---

Usage

Integration

CometChatDetails, as a widget, offers flexible integration options, allowing it to be launched directly via button clicks or any user-triggered action. Additionally, it seamlessly integrates into tab view controllers. With banned members, users gain access to a wide range of parameters and methods for effortless customization of its user interface.

You can launch CometChatDetails directly using Navigator.push , or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch CometChatDetails

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => CometChatDetails(group: Group(guid: "", name: "", membersCount: 0, type: "")))); // A group object is required to launch this widget.

2. Embedding CometChatDetails as a Widget in the build Method

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class GroupDetails extends StatefulWidget {
  const GroupDetails({super.key});

  @override
  State<GroupDetails> createState() => _GroupDetailsState();
}

class _GroupDetailsState extends State<GroupDetails> {

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        body: SafeArea(
            child: CometChatDetails(
              group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
            ) // A group object is required to launch this widget.
        )
    );
  }
}

---

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

1. onBack

Enhance your application’s functionality by leveraging the onBack feature. This capability allows you to customize the behavior associated with navigating back within your app. Utilize the provided code snippet to override default behaviors and tailor the user experience according to your specific requirements.

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  onBack: () {
    // TODO("Not yet implemented")
  },
)

---

2. onError

You can customize this behavior by using the provided code snippet to override the onError and improve error handling.

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  onError: (e) {
    // TODO("Not yet implemented")
  },
)

---

Filters

Filters allow you to customize the data displayed in a list within a Widget. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

CometChatDetails widget does not have available filters.

---

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

Events emitted by the Group Details widget is as follows.

Events	Description
ccGroupDeleted()	This will get triggered when the logged in user deletes a group
ccGroupLeft()	This will get triggered when the logged in user leaves a group
ccGroupMemberScopeChanged()	This will get triggered when the logged in user changes the scope of another group member
ccGroupMemberBanned()	This will get triggered when the logged in user bans a group member from the group
ccGroupMemberKicked()	This will get triggered when the logged in user kicks another group member from the group
ccGroupMemberUnbanned()	This will get triggered when the logged in user unbans a user banned from the group
ccGroupMemberJoined()	This will get triggered when the logged in user joins a group
ccGroupMemberAdded()	This will get triggered when the logged in user add new members to the group
ccOwnershipChanged	This will get triggered when the logged in user transfer the ownership of their group to some other member

Example

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:cometchat_sdk/models/action.dart' as cc;
import 'package:flutter/material.dart';

class YourScreen extends StatefulWidget {
  const YourScreen({super.key});

  @override
  State<YourScreen> createState() => _YourScreenState();
}

class _YourScreenState extends State<YourScreen> with CometChatGroupEventListener {

  @override
  void initState() {
    super.initState();
    CometChatGroupEvents.addGroupsListener("listenerId", this); // Add the listener
  }

  @override
  void dispose(){
    super.dispose();
    CometChatGroupEvents.removeGroupsListener("listenerId"); // Remove the listener
  }

  @override
  void ccGroupDeleted(Group group) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupLeft(cc.Action message, User leftUser, Group leftGroup) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberScopeChanged(cc.Action message, User updatedUser, String scopeChangedTo, String scopeChangedFrom, Group group) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberBanned(cc.Action message, User bannedUser, User bannedBy, Group bannedFrom) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberKicked(cc.Action message, User kickedUser, User kickedBy, Group kickedFrom) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberUnbanned(cc.Action message, User unbannedUser, User unbannedBy, Group unbannedFrom) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberJoined(User joinedUser, Group joinedGroup) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberAdded(List<cc.Action> messages, List<User> usersAdded, Group groupAddedIn, User addedBy) {
    // TODO("Not yet implemented")
  }

  @override
  void ccOwnershipChanged(Group group, GroupMember newOwner) {
    // TODO("Not yet implemented")
  }

  @override
  Widget build(BuildContext context) {
    return const Placeholder();
  }

}

---

Customization

To fit your app’s design requirements, you can customize the appearance of the Details widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

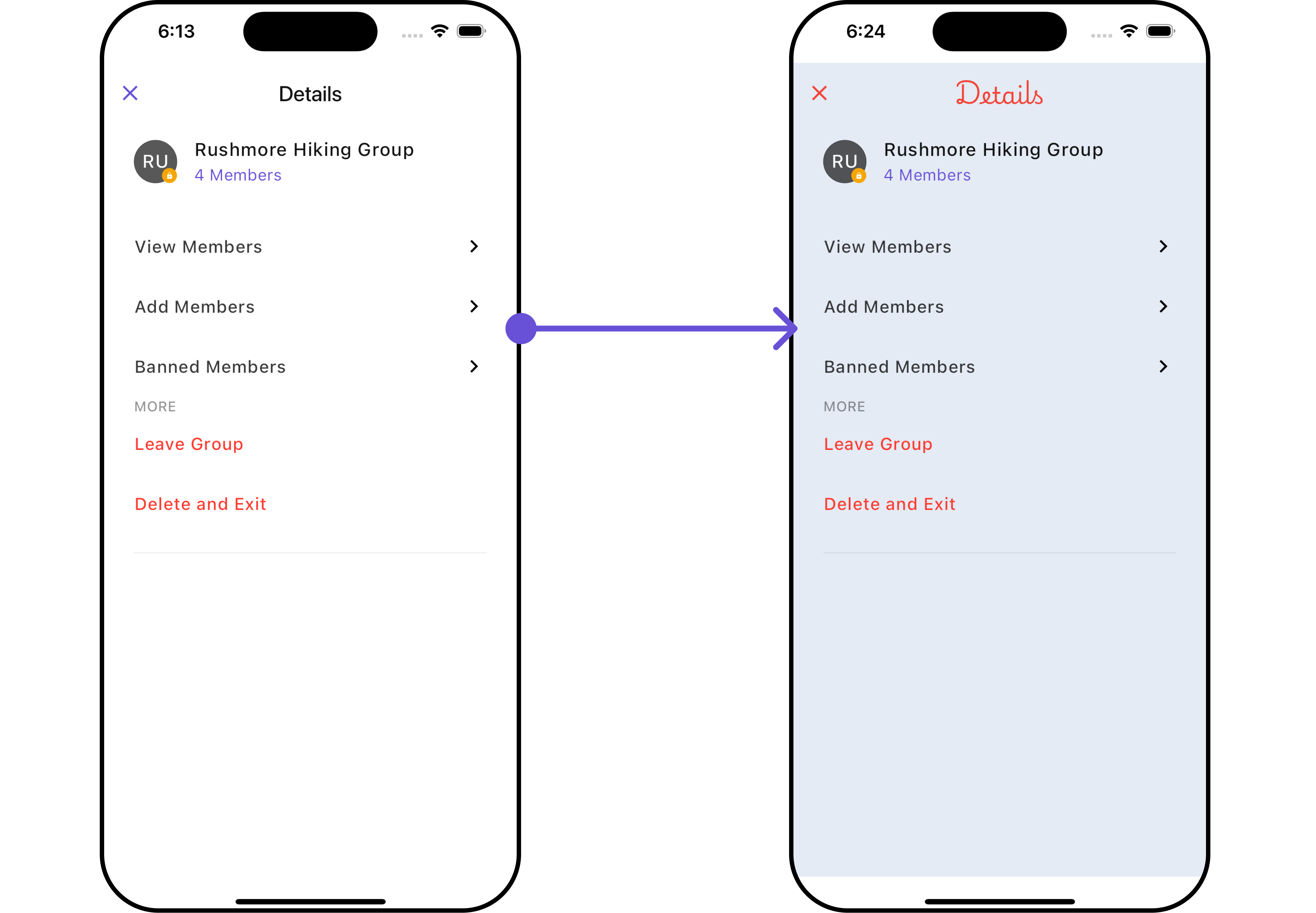

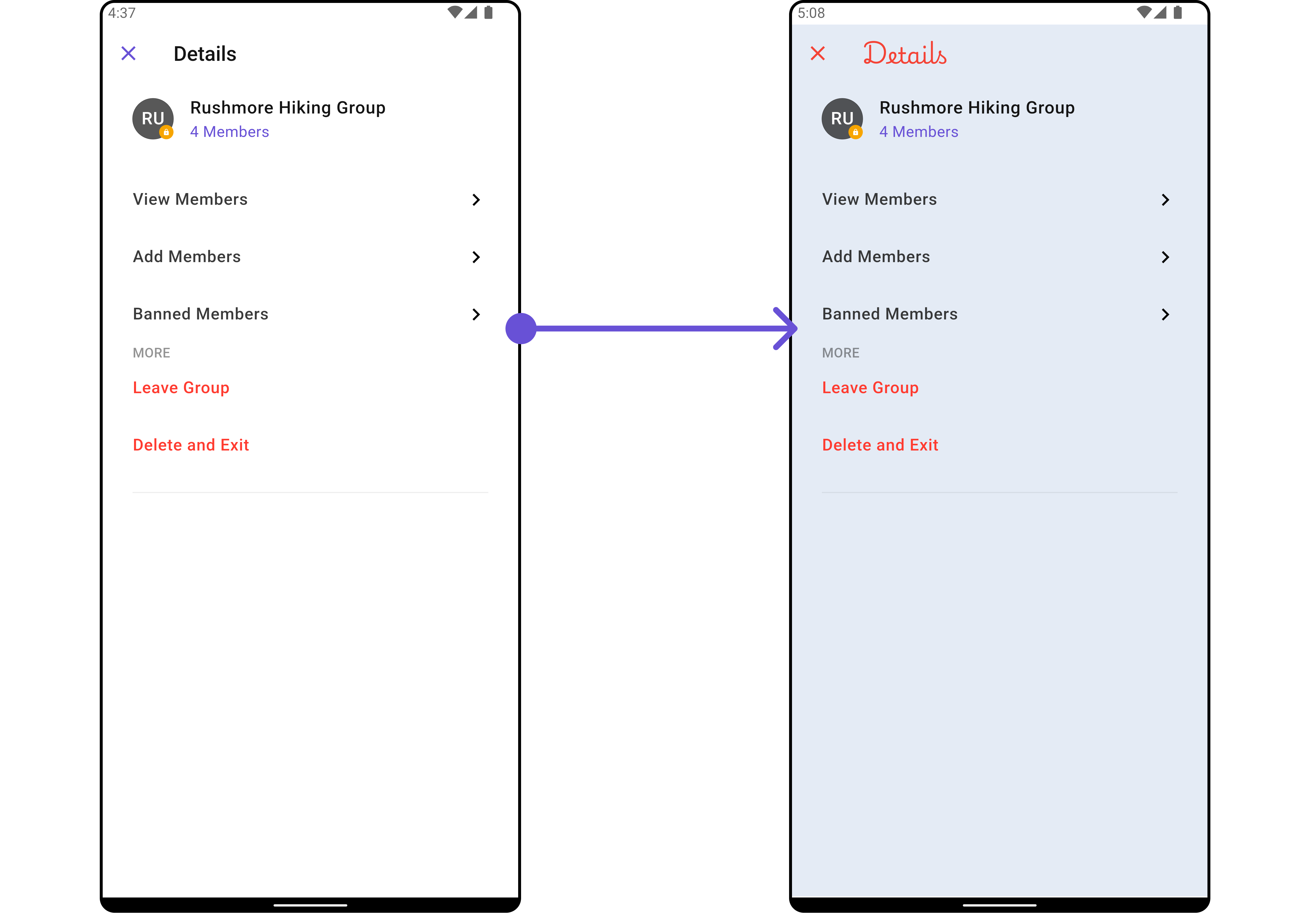

1. Details Style

You can set the DetailsStyle to the CometChatDetails Widget to customize the styling.

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  detailsStyle: DetailsStyle(
    background: Color(0xFFE4EBF5),
    titleStyle: TextStyle(color: Colors.red, fontFamily: "PlaywritePL"),
    closeIconTint: Colors.red,
    privateGroupIconBackground: Colors.red,
  ),
)

Android

iOS

List of properties exposed by DetailsStyle

Property	Description	Code
Title Style	Provides styling for title text	titleStyle: TextStyle?
Close Icon Tint	Provide color to close button	closeIconTint: Color?
Private Group Icon Background	Provides background color for status indicator if group is private	privateGroupIconBackground: Color?
Protected Group Icon Background	Provides background color for status indicator if group is protected	protectedGroupIconBackground: Color?
Online Status Color	Set online status color	onlineStatusColor: Color?
Width	Width of the widget	width: double?
Height	Height of the widget	height: double?
Background	Background color of the widget	background: Color?
Gradient	Gradient of the widget	gradient: Gradient?
Border	Border of the widget	border: Border?

---

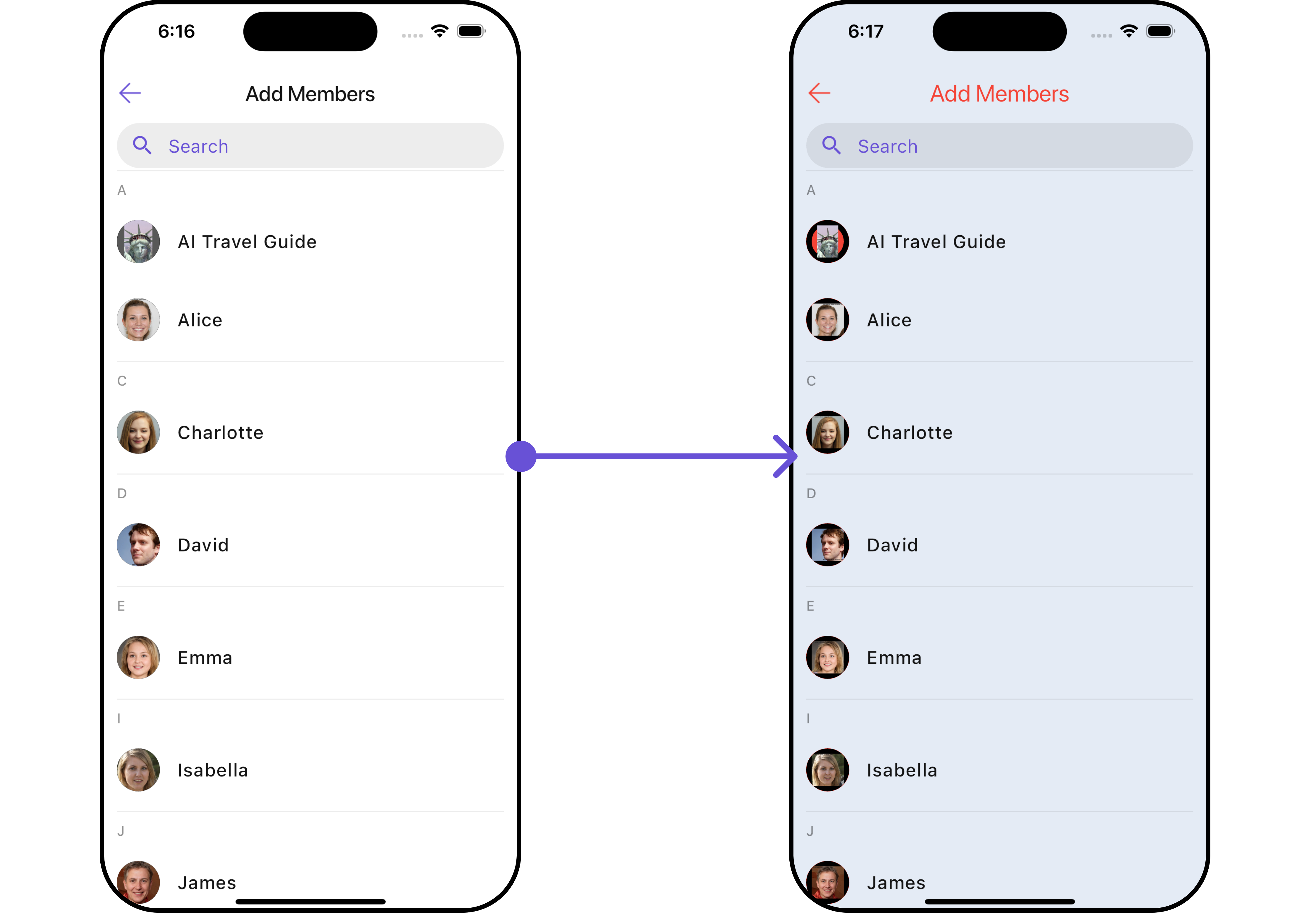

2. Avatar Style

To apply customized styles to the Avatar widget in the Group Members Widget, you can use the following code snippet. For further insights on Avatar Styles refer

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  avatarStyle: AvatarStyle(
      border: Border.all(width: 5),
      borderRadius: 20,
      background: Colors.red
  ),
)

---

3. StatusIndicator Style

To apply customized styles to the Status Indicator widget in the Group Member Widget, You can use the following code snippet. For further insights on Status Indicator Styles refer

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  statusIndicatorStyle: StatusIndicatorStyle(
      borderRadius: 10,
      gradient: LinearGradient(colors: [Colors.red, Colors.orange], begin: Alignment.topLeft, end: Alignment.bottomRight)
  ),
)

---

4. ListItem Style

To apply customized styles to the ListItem widget in the CometChatDetails widget, you can use the following code snippet. For further insights on List Item Styles refer

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  listItemStyle: ListItemStyle(
      background: Color(0xFFE4EBF5),
      borderRadius: 20,
      border: Border.all(width: 2),
      margin: EdgeInsets.only(top: 10),
      padding: EdgeInsets.only(left: 10)
  ),
)

---

5. LeaveGroupDialog Style

To apply customized styles to the Leave Group Dialog in the CometChatDetails Widget, you can use the following code snippet.

Dart

CometChatDetails(
  group: Group(guid: "group__1715256001347", name: "Rushmore Hiking Group", membersCount: 4, type: ""), // A group object is required to launch this widget.
  leaveGroupDialogStyle: ConfirmDialogStyle(
    backgroundColor: Color(0xFFE4EBF5),
    shadowColor: Color(0xFFE4EBF5),
    confirmButtonTextStyle: TextStyle(color: Color(0xFF6851D6), fontFamily: "PlaywritePL"),
  ),
)

---

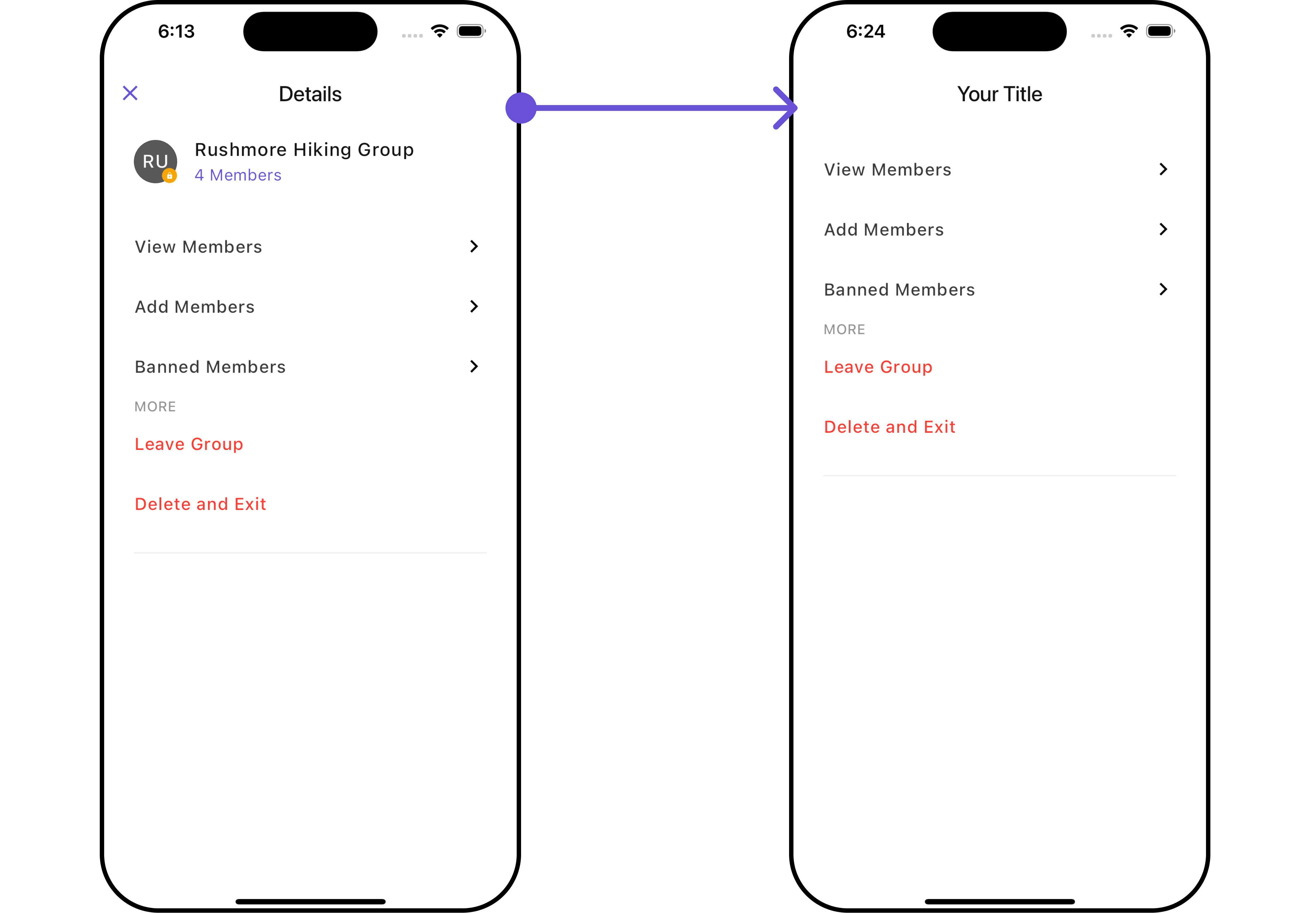

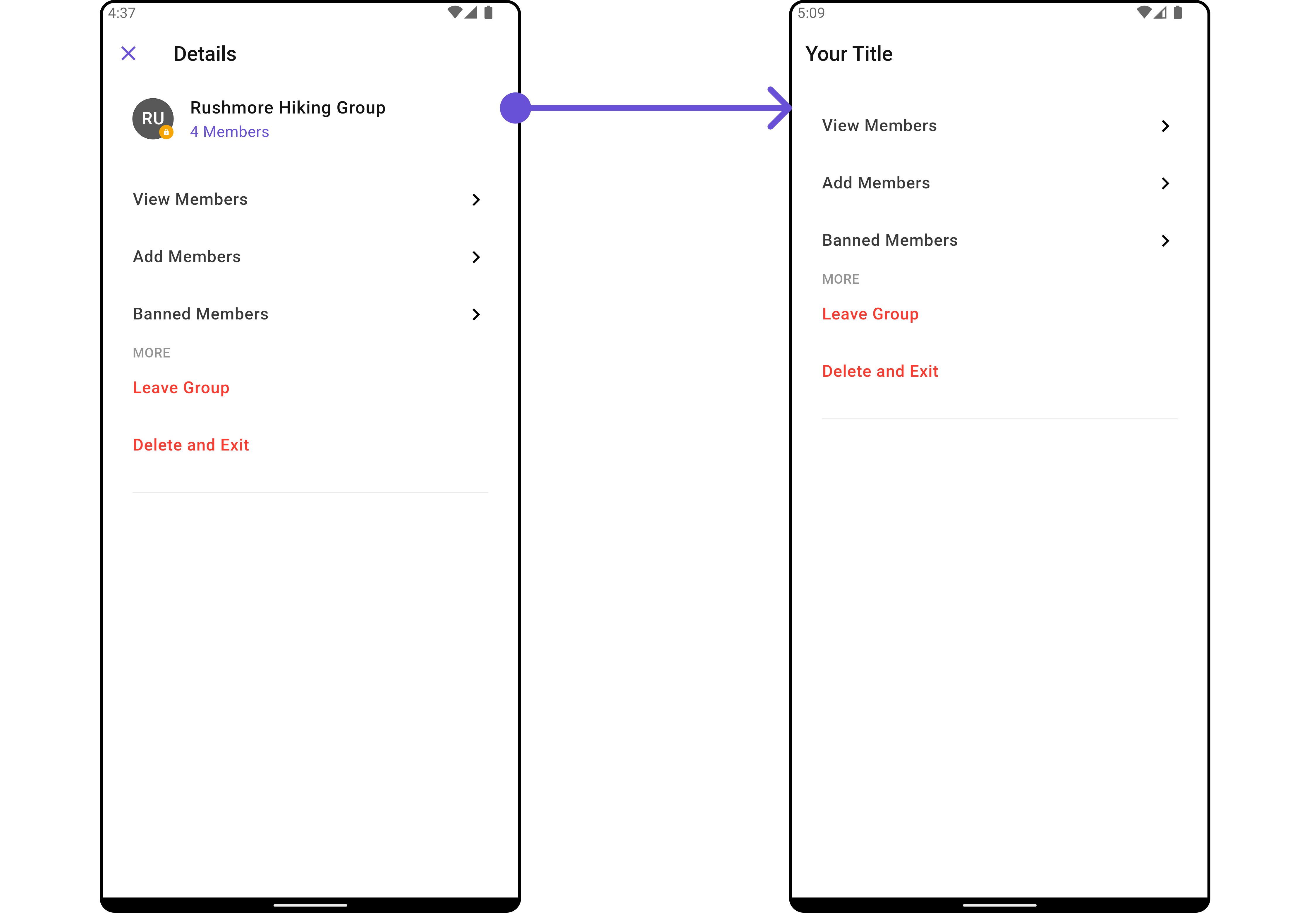

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Dart

CometChatDetails(
    group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
    title: "Your Title",
    hideProfile: true,
    showCloseButton: false
)

Android

iOS

List of Properties exposed by CometChatDetails

Property	Description	Code
Group	Group object for which the details are to be shown	group: Group?
Title	Title for the details screen	title: String?
Show Close Button	Toggles visibility for close button	showCloseButton: bool?
Close Button Icon	Icon for the close button	closeButtonIcon: Icon?
Disable Users Presence	Controls visibility of status indicator	disableUsersPresence: bool?
Hide Profile	Hides view profile for users	hideProfile: bool?
Protected Group Icon	Icon for protected group status indicator	protectedGroupIcon: Widget?
Private Group Icon	Icon for private group status indicator	privateGroupIcon: Widget?
Theme	Custom theme for the details screen	theme: CometChatTheme?

---

Advanced

For advanced-level customization, you can set custom views to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your own widget and then incorporate those into the widget.

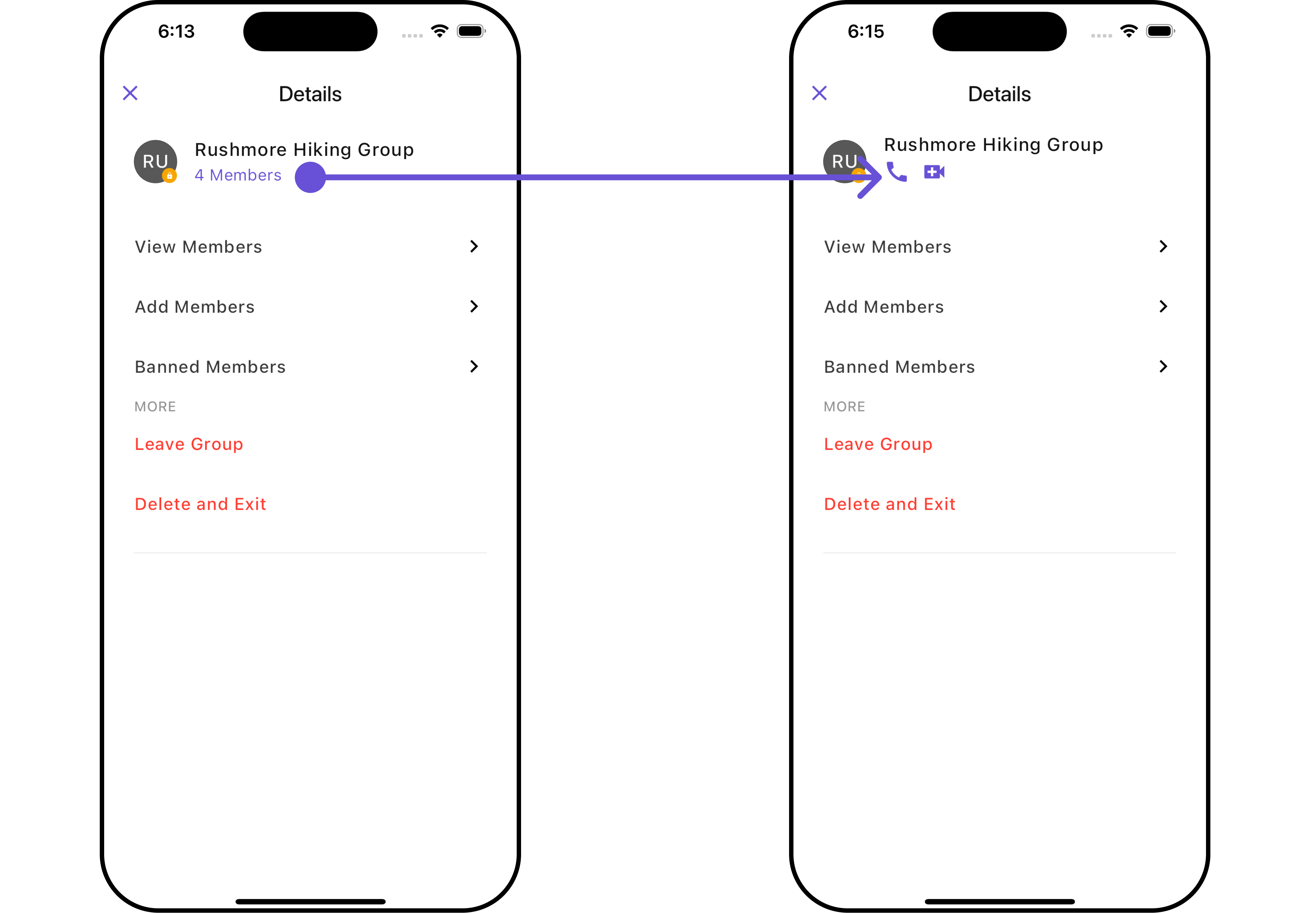

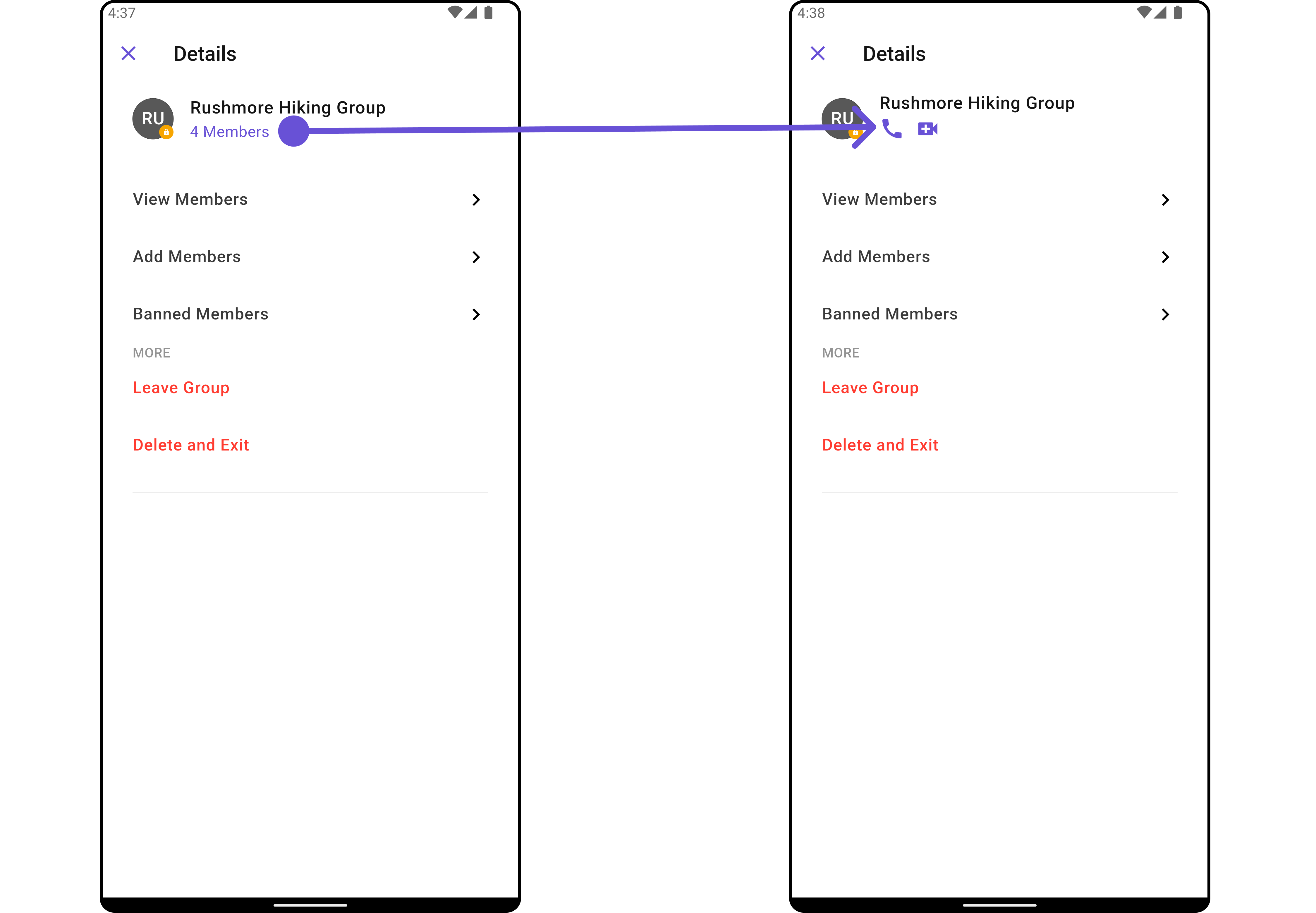

SubtitleView

You can customize your Subtitle View to meet your specific preferences and needs.

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  subtitleView: ({BuildContext? context, User? user, Group? group}) {
    return Placeholder(); // Replace this placeholder with your custom widget.
  },
)

Here is the complete example for reference:

Example

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  subtitleView: ({BuildContext? context, User? user, Group? group}) {
    return const Row(
      children: [
        Icon(Icons.call, color: Color(0xFF6851D6), size: 25,),
        SizedBox(width: 10),
        Icon(Icons.video_call, color: Color(0xFF6851D6), size: 25,),
      ],
    ); // Replaced the placeholder with a custom widget.
  },
)

Android

iOS

---

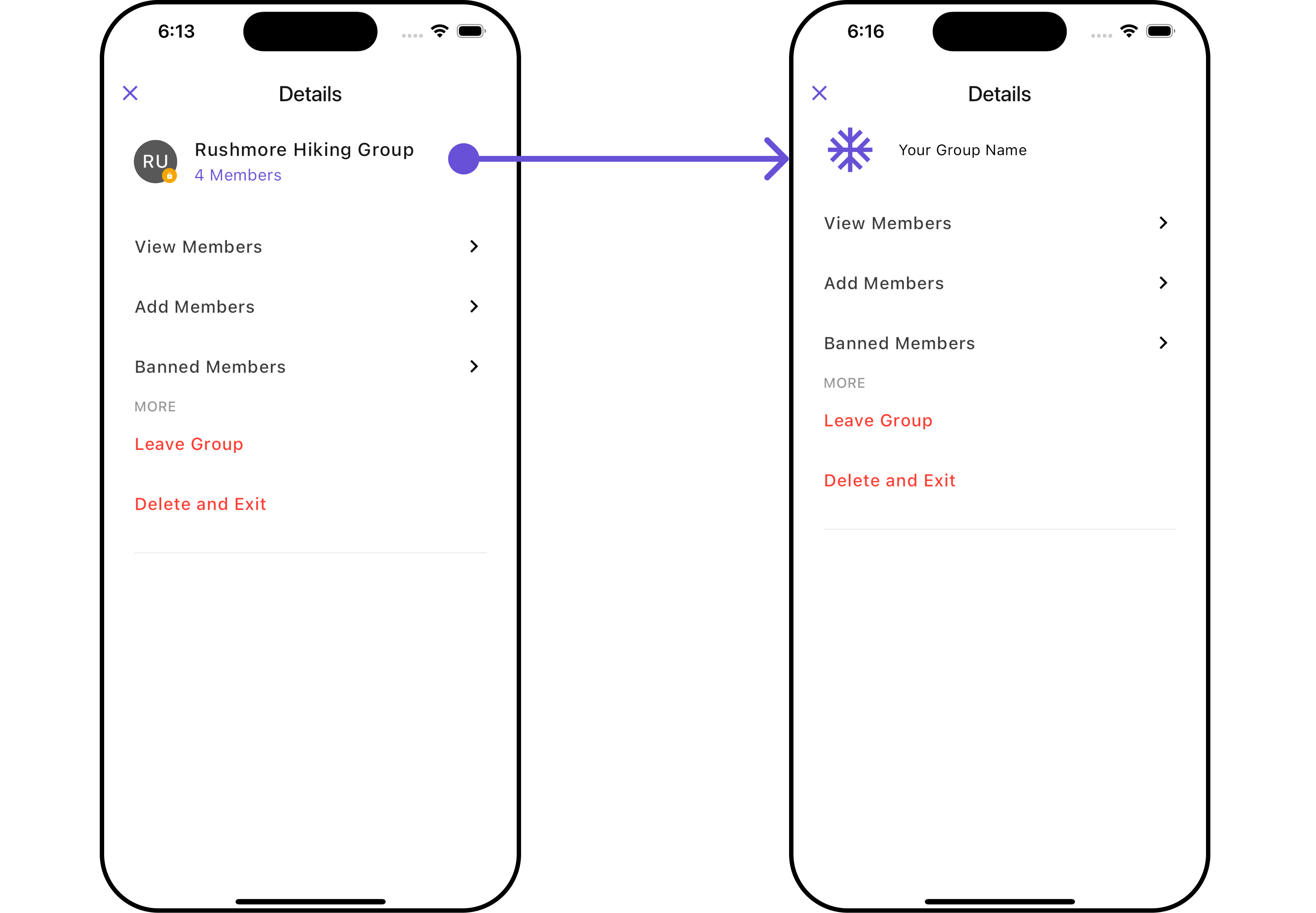

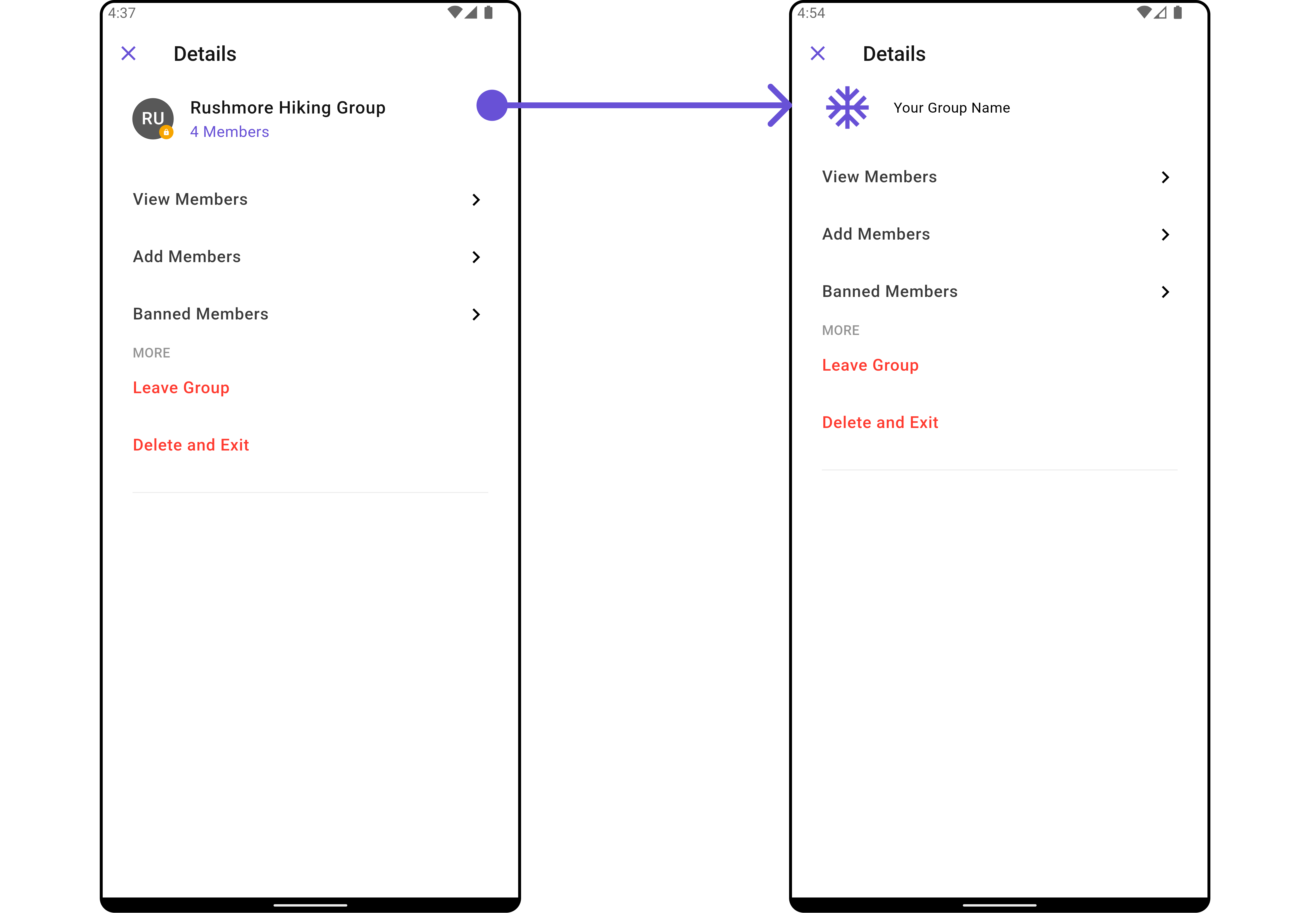

CustomProfileView 🛑

You can customize your Profile View to meet your specific preferences and needs.

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  customProfileView: Placeholder(); // Replace this placeholder with your custom widget.
)

Here is the complete example for reference:

Example

Dart

CometChatDetails(
  group: Group(guid: "group__1715256001347", name: "Rushmore Hiking Group", membersCount: 4, type: ""), // A group object is required to launch this widget.
  customProfileView: Container(
      child: Center(
        child: Row(
          crossAxisAlignment: CrossAxisAlignment.center,
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            const SizedBox(height: 20,),
            Icon(Icons.ac_unit, color: Color(0xFF6851D6), size: 50,),
            const SizedBox(width: 20,),
            const Text("Your Group Name"),
            Spacer(),
          ],
        ),
      )
  ), // Replaced the placeholder with a custom widget.
)

Android

iOS

---

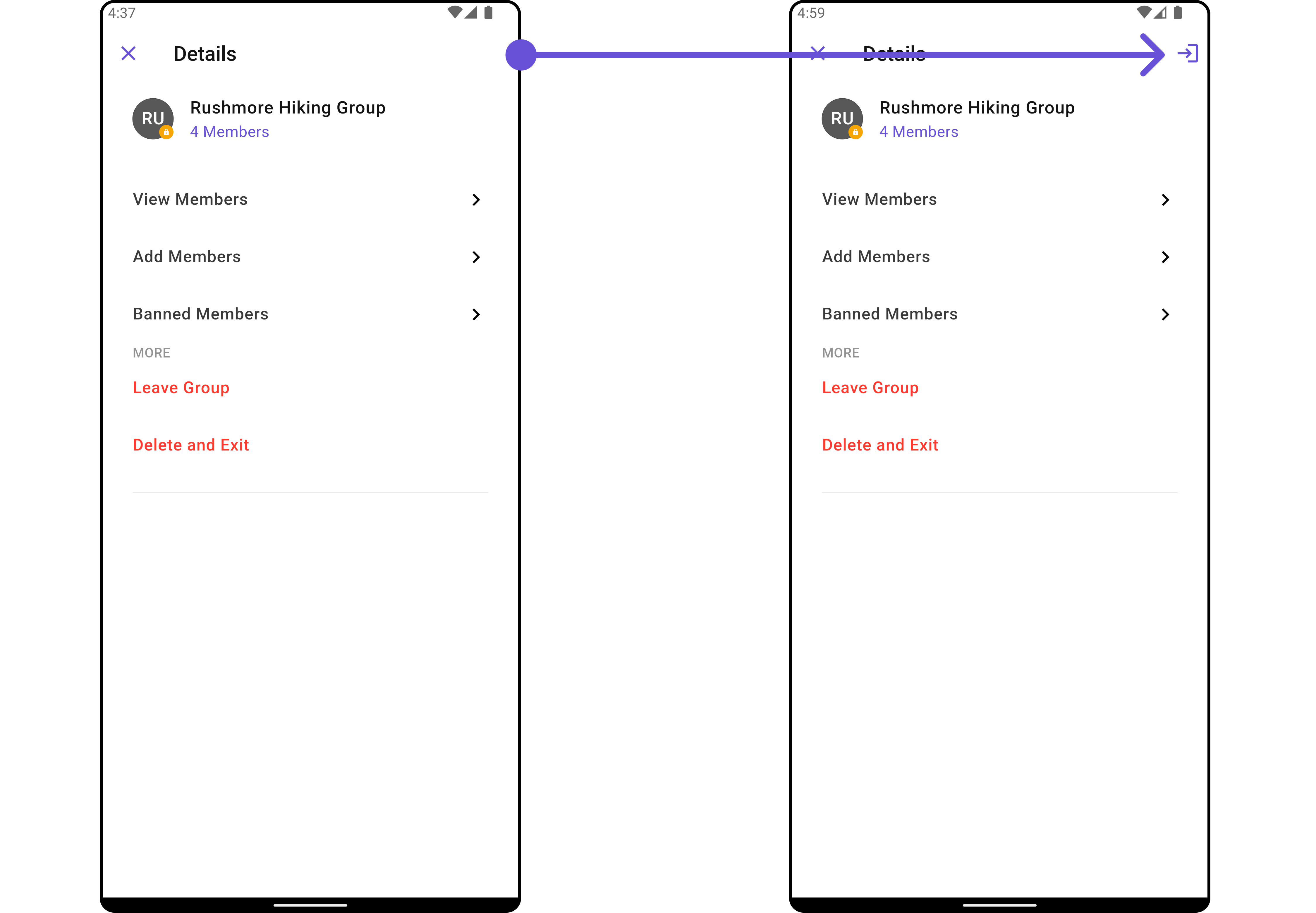

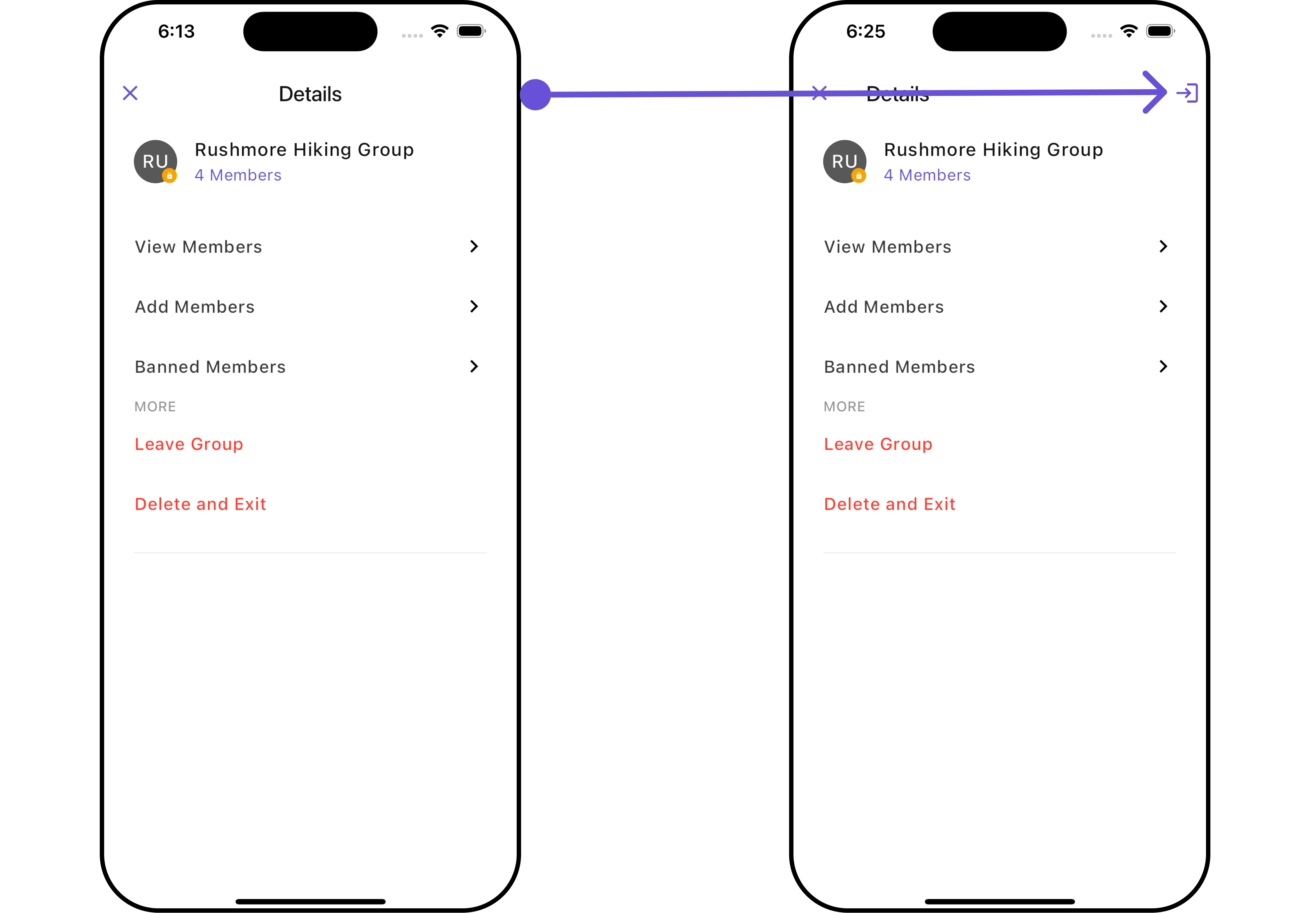

AppBarOptions

You can set the Custom appBarOptions to the CometChatDetails widget.

Dart

widget

CometChatDetails(
    group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
    appBarOptions: [
        Placeholder(),
        Placeholder(),
        Placeholder()
    ] // Replace this list of placeholder widgets with your list of custom widgets.
)

Here is the complete example for reference:

Example

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  appBarOptions: [
    InkWell(
      onTap: () {
        // TODO("Not yet implemented")
      },
      child: const Icon(Icons.login, color: Color(0xFF6851D6)),
    ),
    const SizedBox(width: 10)
  ] // Replaced the list of placeholder widgets with a list of custom widgets.
)

Android

iOS

---

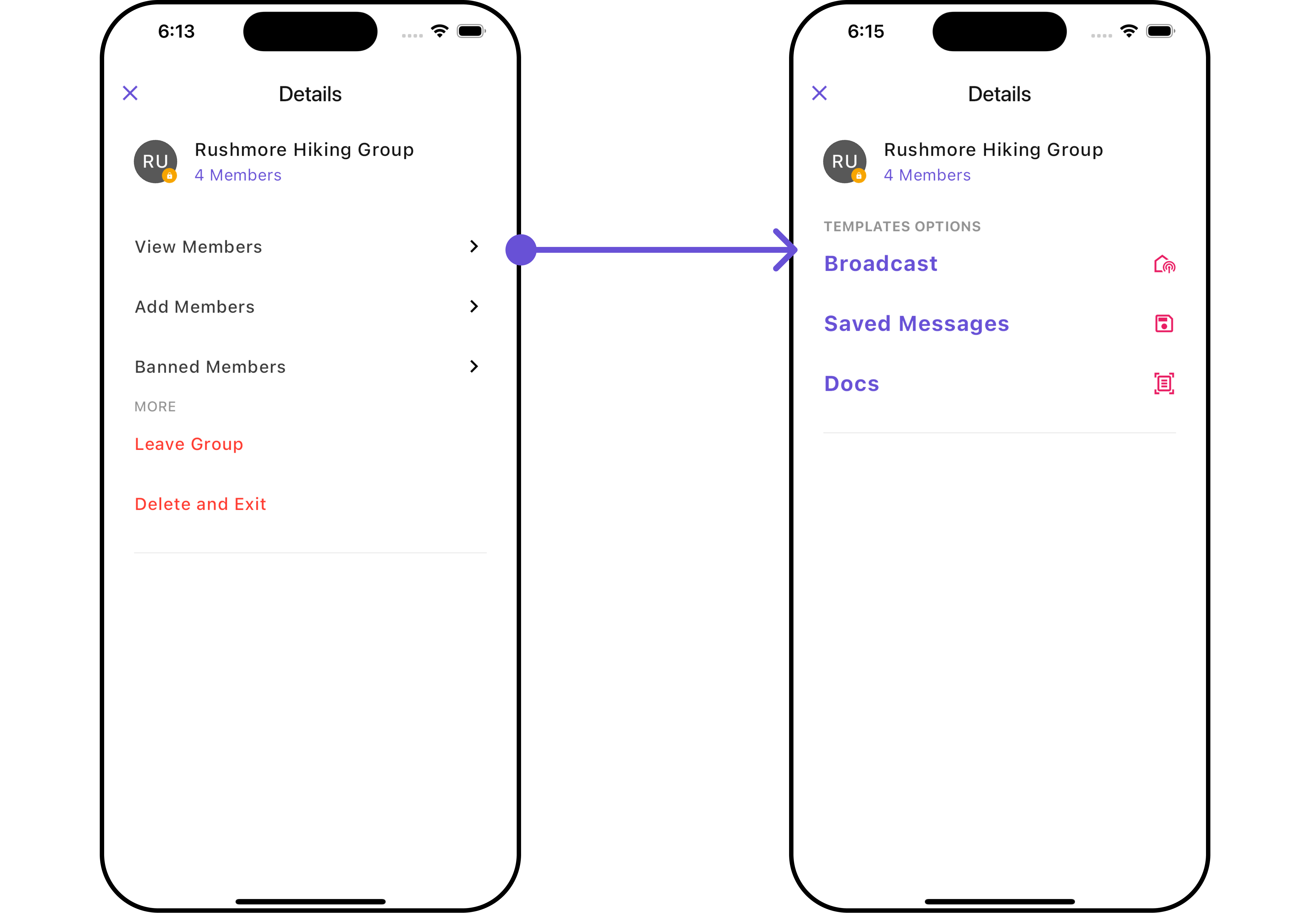

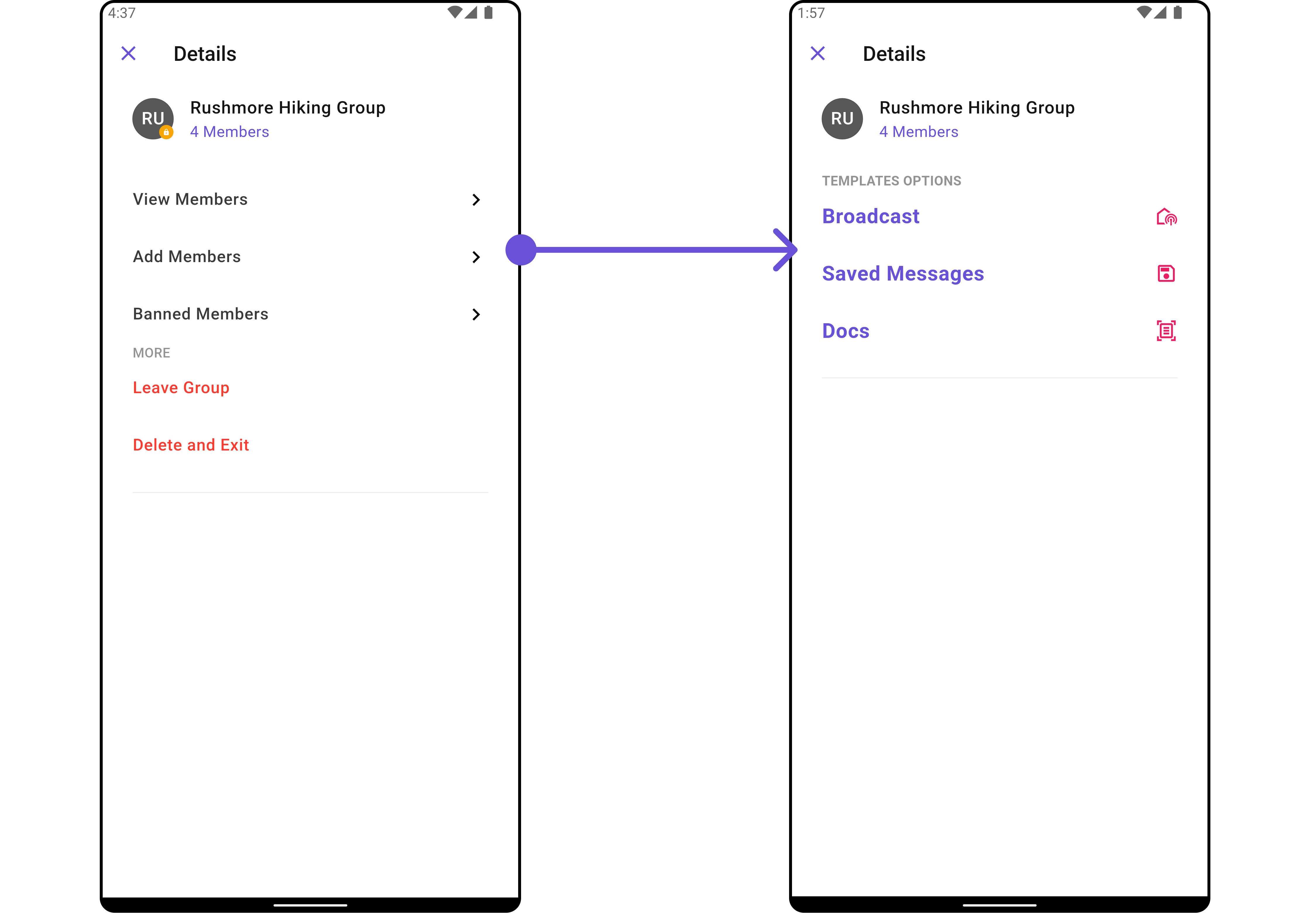

Template and Options

The CometChatDetailsOption is the class providing structure for options to be shown for group members

Dart

Option

CometChatDetailsOption option = CometChatDetailsOption(
    id: "OPTION_ID",
    onClick: (user, group, section, state) {},
    title: "CUSTOM OPTION",
);

A list of CometChatDetailsOption defines the structure for sections of options available in the CometChatDetails

Property	Description	Code
Custom View	Custom view to options	customView: Widget?
Tail View	Tail widget for detail option	tail: Widget?
Height	Height for options	height: double?
On Click	Function triggered on click, takes user, group, section, and state as parameters	onClick: Function(User? user, Group? group, String section, CometChatDetailsControllerProtocol state)?
Id	Identifier for the option	id: String
Title	Title for the option	title: String?
Icon	Icon for the option	icon: String?
Package Name	Package name for the option	packageName: String?
Title Style	Style for the title	titleStyle: TextStyle?

The CometChatDetailsTemplate offers a structure for organizing information in the CometChatDetails widget. It serves as a blueprint, defining how group-related details are presented. This structure allows for customization and organization within the CometChat interface.

Dart

Template

CometChatDetailsTemplate template = CometChatDetailsTemplate(
  id: "TEMPLATE_ID",
  title: "CUSTOM TEMPLATE",
  options: (user, group, context, theme) => [aboveCreatedOption],
);

A list of CometChatDetailsTemplate defines the structure for sections of options available in the CometChatDetails

Property	Description	Code
Id	Unique identifier for every CometChatDetailsTemplate	id: String
Options	Function which returns list of CometChatDetailsOption for every CometChatDetailsTemplate	options: List<CometChatDetailsOption> Function(User? user, Group? group, BuildContext? context, CometChatTheme? theme)?
Title	Title of CometChatDetailsTemplate	title: String?
Title Style	Style of title of CometChatDetailsTemplate	titleStyle: TextStyle?
Section Separator Color	Color of section separator	sectionSeparatorColor: Color?
Hide Section Separator	Boolean which decides whether to hide section separator or not	hideSectionSeparator: bool?
Item Separator Color	Color of item separator	itemSeparatorColor: Color?
Hide Item Separator	Boolean which decides whether to hide item separator or not	hideItemSeparator: bool?

Here is the complete example for reference:

Example

Dart

CometChatDetails(
  group: Group(guid: "group__1715256001347", name: "Rushmore Hiking Group", membersCount: 4, type: ""), // A group object is required to launch this widget.
  data: (group, user) {
    // Create a custom option
    CometChatDetailsOption option1 = CometChatDetailsOption(
        id: "OPTION_ID",
        onClick: (user, group, section, state) {
          // TODO("Not yet implemented")
        },
        tail: const Icon(
          Icons.broadcast_on_personal_outlined,
          color: Colors.pink,
          size: 22,
        ),
        title: "Broadcast",
        titleStyle: TextStyle(
          fontWeight: FontWeight.bold,
          fontSize: 20,
          color: Color(0xFF6851D6)
        ),
        packageName: UIConstants.packageName
    );

    CometChatDetailsOption option2 = CometChatDetailsOption(
        id: "OPTION_ID",
        onClick: (user, group, section, state) {
          // TODO("Not yet implemented")
        },
        tail: const Icon(
          Icons.save_outlined,
          color: Colors.pink,
          size: 22,
        ),
        title: "Saved Messages",
        titleStyle: TextStyle(
            fontWeight: FontWeight.bold,
            fontSize: 20,
            color: Color(0xFF6851D6)
        ),
        packageName: UIConstants.packageName
    );

    CometChatDetailsOption option3 = CometChatDetailsOption(
        id: "OPTION_ID",
        onClick: (user, group, section, state) {
          // TODO("Not yet implemented")
        },
        tail: const Icon(
          Icons.document_scanner_outlined,
          color: Colors.pink,
          size: 22,
        ),
        title: "Docs",
        titleStyle: TextStyle(
            fontWeight: FontWeight.bold,
            fontSize: 20,
            color: Color(0xFF6851D6)
        ),
        packageName: UIConstants.packageName
    );

    // Create a custom template
    CometChatDetailsTemplate template = CometChatDetailsTemplate(
      id: "TEMPLATE_ID",
      title: "Templates Options",
      titleStyle: const TextStyle(
        fontWeight: FontWeight.bold,
      ),
      options: (user, group, context, theme) => [option1, option2, option3],
    ); // Created a custom option and template

    return [template]; //Return the created template as a list
  },
)

Android

iOS

---

Configurations

Configurations offer the ability to customize the properties of each widget within a Composite Widget. CometChatDetails has Add Members, Banned Members, Transfer Ownership and Group Members widget. Hence, each of these widgets will have its individual Configuration.

Group Members

You can customize the properties of the Group Members widget by making use of the GroupMembersConfiguration. You can accomplish this by employing the GroupMembersConfiguration as demonstrated below:

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  groupMembersConfiguration: GroupMembersConfiguration()
)

All exposed properties of GroupMembersConfiguration can be found under Group Members. Properties marked with the 🛑 symbol are not accessible within the Configuration Object.

Example

Let’s say you want to change the style of the Group Member subwidget and, in addition, you only want to hide search bar and separator.

You can modify the style using the groupMemberStyle property, hide the separator using hideSeparator property and hide the search bar using hideSearch property.

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  groupMembersConfiguration: GroupMembersConfiguration(
    groupMemberStyle: GroupMembersStyle(
      background: Color(0xFFE4EBF5),
      border: Border.all(width: 2),
      borderRadius: 20,
    ),
    hideSearch: false,
    hideSeparator: true
  ),
)

---

Add Members

You can customize the properties of the Add Members widget by making use of the AddMembersConfiguration. You can accomplish this by employing the AddMembersConfiguration as demonstrated below:

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  addMemberConfiguration: AddMemberConfiguration(),
)

All exposed properties of AddMembersConfiguration can be found under Add Members. Properties marked with the 🛑 symbol are not accessible within the Configuration Object.

Example

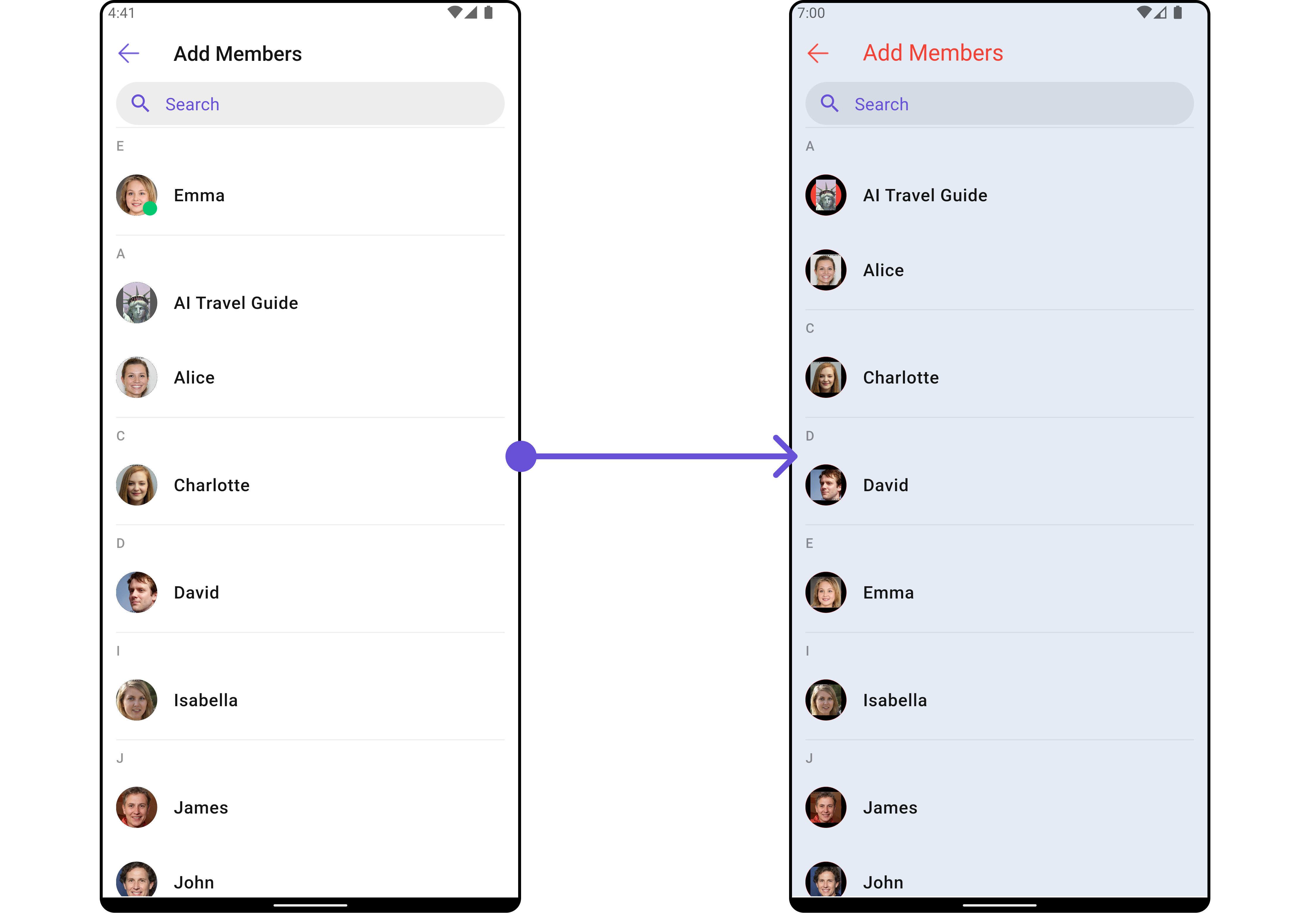

Let’s say you want to change the style of the Add Members subwidget and, in addition, you only want to show the back button.

You can modify the style using the ListItemStyle property and AvatarStyle property

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  addMemberConfiguration: AddMemberConfiguration(
    addMembersStyle: AddMembersStyle(
        background: Color(0xFFE4EBF5),
        titleStyle: TextStyle(color: Colors.red),
        backIconTint: Colors.red
    ),
    avatarStyle: AvatarStyle(
        border: Border.all(width: 5),
        borderRadius: 20,
        background: Colors.red
    ),
  ),
)

Android

iOS

---

Banned Members

You can customize the properties of the Banned Members widget by making use of the BannedMembersConfiguration. You can accomplish this by employing the BannedMembersConfiguration as demonstrated below:

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  bannedMemberConfiguration: BannedMemberConfiguration(),
)

All exposed properties of BannedMembersConfiguration can be found under Banned Members. Properties marked with the 🛑 symbol are not accessible within the Configuration Object.

Example

Let’s say you want to change the style of the Banned Members subwidget and, in addition, you only want to show the back button.

You can modify the style using the ListItemStyle property and AvatarStyle property

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  bannedMemberConfiguration: BannedMemberConfiguration(
    bannedMembersStyle: BannedMembersStyle(
        background: Color(0xFFE4EBF5),
        titleStyle: TextStyle(color: Colors.red),
        backIconTint: Colors.red
    ),
    avatarStyle: AvatarStyle(
        border: Border.all(width: 5),
        borderRadius: 20,
        background: Colors.red
    ),
  ),
)

---

Transfer Ownership

You can customize the properties of the Transfer Ownership widget by making use of the TransferOwnershipConfiguration. You can accomplish this by employing the TransferOwnershipConfiguration as demonstrated below:

Dart

CometChatDetails(
  group: Group(guid: "", name: "", membersCount: 0, type: ""), // A group object is required to launch this widget.
  transferOwnershipConfiguration: TransferOwnershipConfiguration(),
)

All exposed properties of TransferOwnershipConfiguration can be found under Transfer Ownership. Properties marked with the 🛑 symbol are not accessible within the Configuration Object.

Example Let’s say you want to change the style of the Transfer Ownership subwidget and, in addition, you only want to show the back button.

You can modify the style using the ListItemStyle property and AvatarStyle property

Dart

CometChatDetails(
  group: myGroup, // A group object is required to launch this widget.
  transferOwnershipConfiguration: TransferOwnershipConfiguration(
    transferOwnershipStyle: TransferOwnershipStyle(
      background: Color(0xFFE4EBF5),
      submitIconTint: Colors.red,
      selectIconTint: Colors.red,
    ),
    avatarStyle: AvatarStyle(
        border: Border.all(width: 5),
        borderRadius: 20,
        background: Colors.red
    ),
  ),
)

---
