Call Log With Details

Call Log With Details — CometChat documentation.

Overview

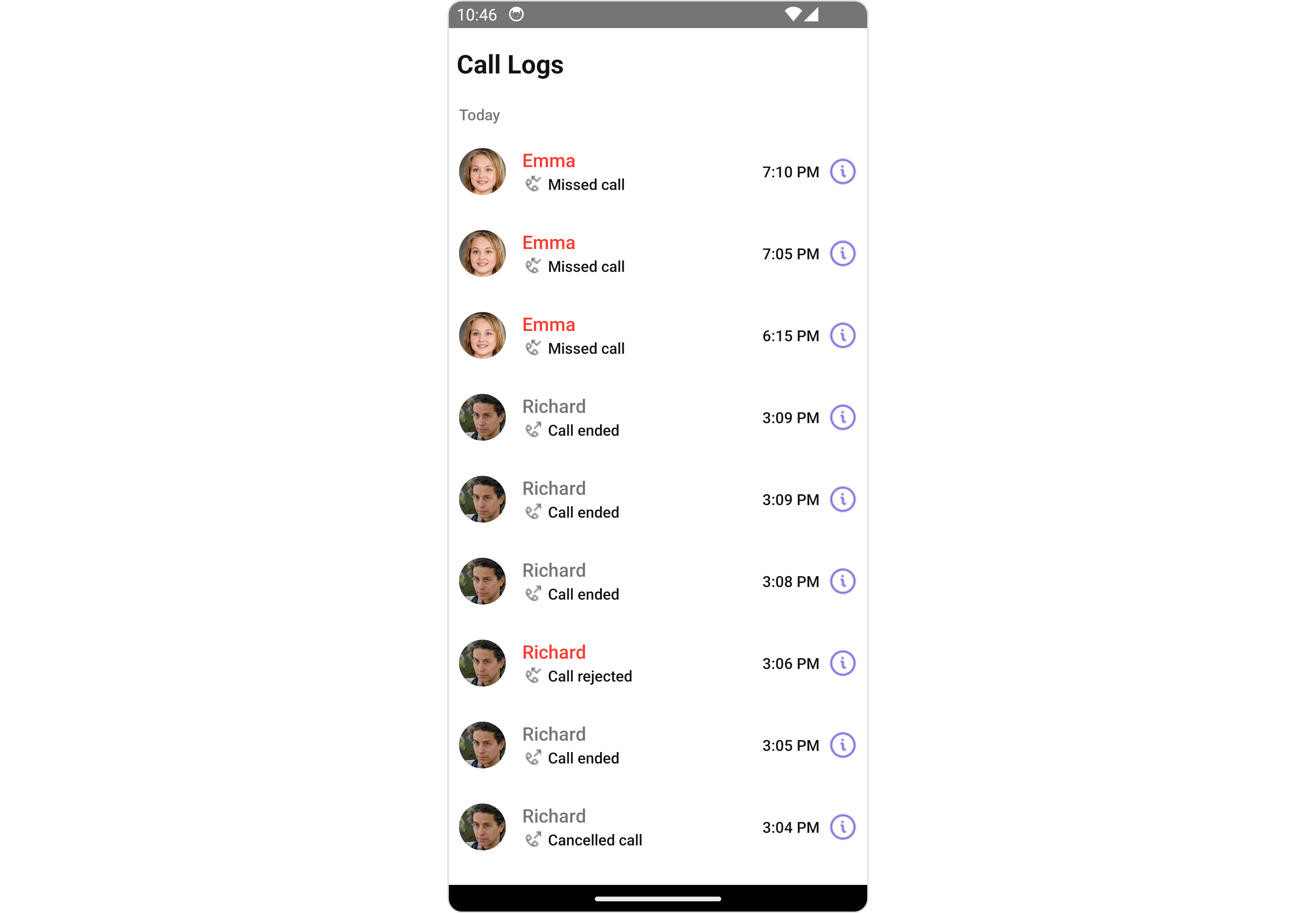

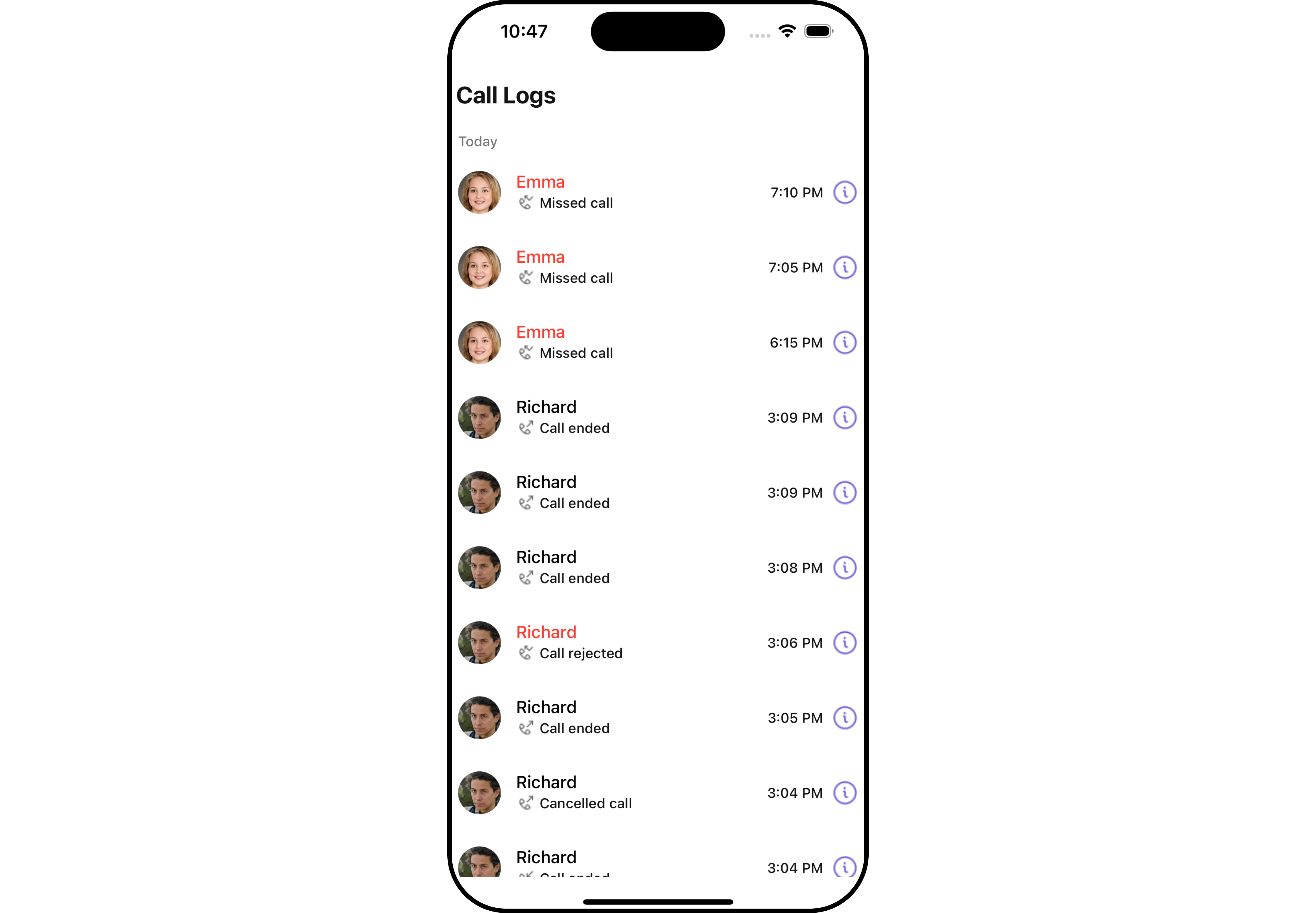

The CometChatCallLogsWithDetails is a Composite Component encompassing components such as Call Logs and Call Log Details. Both of these component contributes to the functionality and structure of the overall CallLogsWithDetails component.

iOS

Android

Components	Description
Call Logs	The Call Logs component is designed to show the list of Call Log available . By default, names are shown for all listed users, along with their avatar if available.
Call Log Details	The Call Log Details component is designed to displays all the information related to a call. This component displays information like user/group information, participants of the call, recordings of the call (if available) & history of all the previous calls.

Usage

Integration

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import { CometChatCallLogsWithDetails } from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  return <>{loggedInUser && <CometChatCallLogsWithDetails />}</>;
}

---

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

While the CallLogsWithDetails component does not have its actions, its components - Call Logs, and Call Log Details - each have their own set of actions.

The Action of the components can be overridden through the use of the Configurations object of its components. Here is an example code snippet.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogsWithDetails,
  CallLogsConfigurationInterface,
  CallLogDetailsConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const datePattern: DatePattern = "timeFormat";
  const dateSeparatorPattern: DatePattern = "dayDateFormat";

  const callLogsConfiguration: CallLogsConfigurationInterface = {
    onInfoIconPress: (prop: { call: CometChat.BaseMessage }) => {
      //code
    },
    datePattern: datePattern,
    dateSeparatorPattern: dateSeparatorPattern,
  };

  const callLogDetailsConfiguration: CallLogDetailsConfigurationInterface = {
    onBack: () => {
      //code
    },
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogsWithDetails
          CallLogsConfiguration={callLogsConfiguration}
          callLogDetailsConfiguration={callLogDetailsConfiguration}
        />
      )}
    </>
  );
}

The CometChatCallLogsWithDetails component overrides several actions from its components to reach its default behavior. The list of actions overridden by GroupsWithMessages includes:

• onInfoIconPress : By overriding the onInfoIconPress of the Call Logs Component, CallLogsWithDetails achieves navigation from Call Logs to Call Log Details component.

iOS

Android

---

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

While the CallLogsWithDetails component does not have filters, its components do, For more detail on individual filters of its component refer to Call Logs and Call Log Details.

By utilizing the Configurations object of its components, you can apply filters.

In the following example, we are applying a filter to the Call Logs by setting the status to show only ‘missed’ calls and setting the limit to 5 using the callLogRequestBuilder.

App.tsx

import {CometChat} from '@cometchat/chat-sdk-react-native';
import { CometChatCallLogsWithDetails, CallLogsConfigurationInterface, CallLogRequestBuilder  } from '@cometchat/chat-uikit-react-native';

function App(): React.JSX.Element {


   const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
   useEffect(() => {
	   //code
     CometChatUIKit.login({uid: 'uid'})
       .then(async (user: CometChat.User) => {
         setLoggedInUser(user);

       })
       .catch((error: any) => {
         //handle error
       });
   }, []);

   const datePattern : DatePattern = 'timeFormat';
   const dateSeparatorPattern : DatePattern = 'dayDateFormat';

   const callLogsConfiguration : CallLogsConfigurationInterface = {
      datePattern: datePattern,
      dateSeparatorPattern: dateSeparatorPattern
      callRequestBuilder: new CallLogRequestBuilder().setAuthToken('auth-token').setLimit(5).setCallStatus('missed');
   }

   return (
	   <>
        { loggedInUser &&
          <CometChatCallLogsWithDetails
               CallLogsConfiguration={callLogsConfiguration}
          />
        }
	   </>
   );
 }

---

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The CallLogsWithDetails does not produce any events but its component does.

---

Customization

To fit your app’s design requirements, you have the ability to customize the appearance of the CallLogsWithDetails component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

You can customize its sub-component styles. For more details on individual component styles, you can refer Call Logs Styles and Call Log Details Styles.

Styles can be applied to SubComponents using their respective configurations.

Example

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogsWithDetails,
  CallLogsConfigurationInterface,
  CallLogRequestBuilder,
  CallLogsStyleInterface,
  CallLogDetailsStyleInterface,
  CallLogDetailsConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const datePattern: DatePattern = "timeFormat";
  const dateSeparatorPattern: DatePattern = "dayDateFormat";

  const callLogsStyle: CallLogsStyleInterface = {
    titleColor: "red",
  };

  const callLogsConfiguration: CallLogsConfigurationInterface = {
    datePattern: datePattern,
    dateSeparatorPattern: dateSeparatorPattern,
    callLogsStyle: callLogsStyle,
  };

  const callLogDetailsStyle: CallLogDetailsStyleInterface = {
    titleColor: "blue",
  };

  const callLogDetailsConfiguration: CallLogDetailsConfigurationInterface = {
    callLogDetailsStyle: callLogDetailsStyle,
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogsWithDetails
          CallLogsConfiguration={callLogsConfiguration}
          callLogDetailsConfiguration={callLogDetailsConfiguration}
        />
      )}
    </>
  );
}

---

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogsWithDetails,
  CallLogsConfigurationInterface,
  CallLogRequestBuilder,
} from "@cometchat/chat-uikit-react-native";
import { CallLog } from "@cometchat/calls-sdk-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  const [callLog, setCallLog] = useState<CallLog>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);

        const CallLogRequest = new CallLogRequestBuilder()
          .setLimit(1)
          .setCallStatus("cancelled")
          .setAuthToken(user!.getAuthToken())
          .build();

        CallLogRequest.fetchNext().then((callLogs: CallLog[]) => {
          setCallLog(callLogs[0]);
        });
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  return (
    <>
      {loggedInUser && callLog && (
        <CometChatCallLogsWithDetails call={callLog} />
      )}
    </>
  );
}

iOS

Android

Below is a list of customizations along with corresponding code snippets:

Property	Description	Code
call	Used to set the selected Call Log	call?: CallLog

---

Components

Nearly all functionality customizations available for a Component are also available for the composite component. Using Configuration, you can modify the properties of its components to suit your needs.

You can find the list of all Functionality customization of individual components in Call Logsand Call Log Details Styles.

Example

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogsWithDetails,
  CallLogsConfigurationInterface,
  CallLogRequestBuilder,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const datePattern: DatePattern = "timeFormat";
  const dateSeparatorPattern: DatePattern = "dayDateFormat";

  const callLogsConfiguration: CallLogsConfigurationInterface = {
    datePattern: datePattern,
    dateSeparatorPattern: dateSeparatorPattern,
    showBackButton: true,
  };

  const callLogDetailsConfiguration: CallLogDetailsConfigurationInterface = {
    callLogDetailsStyle: callLogDetailsStyle,
    showCloseButton: true,
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogsWithDetails
          CallLogsConfiguration={callLogsConfiguration}
          callLogDetailsConfiguration={callLogDetailsConfiguration}
        />
      )}
    </>
  );
}

---

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your own views, layouts, and UI elements and then incorporate those into the component.

By utilizing the Configuration object of each component, you can apply advanced-level customizations to the GroupsWithMessages.

Example

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogsWithDetails,
  CallLogsConfigurationInterface,
  CallLogRequestBuilder,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const datePattern: DatePattern = "timeFormat";
  const dateSeparatorPattern: DatePattern = "dayDateFormat";

  const callLogsConfiguration: CallLogsConfigurationInterface = {
    datePattern: datePattern,
    dateSeparatorPattern: dateSeparatorPattern,
    EmptyStateView: () => {
      return <Text>Loading...</Text>;
    },
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogsWithDetails
          CallLogsConfiguration={callLogsConfiguration}
        />
      )}
    </>
  );
}

---

To find all the details on individual Component advance customization you can refer, Call Logs Advance and Call Log Details Advance.

CallLogsWithDetails uses advanced-level customization of both Call Logs & Call Log Details components to achieve its default behavior.

1. CallLogsWithDetails utilizes the onInfoIconPress property of the Call Logs subcomponent to navigate the Call Log Details from Call Logs to Call Log Details.

iOS

Android

2. CallLogsWithDetails utilizes the onBack action of the Call Log Details subcomponent to close the Call Log Details Component

iOS

Android

When you override onItemPress and onBack, the default behavior of CallLogsWithDetails will also be overridden.

Configurations

Configurations offer the ability to customize the properties of each component within a Composite Component.

CallLogsWithDetails has Call Logs and Call Log Details component. Hence, each of these components will have its individual Configuration.

• Configurations expose properties that are available in its individual components.

Call Logs

You can customize the properties of the Groups component by making use of the callLogsConfiguration. You can accomplish this by employing the callLogsConfiguration props as demonstrated below:

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogsWithDetails,
  CallLogsConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const callLogsConfiguration: CallLogsConfigurationInterface = {
    //override properties
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogsWithDetails
          CallLogsConfiguration={callLogsConfiguration}
        />
      )}
    </>
  );
}

All exposed properties of CallLogsConfiguration can be found under Call Logs. 🛑 symbol are not accessible within the Configuration Object.

Example

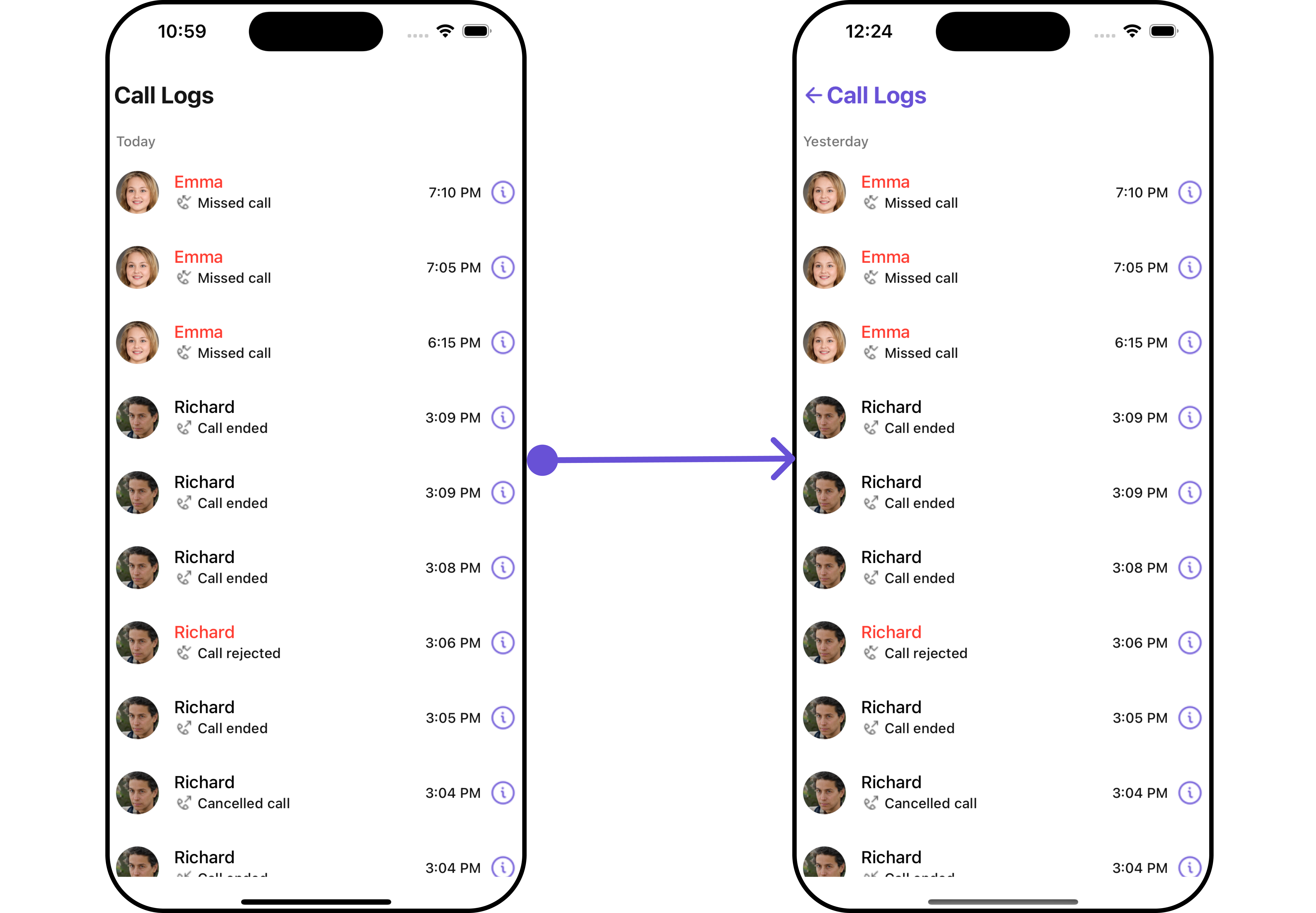

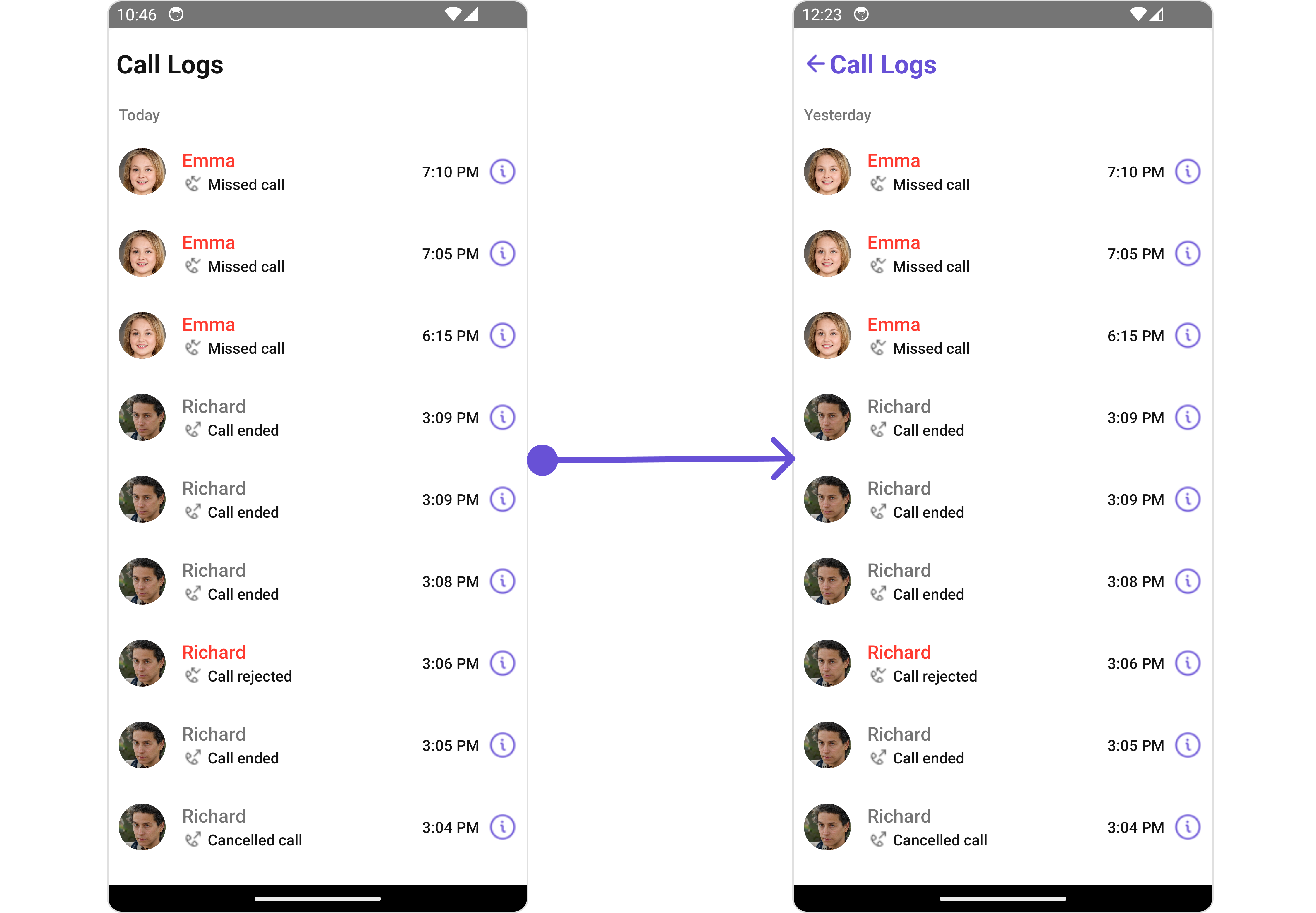

Let’s say you want to change the style of the Call Logs subcomponent and, in addition, you only want to hide the separator of the Call Logs.

You can modify the style using the callLogsStyle property and show the back button using showBackButton property.

iOS

Android

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogsWithDetails,
  CallLogsConfigurationInterface,
  CallLogRequestBuilder,
  CallLogsStyleInterface,
  CallLogDetailsConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const datePattern: DatePattern = "timeFormat";
  const dateSeparatorPattern: DatePattern = "dayDateFormat";

  const callLogsStyle: CallLogsStyleInterface = {
    titleColor: "#6851D6",
  };

  const callLogsConfiguration: CallLogsConfigurationInterface = {
    datePattern: datePattern,
    dateSeparatorPattern: dateSeparatorPattern,
    callLogsStyle: callLogsStyle,
    showBackButton: true,
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogsWithDetails
          CallLogsConfiguration={callLogsConfiguration}
        />
      )}
    </>
  );
}

---

Call Log Details

You can customize the properties of the Call Log Details component by making use of the callLogDetailsConfiguration. You can accomplish this by employing the callLogDetailsConfiguration props as demonstrated below:

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogsWithDetails,
  CallLogDetailsConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const callLogDetailsConfiguration: CallLogDetailsConfigurationInterface = {
    //override properties
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogsWithDetails
          callLogDetailsConfiguration={callLogDetailsConfiguration}
        />
      )}
    </>
  );
}

All exposed properties of CallLogDetailsConfiguration can be found under Call Log Details. 🛑 symbol are not accessible within the Configuration Object.

Example

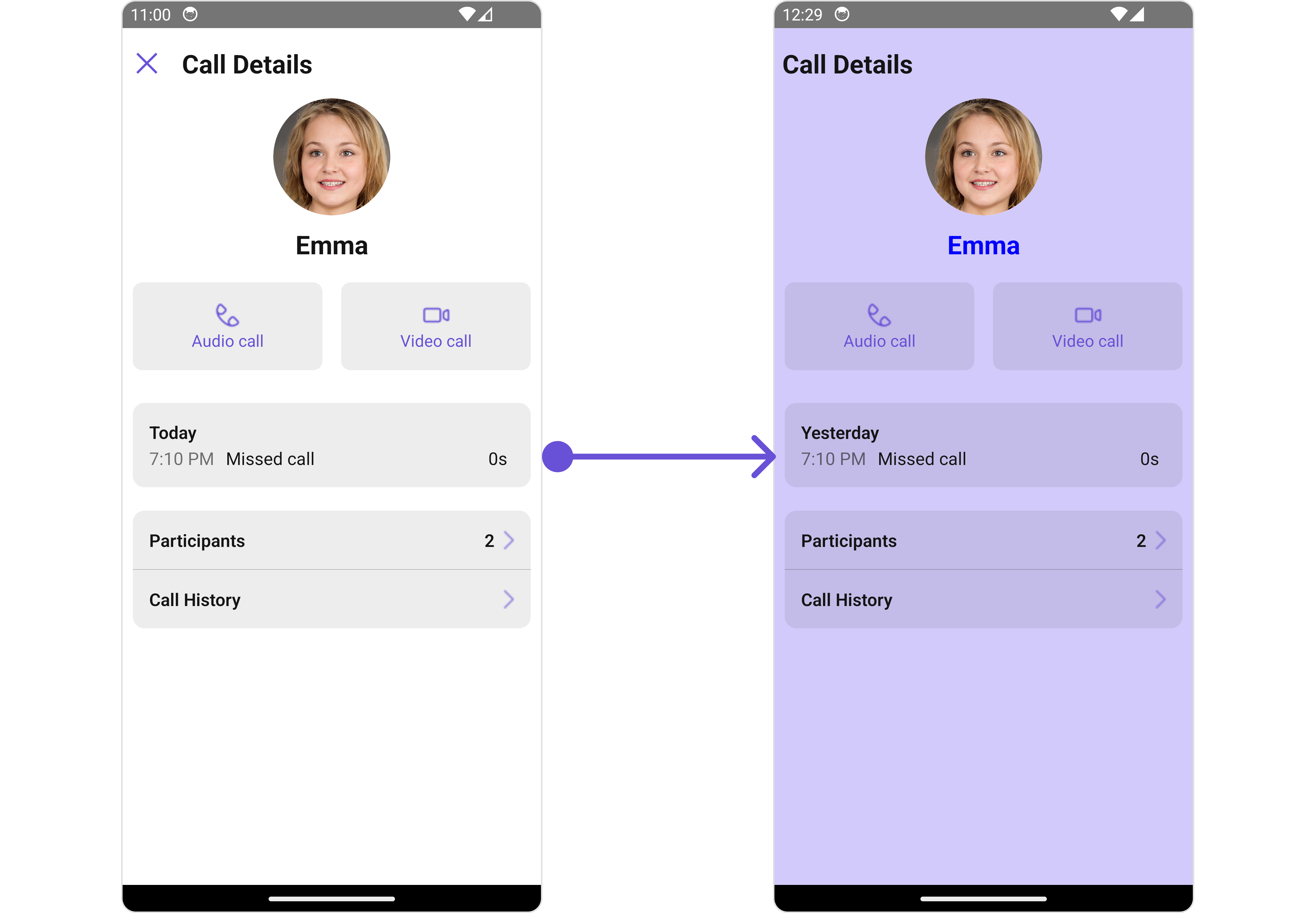

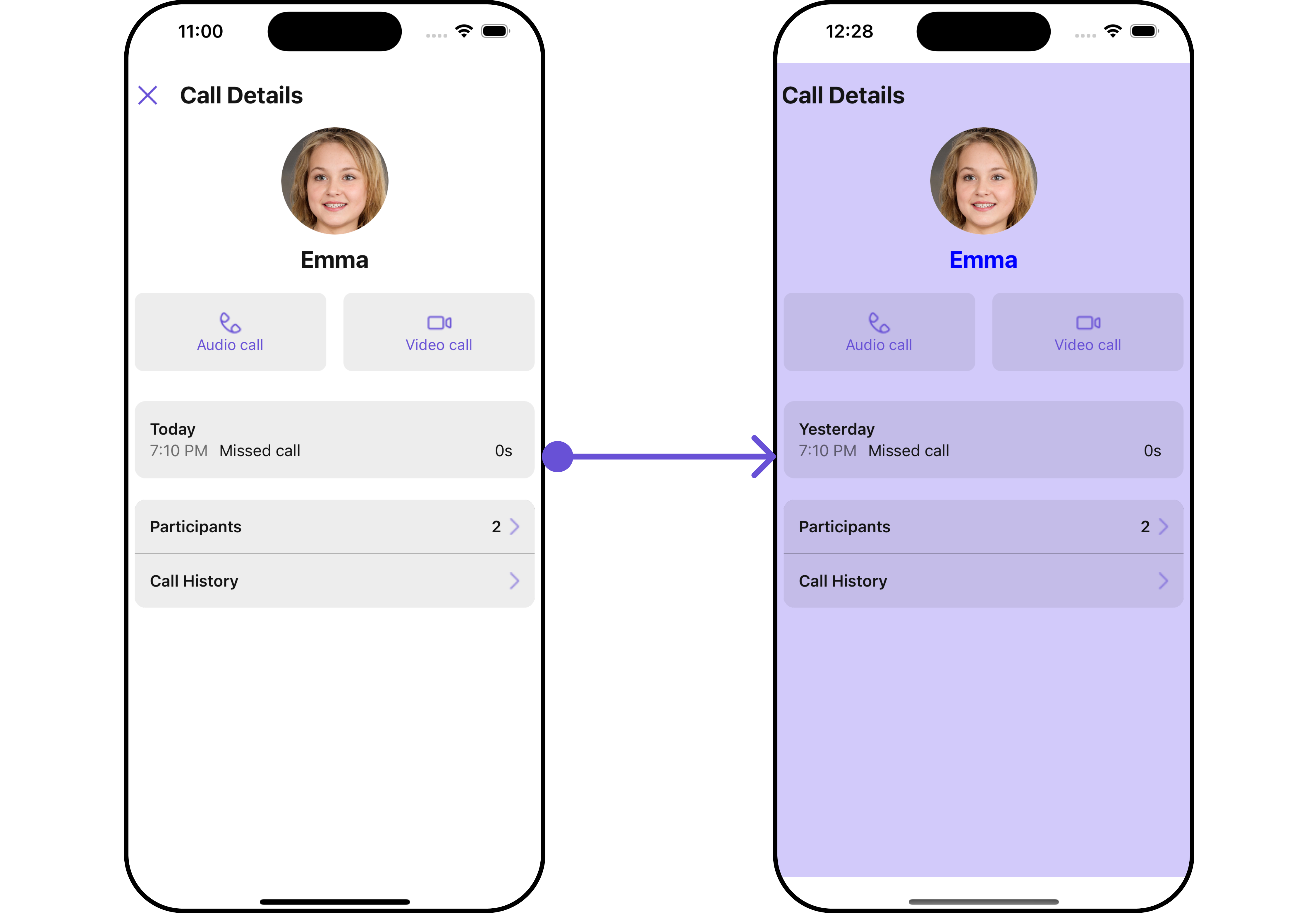

Let’s say you want to change the style of the Call Log Details subcomponent and, in addition, you only want to change the Back Icon.

You can modify the style using the callLogDetailsStyle property and change the back icon using “ property.

iOS

Android

App.tsx

import { CometChat } from "@cometchat/chat-sdk-react-native";
import {
  CometChatCallLogsWithDetails,
  CallLogDetailsStyleInterface,
  CallLogDetailsConfigurationInterface,
} from "@cometchat/chat-uikit-react-native";

function App(): React.JSX.Element {
  const [loggedInUser, setLoggedInUser] = useState<CometChat.User>();
  useEffect(() => {
    //code
    CometChatUIKit.login({ uid: "uid" })
      .then(async (user: CometChat.User) => {
        setLoggedInUser(user);
      })
      .catch((error: any) => {
        //handle error
      });
  }, []);

  const callLogDetailsStyle: CallLogDetailsStyleInterface = {
    titleColor: "blue",
    backgroundColor: "#d2cafa",
  };

  const callLogDetailsConfiguration: CallLogDetailsConfigurationInterface = {
    callLogDetailsStyle: callLogDetailsStyle,
  };

  return (
    <>
      {loggedInUser && (
        <CometChatCallLogsWithDetails
          callLogDetailsConfiguration={callLogDetailsConfiguration}
        />
      )}
    </>
  );
}
