Overview

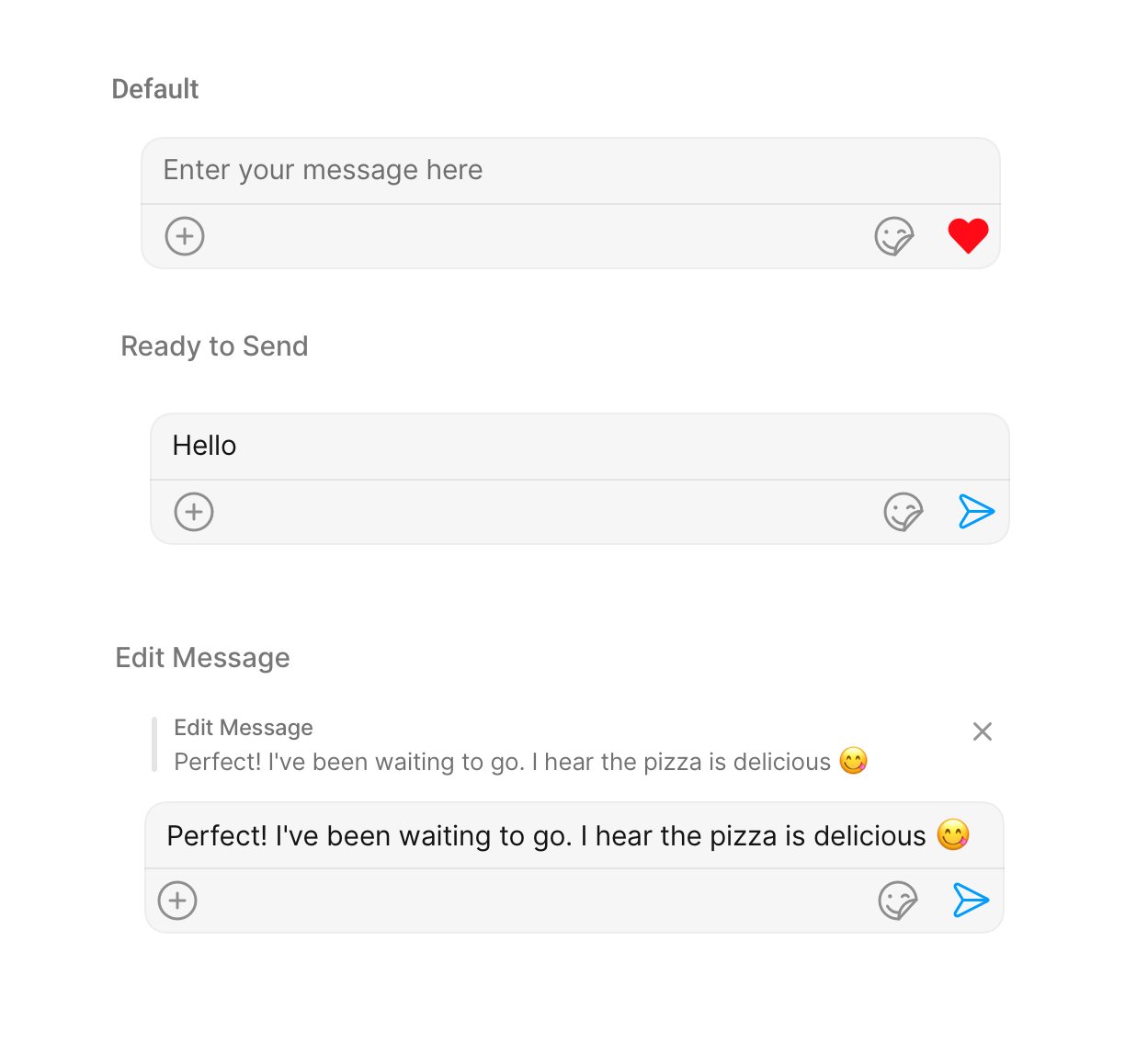

CometChatMessageComposer is a Widget that enables users to write and send a variety of messages, including text, image, video, and custom messages.

Features such as Live Reaction, Attachments, and Message Editing are also supported by it.

CometChatMessageComposer is comprised of the following Base Widgets:

Base Widgets	Description
MessageInput	This provides a basic layout for the contents of this component, such as the TextField and buttons
ActionSheet	The ActionSheet widget presents a list of options in either a list or grid mode, depending on the user’s preference

Usage

Integration

You can launch CometChatMessageComposer directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch CometChatMessageComposer

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => CometChatMessageComposer())); // A user or group object is required to launch this widget.

2. Embedding CometChatMessageComposer as a Widget in the build Method

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class MessageComposer extends StatefulWidget {
  const MessageComposer({super.key});

  @override
  State<MessageComposer> createState() => _MessageComposerState();
}

class _MessageComposerState extends State<MessageComposer> {

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        body: SafeArea(
            child: Column(
              children: [
                const Spacer(),
                CometChatMessageComposer()
              ],
            ) // A user or group object is required to launch this widget.
        )
    );
  }
}

---

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

1. OnSendButtonClick

The OnSendButtonClick event gets activated when the send message button is clicked. It has a predefined function of sending messages entered in the composer EditText. However, you can overide this action with the following code snippet.

Dart

CometChatMessageComposer(
  user: user,
  onSendButtonTap: (BuildContext context, BaseMessage baseMessage, PreviewMessageMode? previewMessageMode) {
    // TODO("Not yet implemented")
  },
)

---

2. onChange

This action handles changes in the value of text in the input field of the CometChatMessageComposer widget.

Dart

CometChatMessageComposer(
  user: user,
  onChange: (String? text) {
    // TODO("Not yet implemented")
  },
)

---

3. onError

This action doesn’t change the behavior of the widget but rather listens for any errors that occur in the MessageList widget.

Dart

CometChatMessageComposer(
  user: user,
  onError: (e) {
    // TODO("Not yet implemented")
  },
)

---

Filters

CometChatMessageComposer widget does not have any available filters.

---

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The CometChatMessageComposer Widget does not emit any events of its own.

---

Customization

To fit your app’s design requirements, you can customize the appearance of the CometChatMessageComposer widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

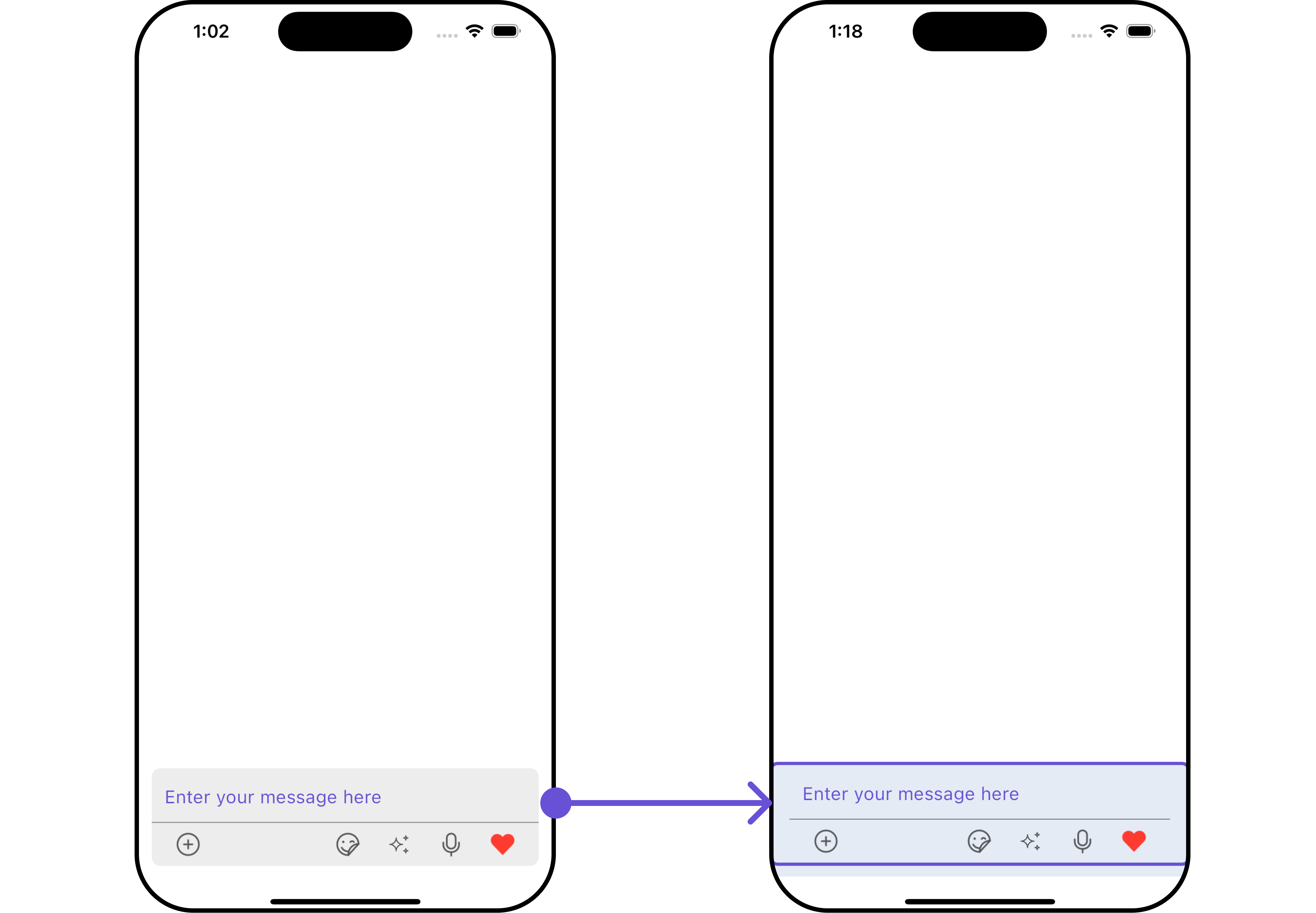

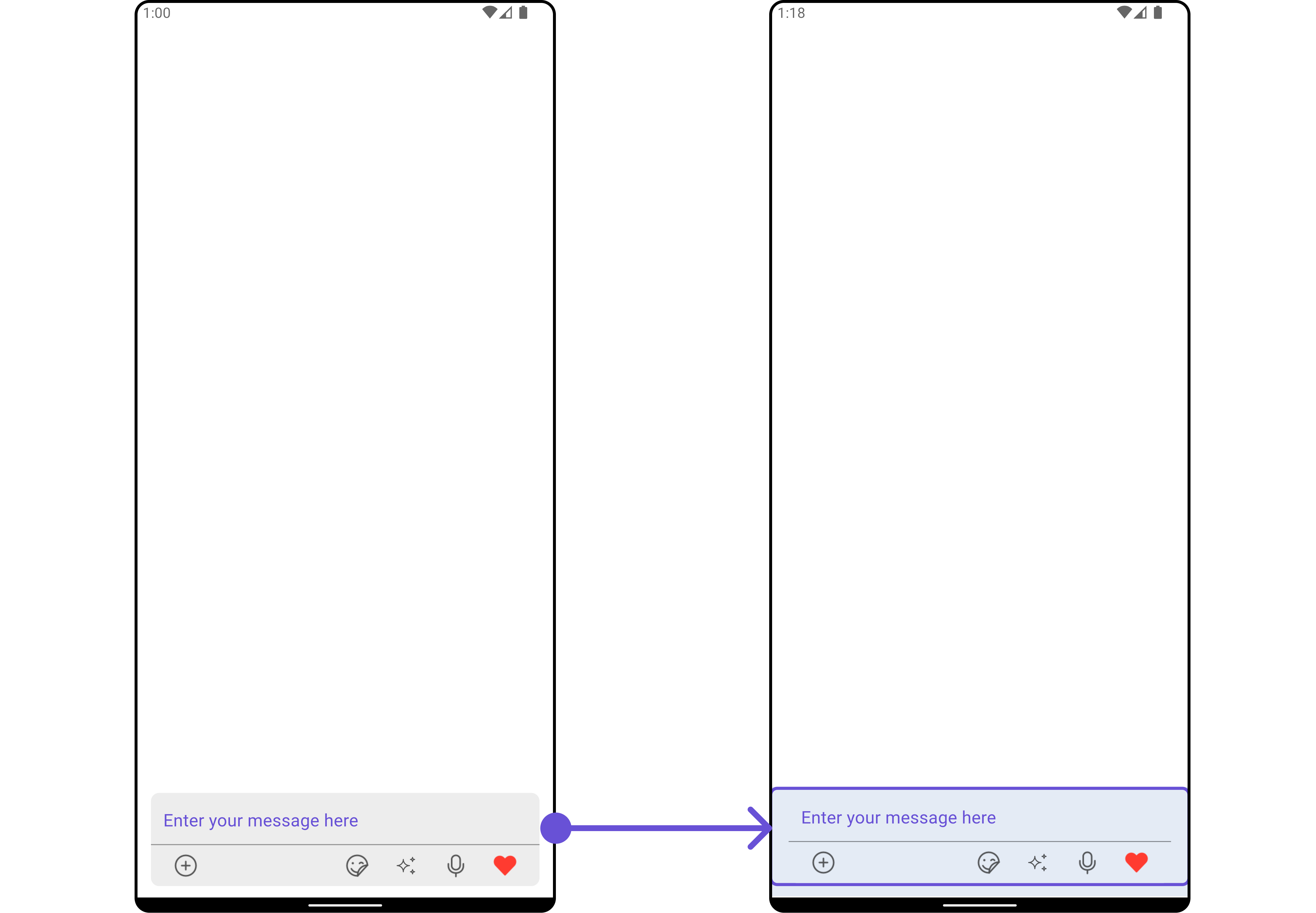

1. CometChatMessageComposer Style

To modify the styling, you can apply the MessageComposerStyle to the CometChatMessageComposer Widget using the messageComposerStyle method.

Dart

CometChatMessageComposer(
  user: user,
  messageComposerStyle: MessageComposerStyle(
      background: Color(0xFFE4EBF5),
      inputBackground: Color(0xFFE4EBF5),
      border: Border.all(width: 3, color: Color(0xFF6851D6))
  ),
)

Android

iOS

---

The following properties are exposed by MessageComposerStyle:

Property	Description	Code
Ai Icon Tint	Sets the tint color for the AI icon.	aiIconTint: Color?
Attachment Icon Tint	Sets the tint color for the attachment icon.	attachmentIconTint: Color?
Background	Sets the background color of the message composer.	background: Color?
Border	Sets the border properties of the message composer.	border: Border?
Border Radius	Sets the border radius of the message composer.	borderRadius: BorderRadius?
Close Icon Tint	Sets the tint color for the close icon.	closeIconTint: Color?
Content Padding	Sets the padding around the content.	contentPadding: EdgeInsets?
Divider Tint	Sets the tint color for the divider.	dividerTint: Color?
Gradient	Sets the gradient applied to the message composer.	gradient: Gradient?
Height	Sets the height of the message composer.	height: double?
Input Background	Sets the background color of the input field.	inputBackground: Color?
Input Gradient	Sets the gradient applied to the input field.	inputGradient: Gradient?
Input Text Style	Sets the text style for the input field.	inputTextStyle: TextStyle?
Message Input Padding	Sets the padding around the message input field.	messageInputPadding: EdgeInsets?
Placeholder Text Style	Sets the text style for the placeholder text.	placeholderTextStyle: TextStyle?
Send Button Icon	Sets the icon for the send button.	sendButtonIcon: Icon?
Send Button Icon Tint	Sets the tint color for the send button icon.	sendButtonIconTint: Color?
Voice Recording Icon Tint	Sets the tint color for the voice recording icon.	voiceRecordingIconTint: Color?
Width	Sets the width of the message composer.	width: double?

---

2. MediaRecorder Style

To customize the styles of the MediaRecorder widget within the CometChatMessageComposer Widget, use the mediaRecorderStyle. For more details, please refer to MediaRecorder styles.

Dart

CometChatMessageComposer(
  user: user,
  mediaRecorderStyle: MediaRecorderStyle(
    background: Color(0xFFE4EBF5),
    border: Border.all(width: 3, color: Colors.red),
    pauseIconTint: Colors.red,
    playIconTint: Colors.red,
    closeIconTint: Colors.red,
    timerTextStyle: const TextStyle(color: Colors.black, fontFamily: "PlaywritePL"),
    submitIconTint: Colors.red,
    startIconTint: Colors.red,
    stopIconTint: Colors.red,
  ),
)

---

3. AI Options Style

To customize the styles of the AI Options widget within the CometChatMessageComposer Widget, use the aiOptionStyle.

Dart

CometChatMessageComposer(
  user: user,
  aiOptionStyle: AIOptionsStyle(
    background: Color(0xFFE4EBF5),
    border: Border.all(width: 3, color: Colors.red),
  )
)

---

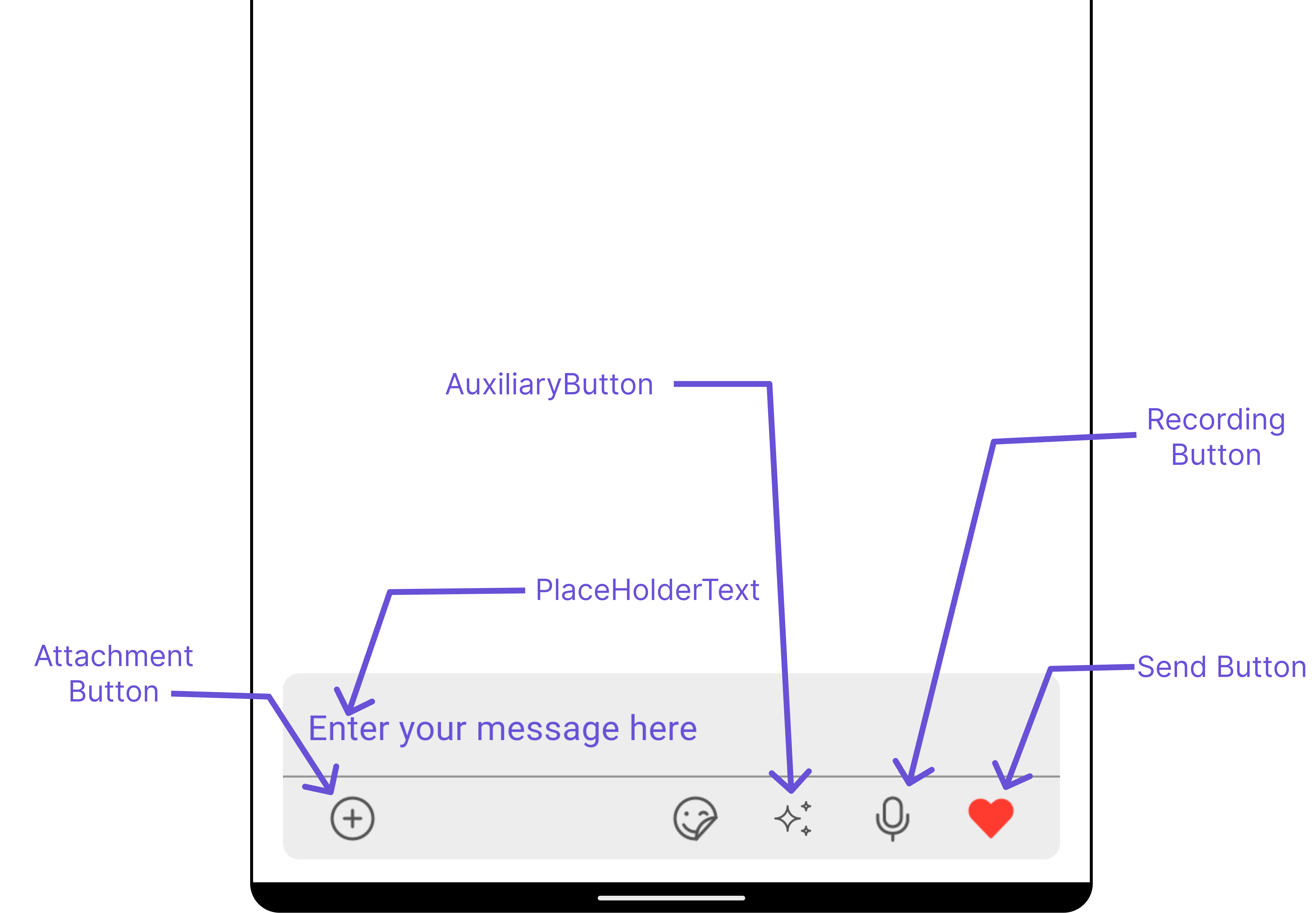

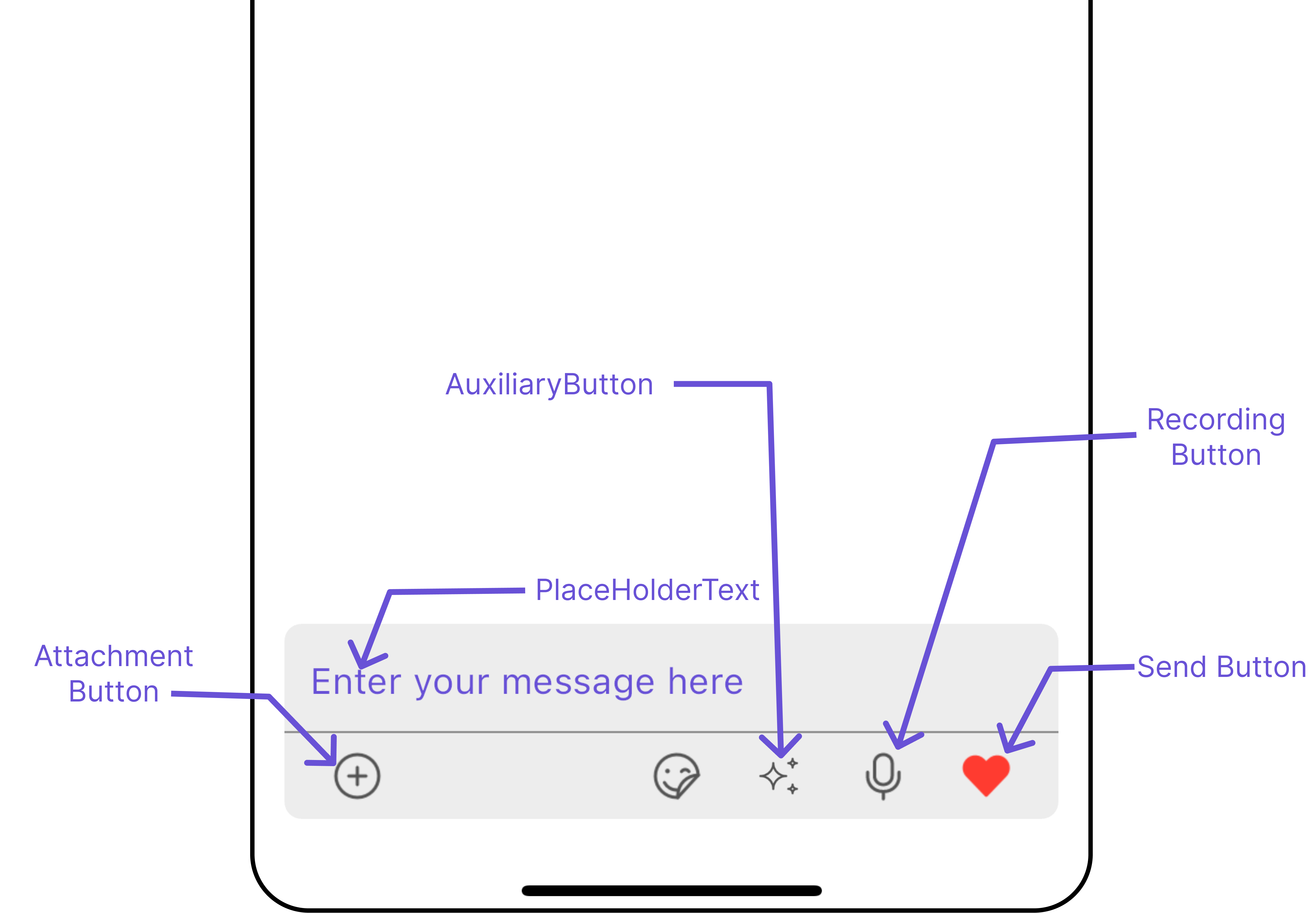

Functionality

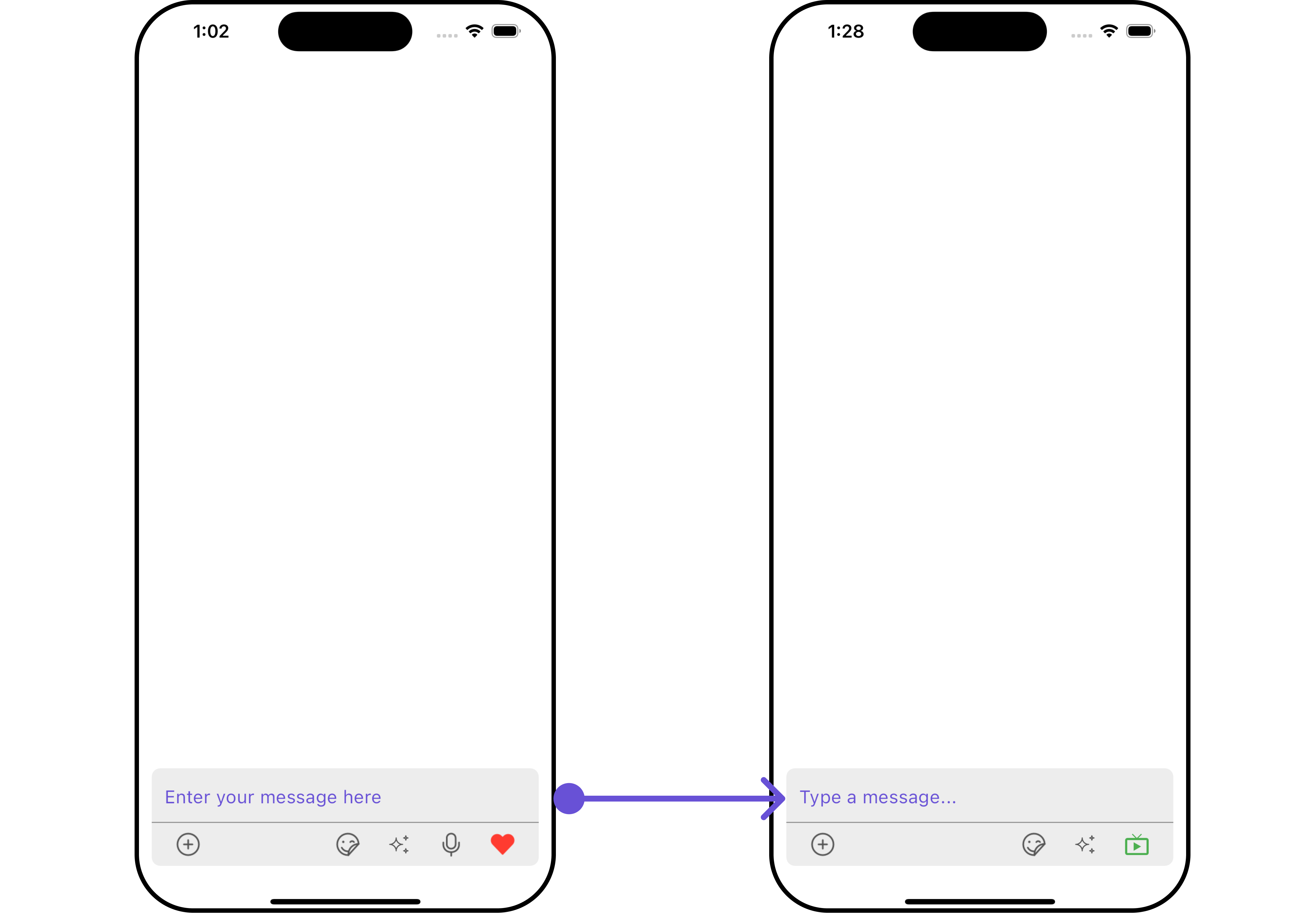

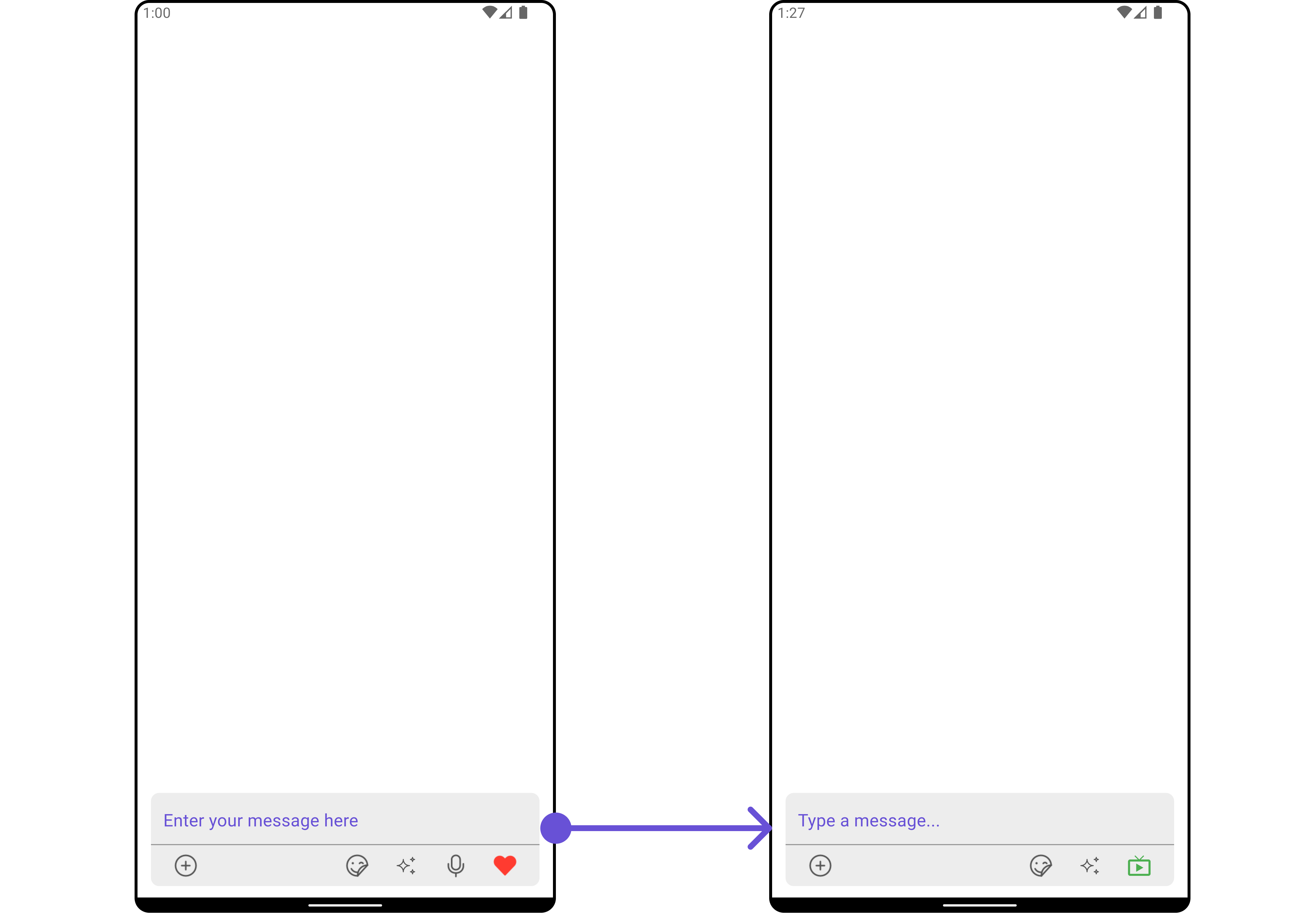

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Android

iOS

Dart

CometChatMessageComposer(
  user: user,
  placeholderText: "Type a message...",
  liveReactionIcon: const Icon(Icons.live_tv, color: Colors.green,),
  hideVoiceRecording: true,
  disableMentions: true,
)

Android

iOS

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
Ai Icon	Sets the AI icon.	aiIcon: Icon?
Ai Icon Url	Sets the URL for the AI icon.	aiIconURL: String?
Attachment Icon	Sets the icon for attachments.	attachmentIcon: Icon?
Attachment Icon Url	Sets the URL for the attachment icon.	attachmentIconURL: String?
Attachment Options	Sets the options for attachment actions.	attachmentOptions: ComposerActionsBuilder?
Auxiliary Buttons Alignment	Sets the alignment for auxiliary buttons.	auxiliaryButtonsAlignment: Alignment?
Custom Sound For Message	Sets the custom sound for messages.	customSoundForMessage: String?
Delete Icon	Sets the icon for the delete action.	deleteIcon: Icon?
Disable Mentions	Disables mentions in the message composer.	disableMentions: bool?
Disable Sound For Messages	Disables sound notifications for messages.	disableSoundForMessages: bool
Disable Typing Events	Disables typing events.	disableTypingEvents: bool
Live Reaction Icon	Sets the icon for live reactions.	liveReactionIcon: Icon?
Live Reaction Icon Url	Sets the URL for the live reaction icon.	liveReactionIconURL: String?
Max Line	Sets the maximum number of lines for the input field.	maxLine: int?
Pause Icon	Sets the icon for the pause action.	pauseIcon: Icon?
Placeholder Text	Sets the placeholder text for the input field.	placeholderText: String?
Play Icon	Sets the icon for the play action.	playIcon: Icon?
Record Icon	Sets the icon for the record action.	recordIcon: Icon?
Stop Icon	Sets the icon for the stop action.	stopIcon: Icon?
Submit Icon	Sets the icon for the submit action.	submitIcon: Icon?
Text	Sets the initial text for the input field.	text: String?

---

Advanced

For advanced-level customization, you can set custom widgets to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your widgets and then incorporate those into the widget.

---

TextFormatters

Assigns the list of text formatters. If the provided list is not null, it sets the list. Otherwise, it assigns the default text formatters retrieved from the data source. To configure the existing Mentions look and feel check out CometChatMentionsFormatter

Example

Here is the complete example for reference:

Dart

CometChatMessageComposer(
  user: user,
  textFormatters: [
    CometChatMentionsFormatter(
      messageBubbleTextStyle: (theme, alignment,{forConversation = false}) =>
          TextStyle(
              color: alignment==BubbleAlignment.left? Colors.orange : Colors.pink,
              fontSize: 14,
              fontWeight: FontWeight.bold
          ),
    )
  ],
)

Android

iOS

---

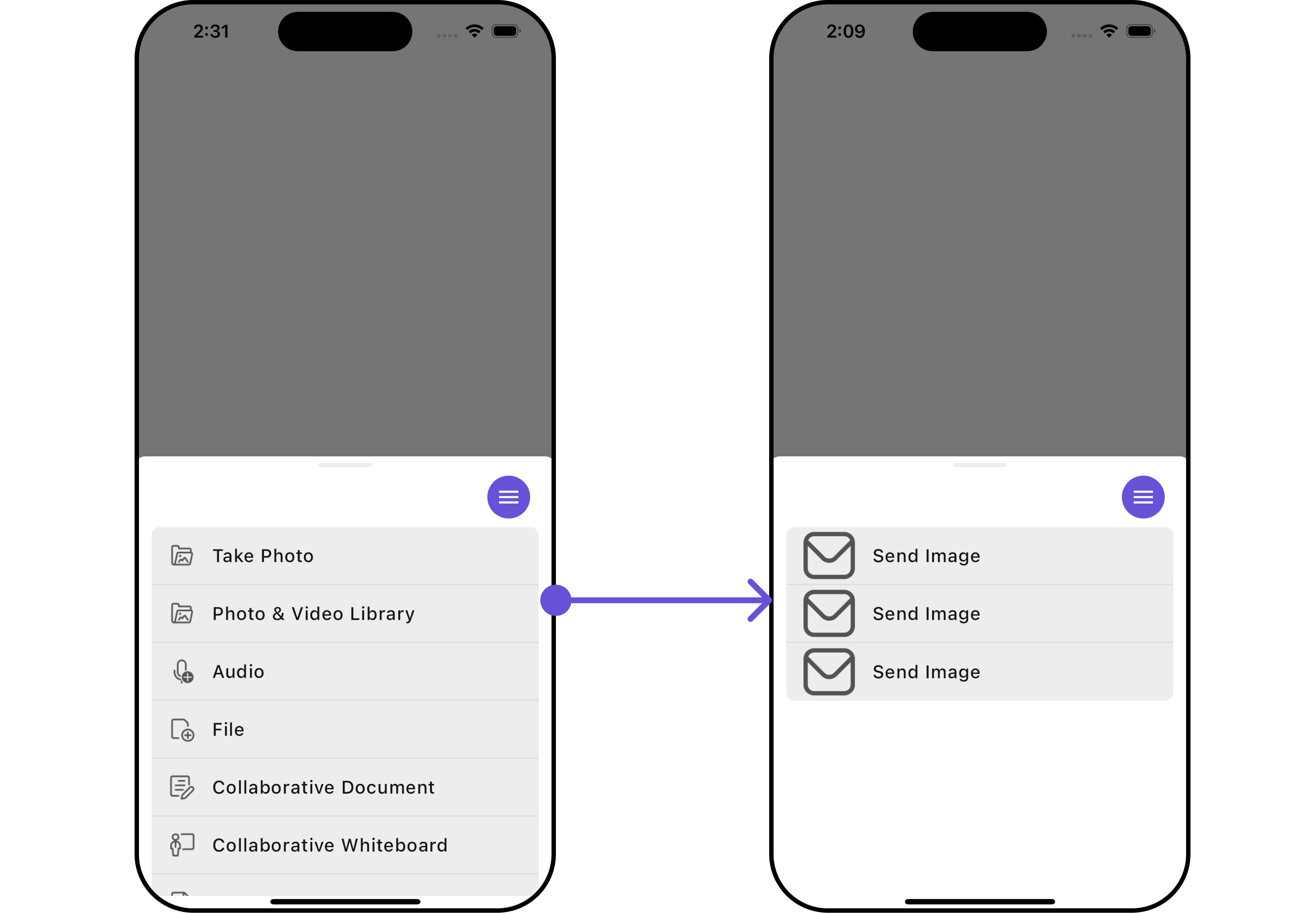

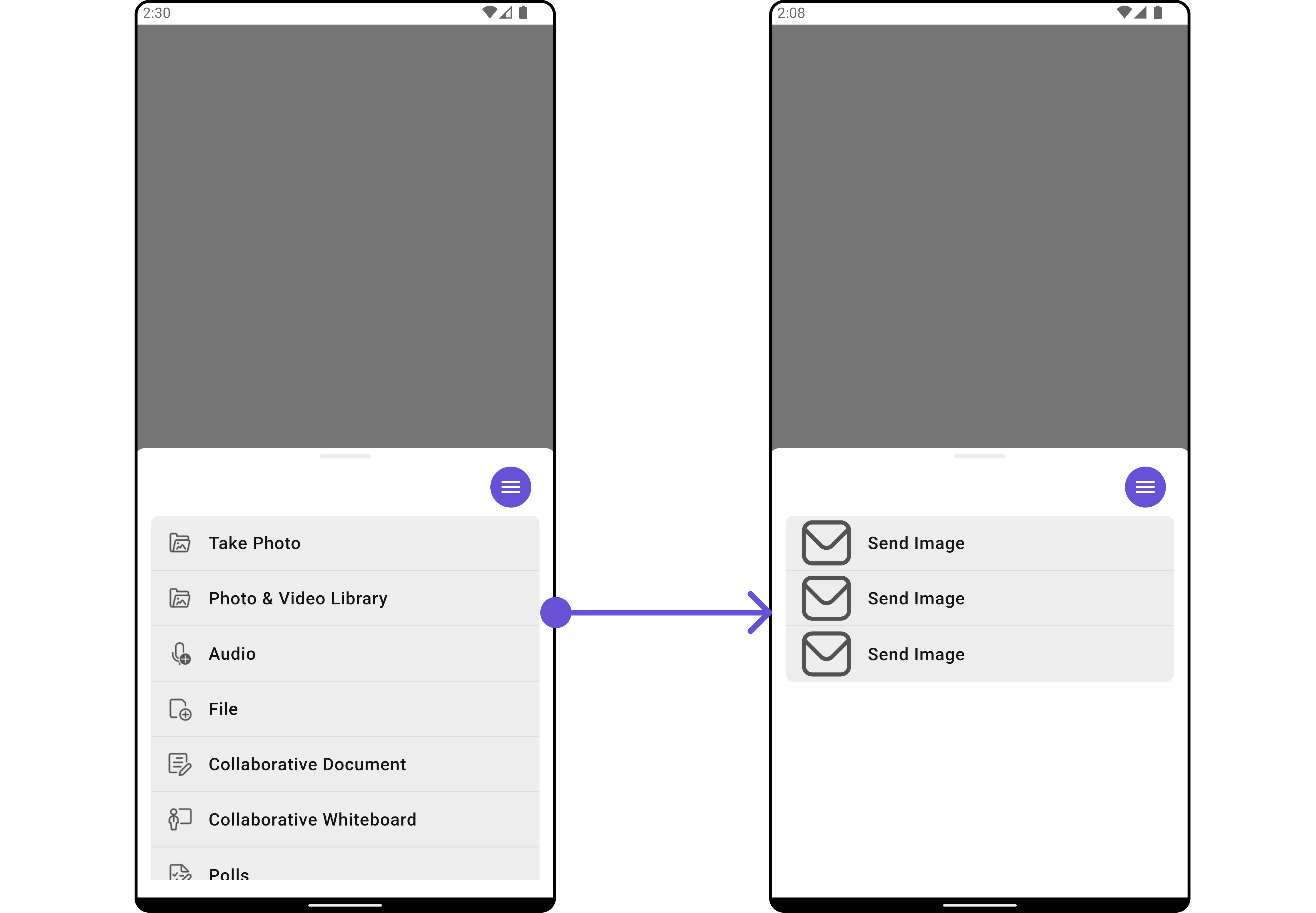

AttachmentOptions

By using attachmentOptions, you can set a list of custom MessageComposerActions for the CometChatMessageComposer Widget. This will override the existing list of MessageComposerActions.

Example

Here is the complete example for reference:

Dart

CometChatMessageComposer(
  user: user,
  attachmentOptions: (context, user, group, id) {
    return [
      CometChatMessageComposerAction(
        id: 'opt1',
        title: "Send Image",
        iconUrl: "assets/img/envelope.png",
        onItemClick: (BuildContext context, User? user, Group? group) {
          // TODO("Not yet implemented")
        }
      ),
      CometChatMessageComposerAction(
          id: 'opt1',
          title: "Send Image",
          iconUrl: "assets/img/envelope.png",
          onItemClick: (BuildContext context, User? user, Group? group) {
            // TODO("Not yet implemented")
          }
      ),
      CometChatMessageComposerAction(
          id: 'opt1',
          title: "Send Image",
          iconUrl: "assets/img/envelope.png",
          onItemClick: (BuildContext context, User? user, Group? group) {
            // TODO("Not yet implemented")
          }
      ),
    ];
  },
)

Android

iOS

---

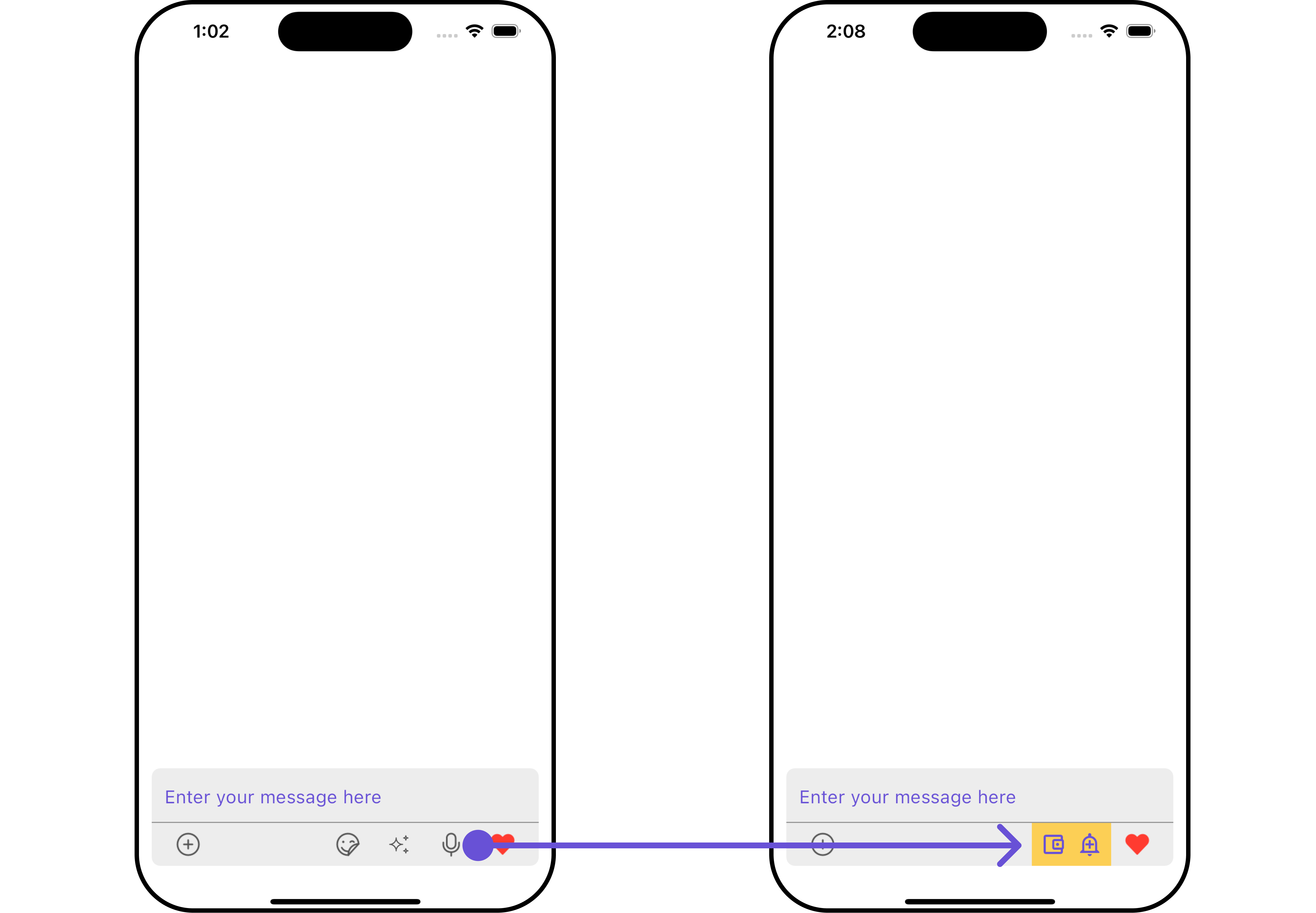

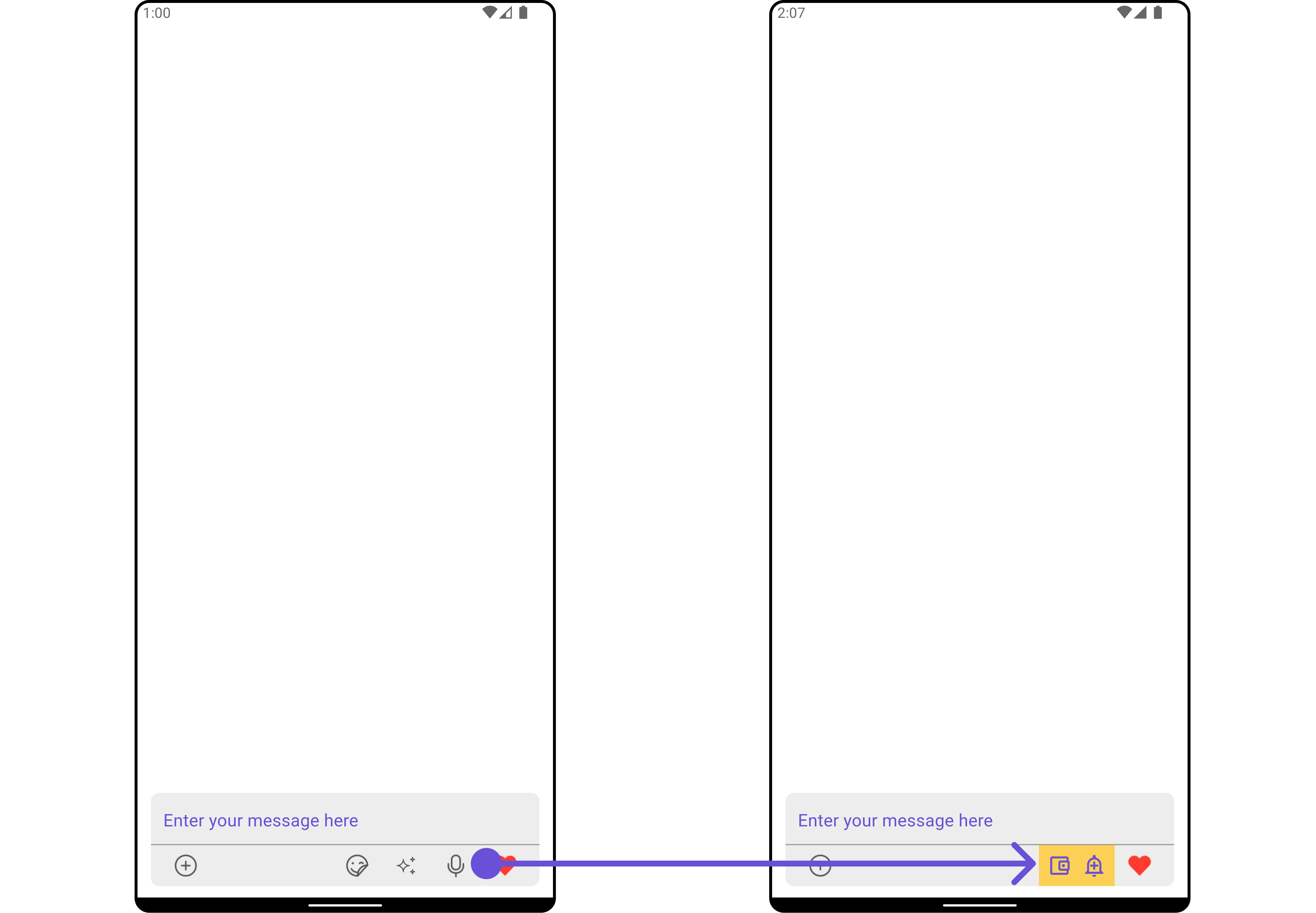

AuxiliaryButton Widget

You can insert a custom widget into the CometChatMessageComposer widget to add additional functionality using the following method.

Example

Here is the complete example for reference:

Dart

CometChatMessageComposer(
    user: user,
    auxiliaryButtonView: (context, user, group, id) {
      return Container(
        color: Colors.yellow,
        padding: const EdgeInsets.all(8),
        child: const Row(
          children: [
            Icon(Icons.account_balance_wallet_outlined, color: Color(0xFF6851D6)),
            SizedBox(width: 10,),
            Icon(Icons.add_alert_outlined, color: Color(0xFF6851D6)),
          ],
        ),
      );
    }
)

Android

iOS

---

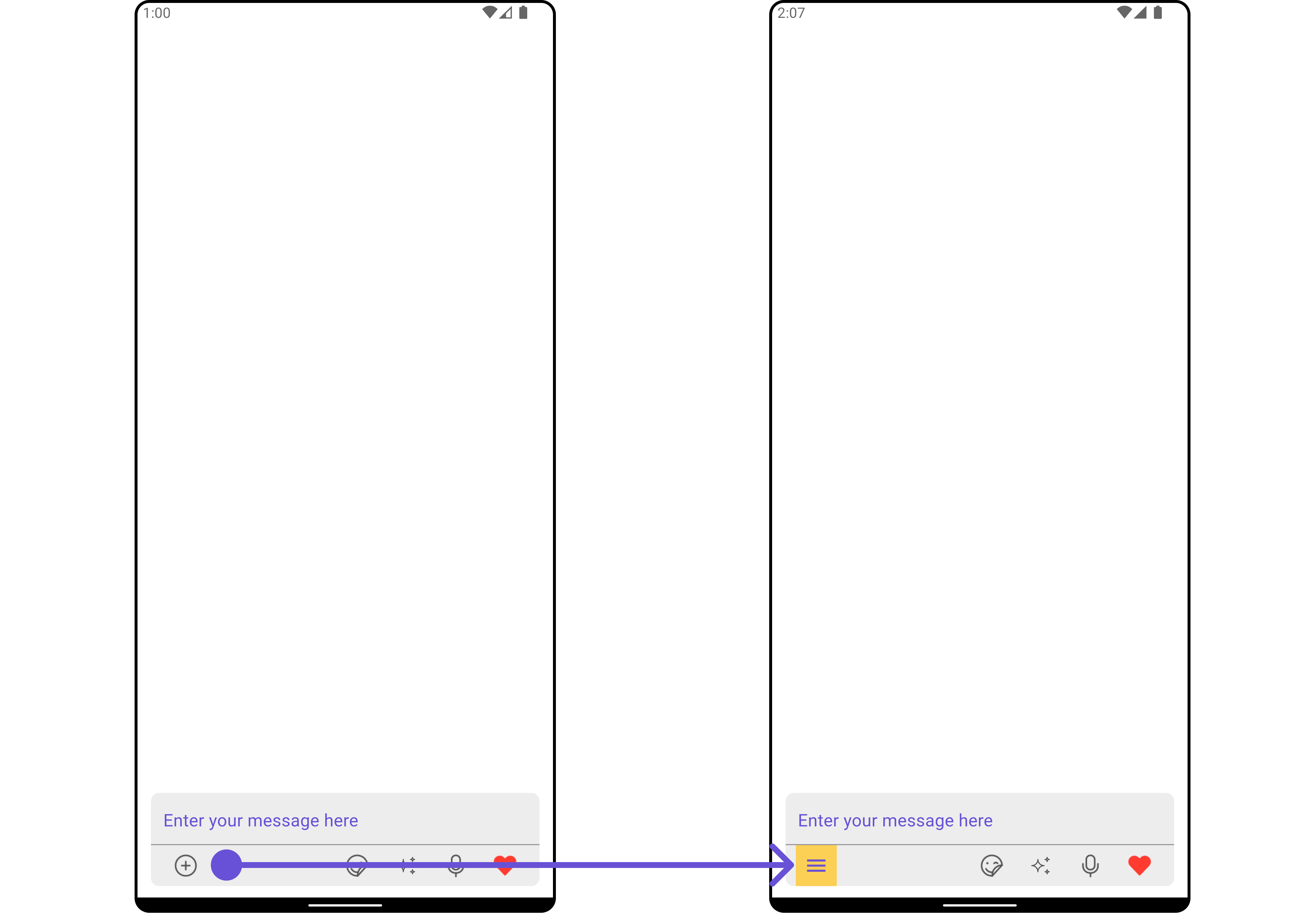

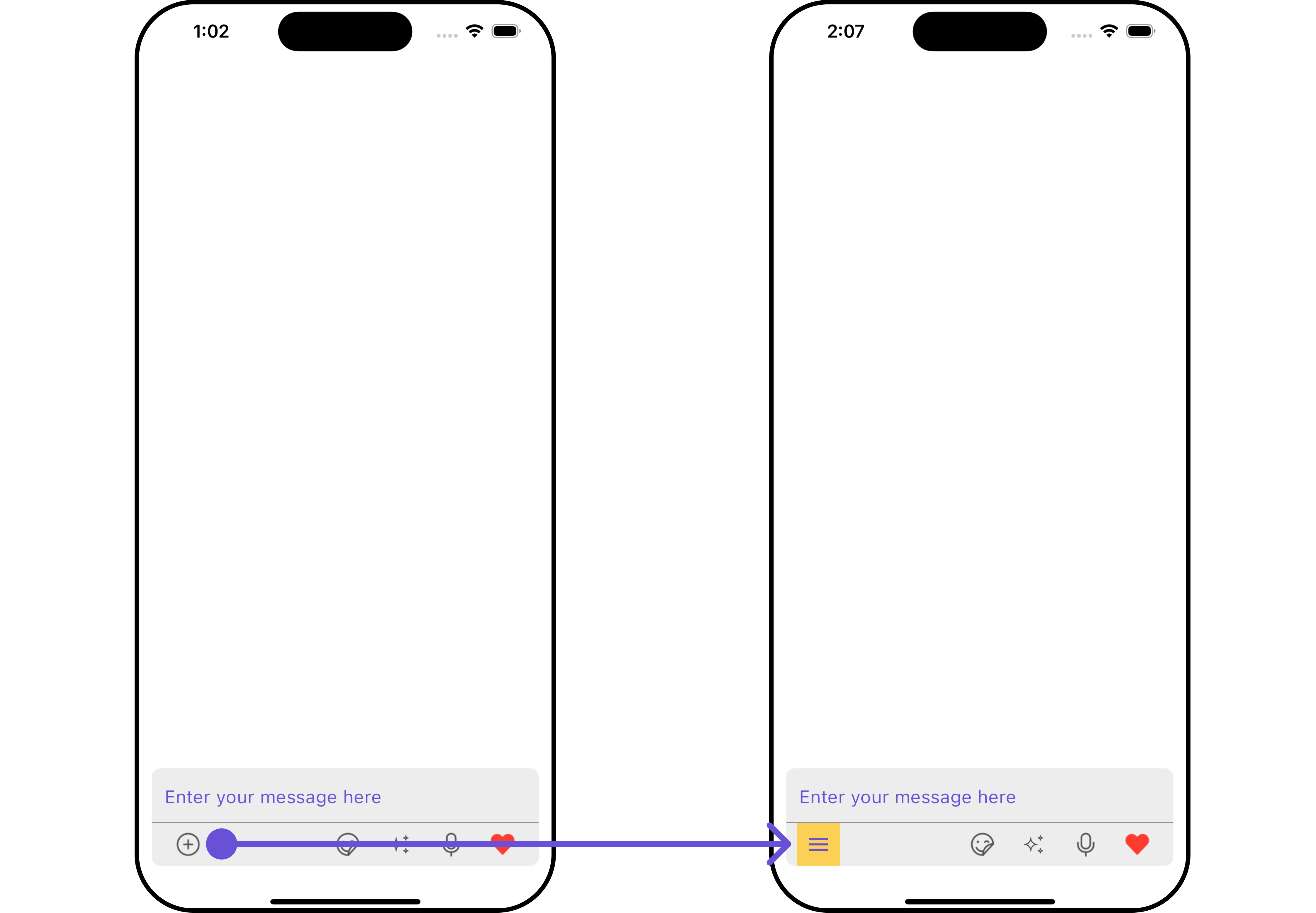

SecondaryButton Widget

You can add a custom widget into the SecondaryButton widget for additional functionality using the below method.

Example

Here is the complete example for reference:

Dart

CometChatMessageComposer(
    user: user,
    secondaryButtonView: (context, user, group, id) {
      return Container(
        color: Colors.yellow,
        padding: const EdgeInsets.all(8),
        child: const Icon(Icons.menu, color: Color(0xFF6851D6)),
      );
    },
)

Android

iOS

---

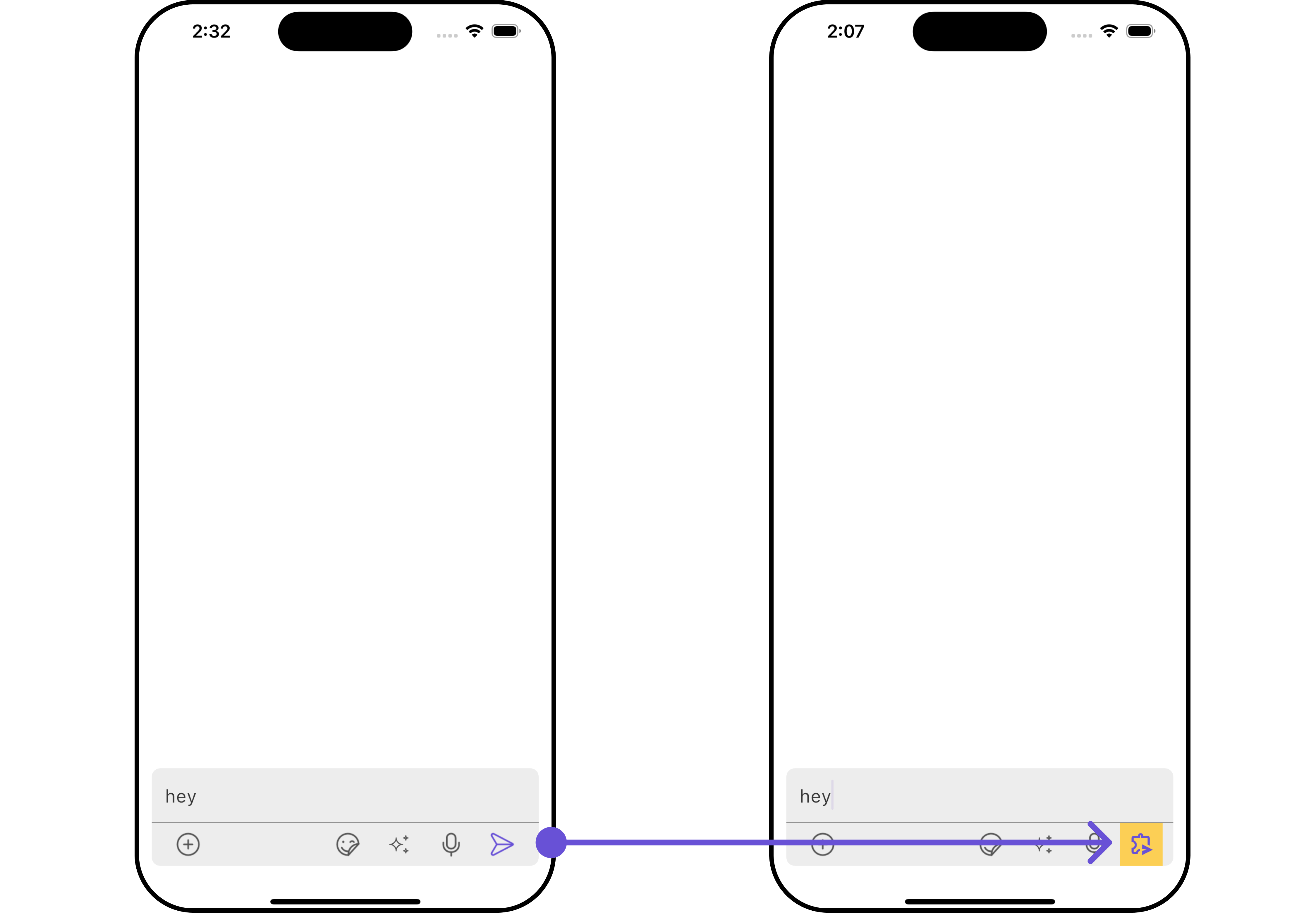

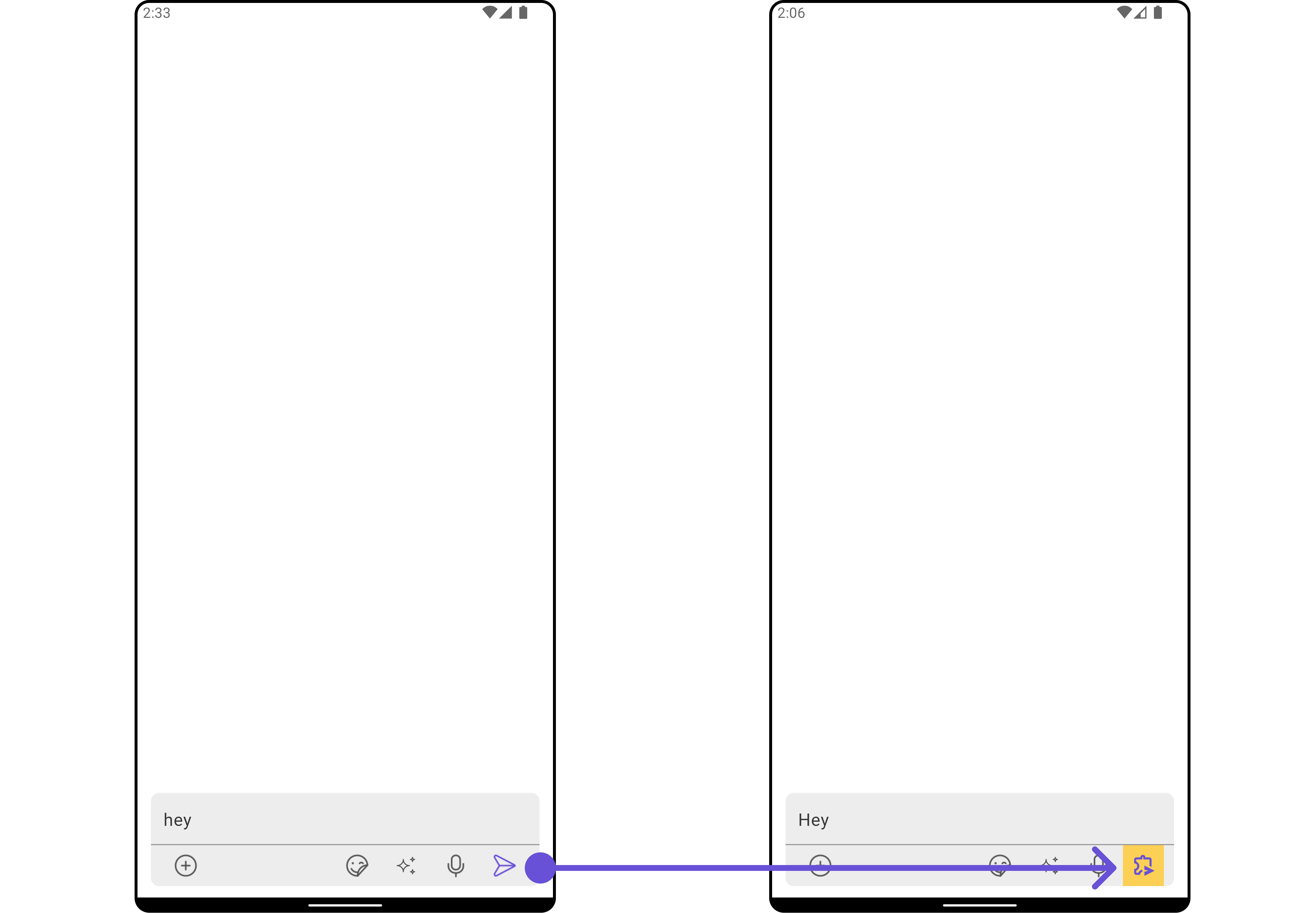

SendButton Widget

You can set a custom widget in place of the already existing send button widget. Using the following method.

Example

Here is the complete example for reference:

Dart

CometChatMessageComposer(
  user: user,
  sendButtonView: Container(
    color: Colors.yellow,
    padding: const EdgeInsets.all(8),
    child: const Icon(Icons.send_time_extension_outlined, color: Color(0xFF6851D6)),
  ),
)

Android

iOS

---

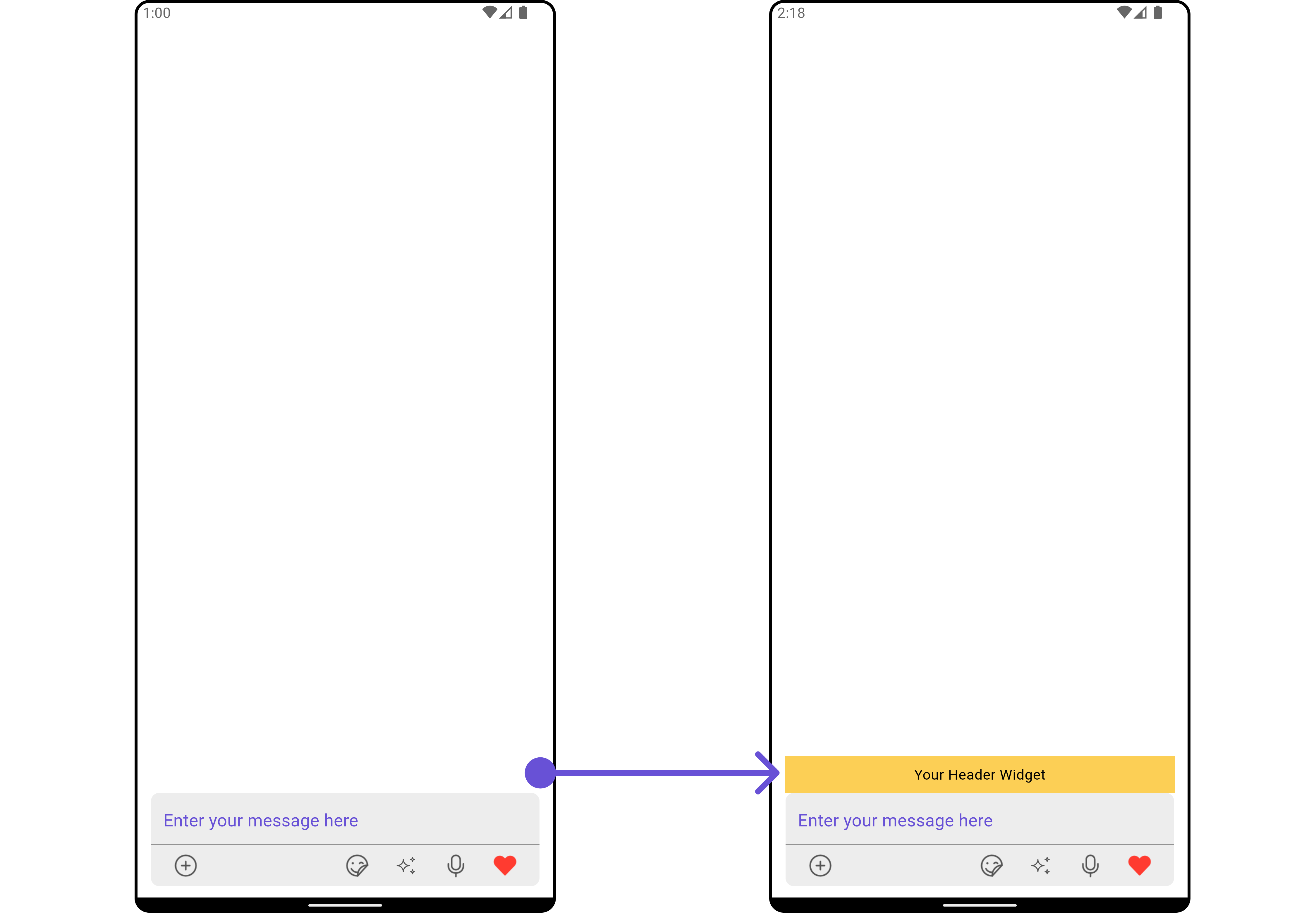

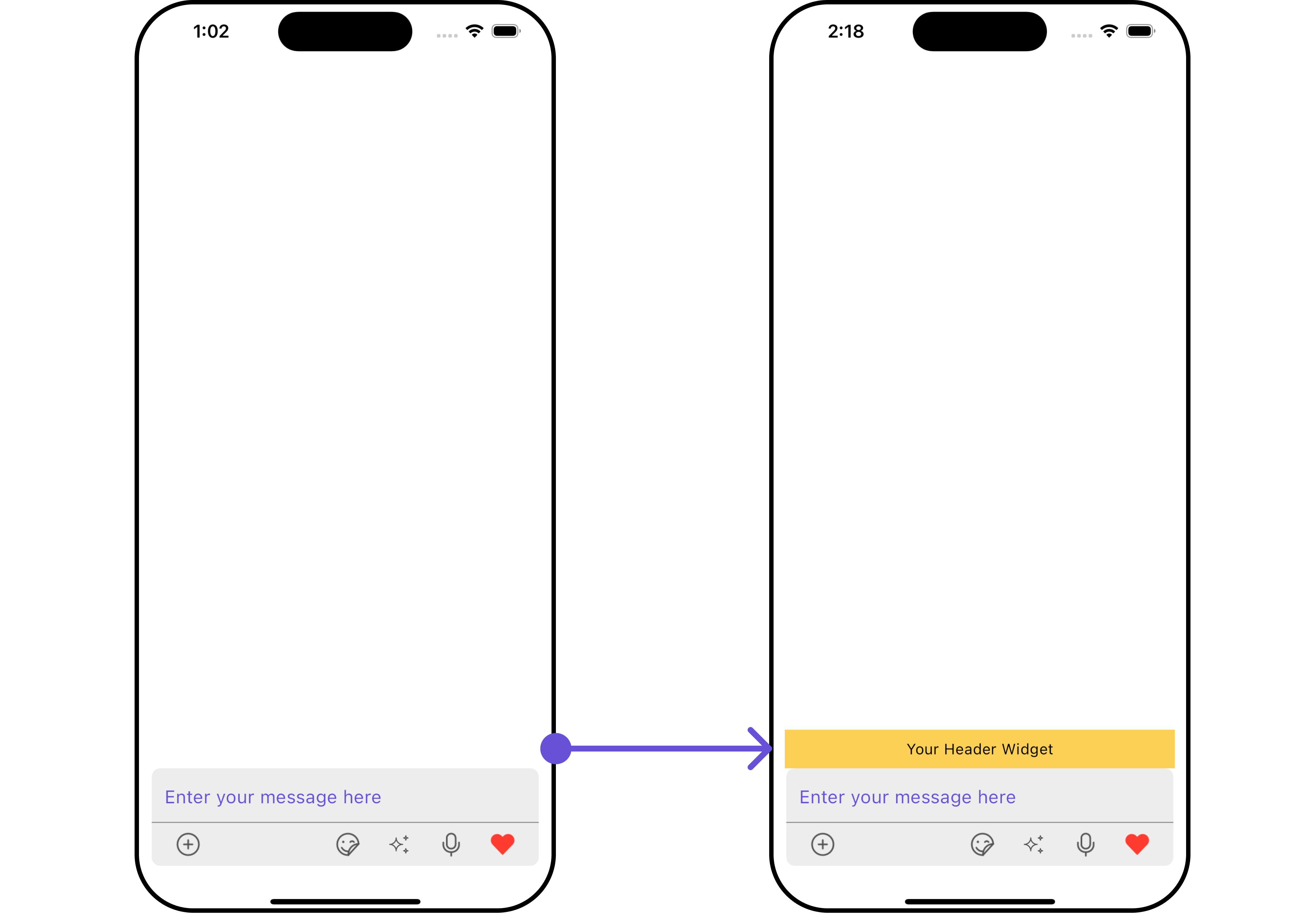

Header Widget

You can set custom headerView to the CometChatMessageComposer widget using the following method

Example

Here is the complete example for reference:

Dart

CometChatMessageComposer(
  user: user,
  headerView: (context, user, group, id) {
    return Container(
      width: MediaQuery.of(context).size.width/1.08,
      color: Colors.yellow,
      padding: const EdgeInsets.all(8),
      child: const Center(child: Text("Your Header Widget")),
    );
  },
)

Android

iOS

---

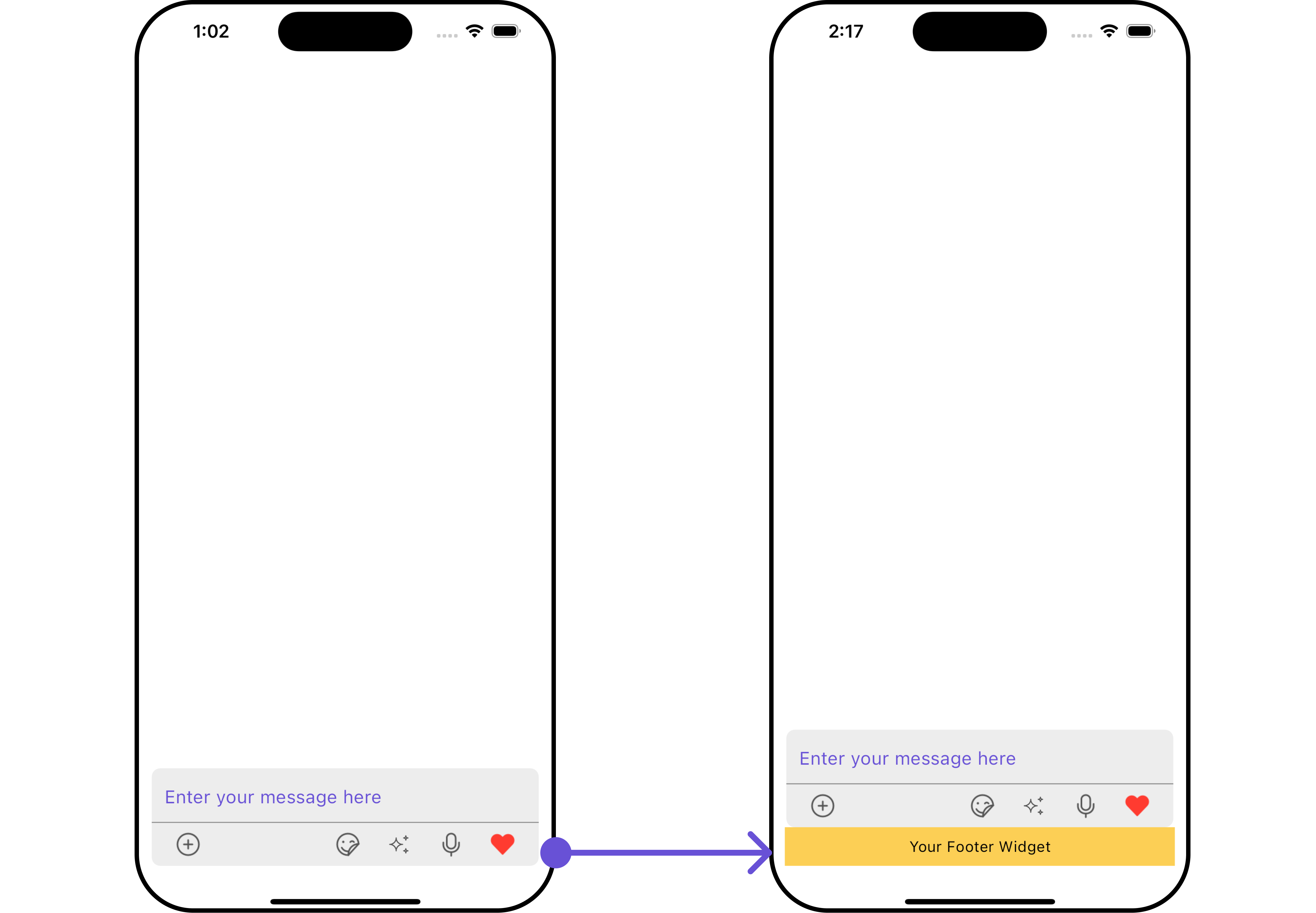

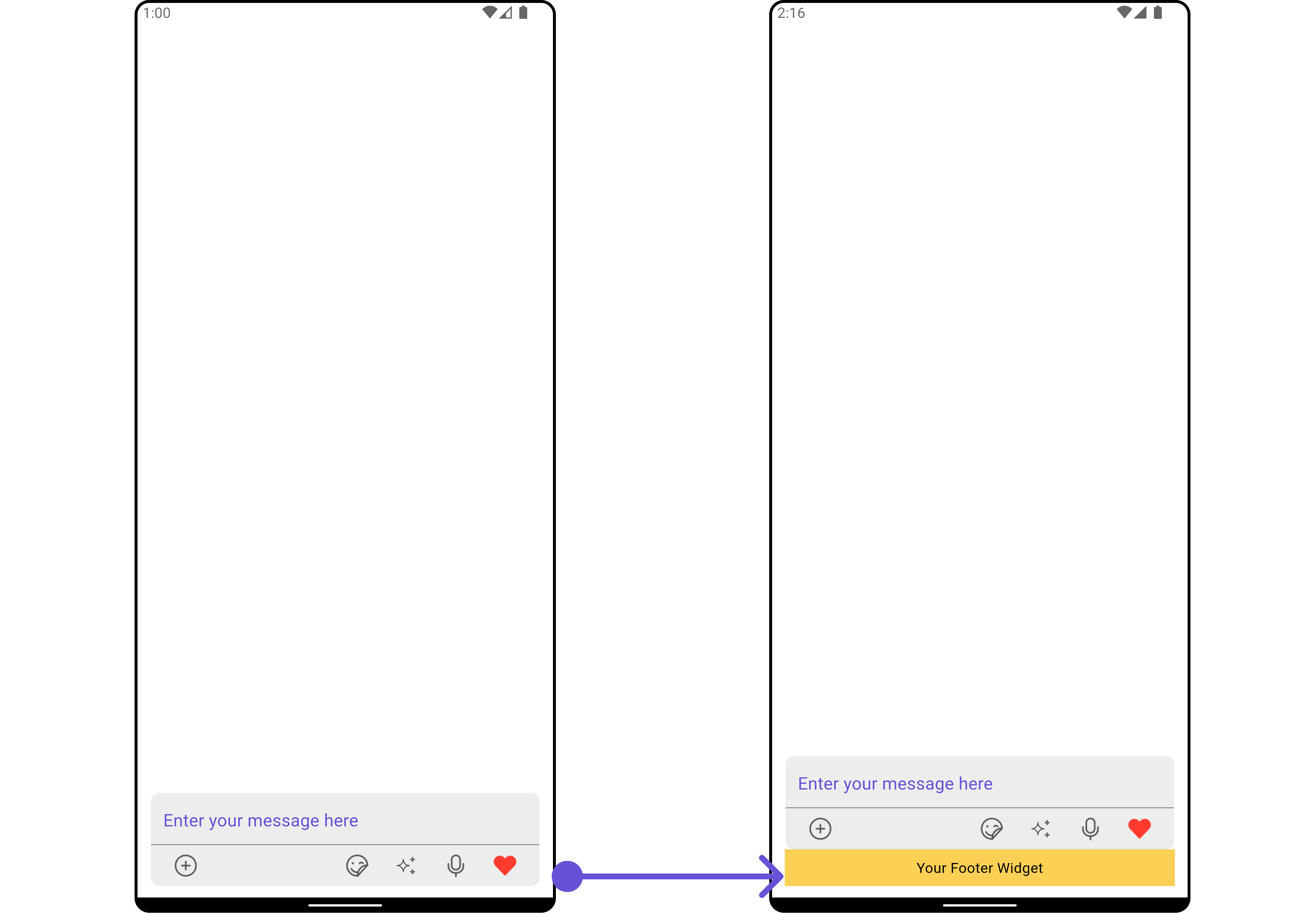

Footer Widget

You can set a custom footer widget to the CometChatMessageComposer widget using the following method:

Example

Here is the complete example for reference:

Dart

CometChatMessageComposer(
  user: user,
  footerView: (context, user, group, id) {
    return Container(
      width: MediaQuery.of(context).size.width/1.08,
      color: Colors.yellow,
      padding: const EdgeInsets.all(8),
      child: const Center(child: Text("Your Footer Widget")),
    );
  },
)

Android

iOS

---
