Overview

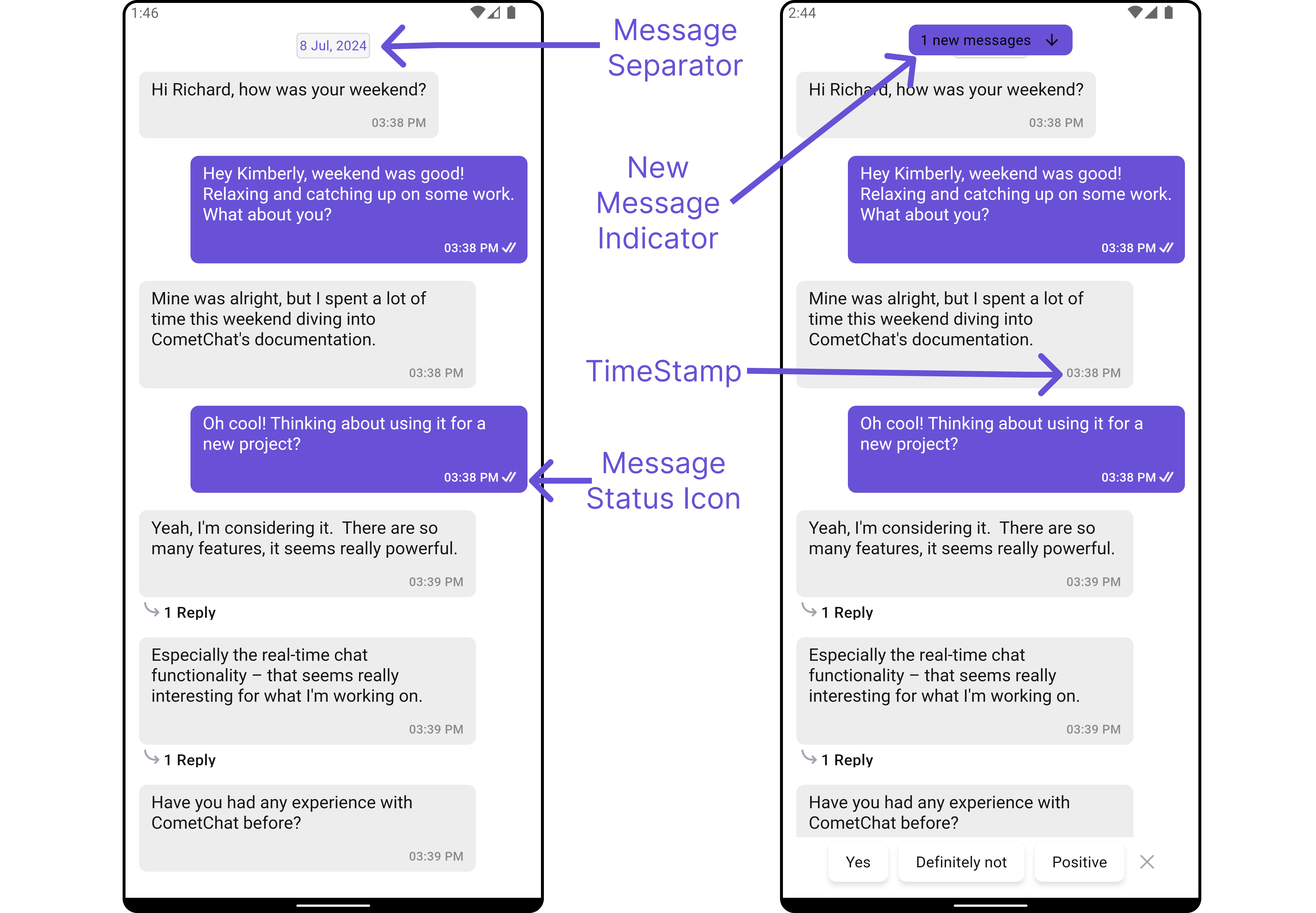

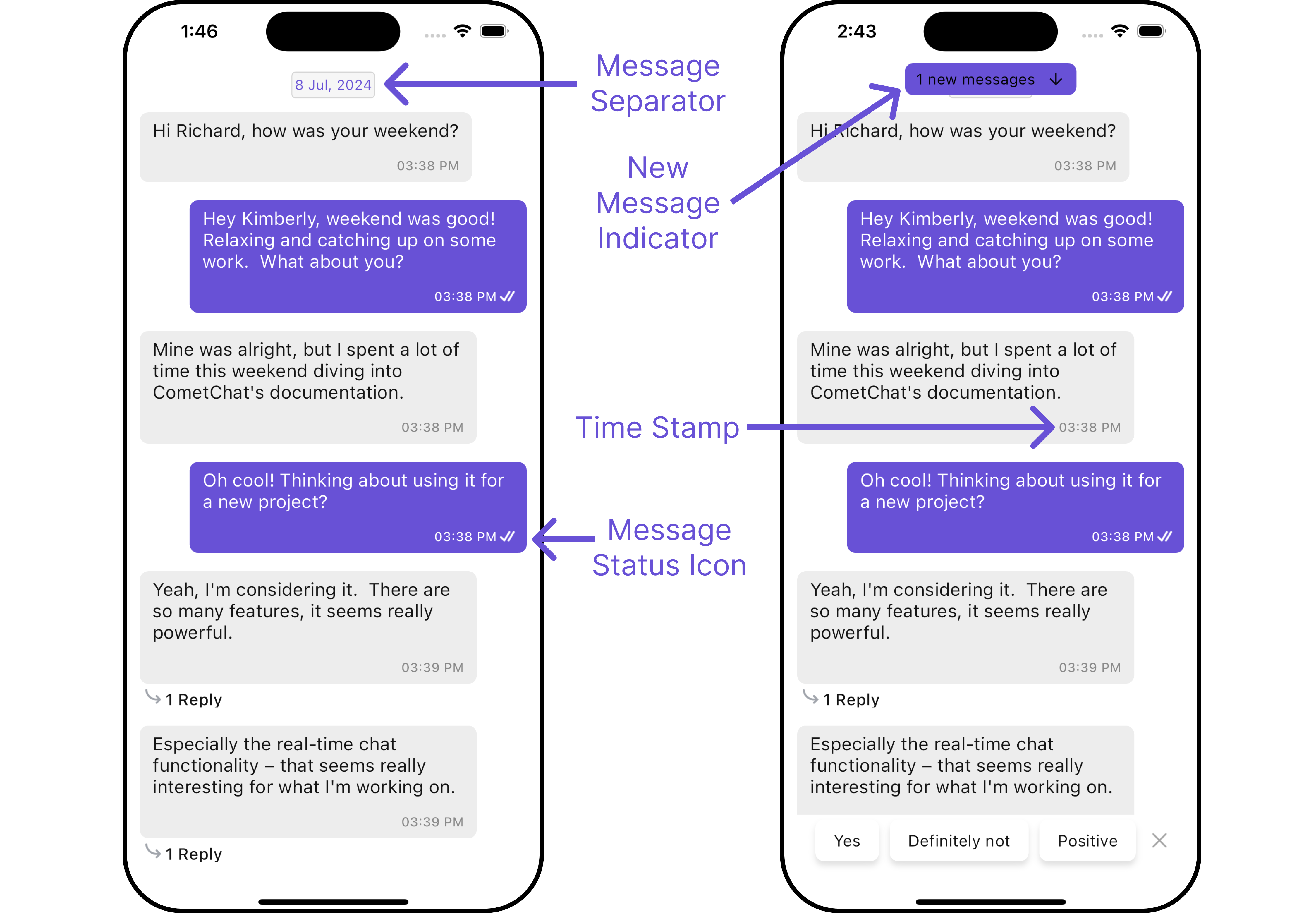

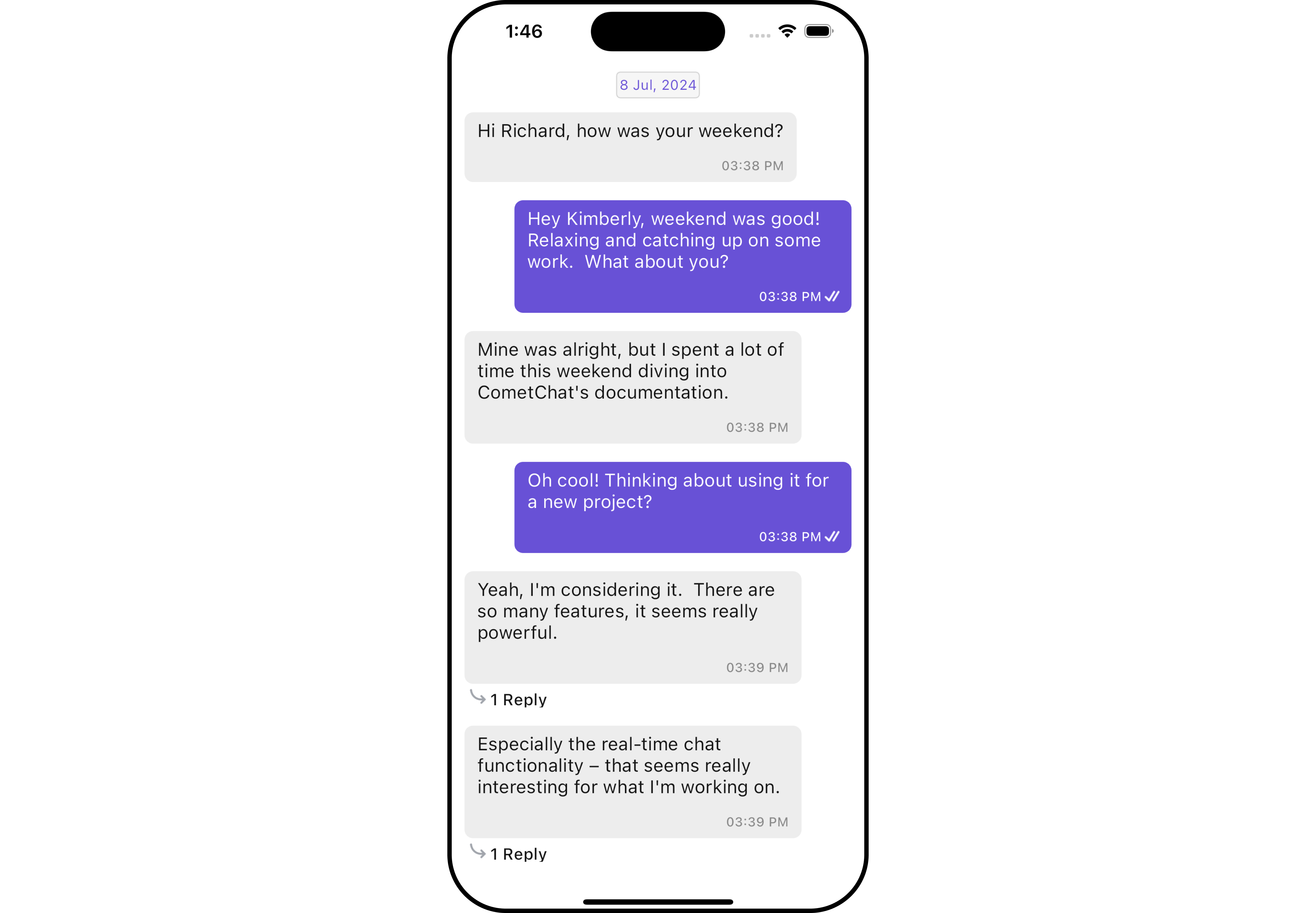

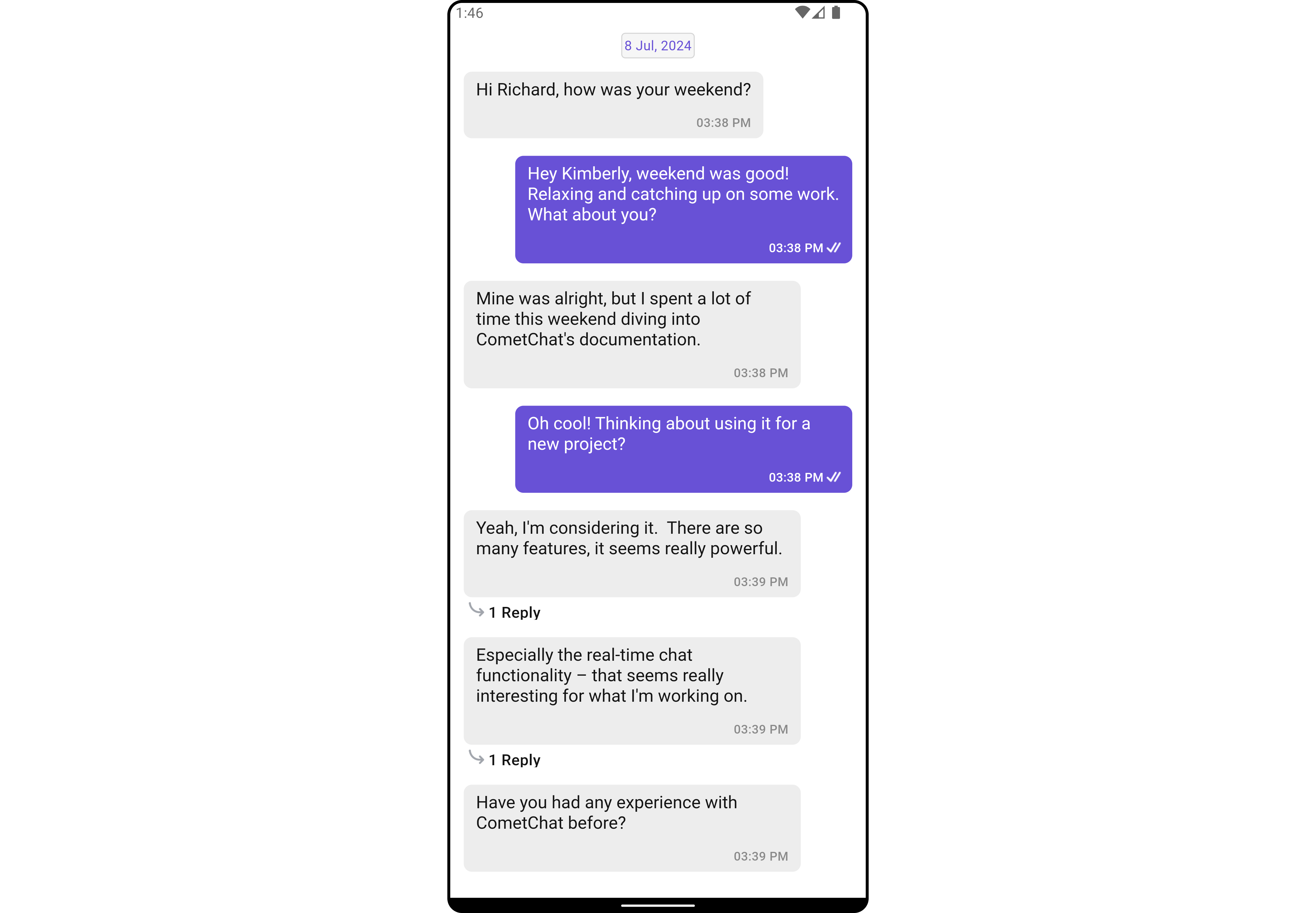

MessageList is a Composite Widget that displays a list of messages and effectively manages real-time operations. It includes various types of messages such as Text Messages, Media Messages, Stickers, and more.

MessageList is primarily a list of the base widget MessageBubble. The MessageBubble Widget is utilized to create different types of chat bubbles depending on the message type.

Android

iOS

Usage

Integration

You can launch CometChatMessageList directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch CometChatMessageList

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => CometChatMessageList())); // A user or group object is required to launch this widget.

2. Embedding CometChatMessageList as a Widget in the build Method

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class MessageList extends StatefulWidget {
  const MessageList({super.key});

  @override
  State<MessageList> createState() => _MessageListState();
}

class _MessageListState extends State<MessageList> {

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        body: SafeArea(
            child: CometChatMessageList() // A user or group object is required to launch this widget.
        )
    );
  }
}

---

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

1. onThreadRepliesClick

onThreadRepliesClick is triggered when you click on the threaded message bubble. The onThreadRepliesClick action doesn’t have a predefined behavior. You can override this action using the following code snippet.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  onThreadRepliesClick: (message, context, {bubbleView}) {
    // TODO("Not yet implemented")
  },
)

---

2. onError

You can customize this behavior by using the provided code snippet to override the onError and improve error handling.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  onError: (e) {
    // TODO("Not yet implemented")
  },
)

---

3. onReactionTap

The listener to be set for reacting to a message.Pass a non-null instance of onReactionTap to enable it.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  reactionsConfiguration: ReactionsConfiguration(
    onReactionTap: (String? reaction) {
      // TODO("Not yet implemented")
    },
  ),
)

---

Filters

You can adjust the MessagesRequestBuilder in the MessageList Widget to customize your message list. Numerous options are available to alter the builder to meet your specific needs. For additional details on MessagesRequestBuilder, please visit MessagesRequestBuilder.

In the example below, we are applying a filter to the messages based on a search substring and for a specific user. This means that only messages that contain the search term and are associated with the specified user will be displayed

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  messagesRequestBuilder: MessagesRequestBuilder()
    ..uid = user.uid
    ..searchKeyword = "searchKeyword"
)

The following parameters in messageRequestBuilder will always be altered inside the message list

1. UID
2. GUID
3. types
4. categories

---

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The MessageList Widget does not emit any events of its own.

---

Customization

To fit your app’s design requirements, you can customize the appearance of the conversation widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

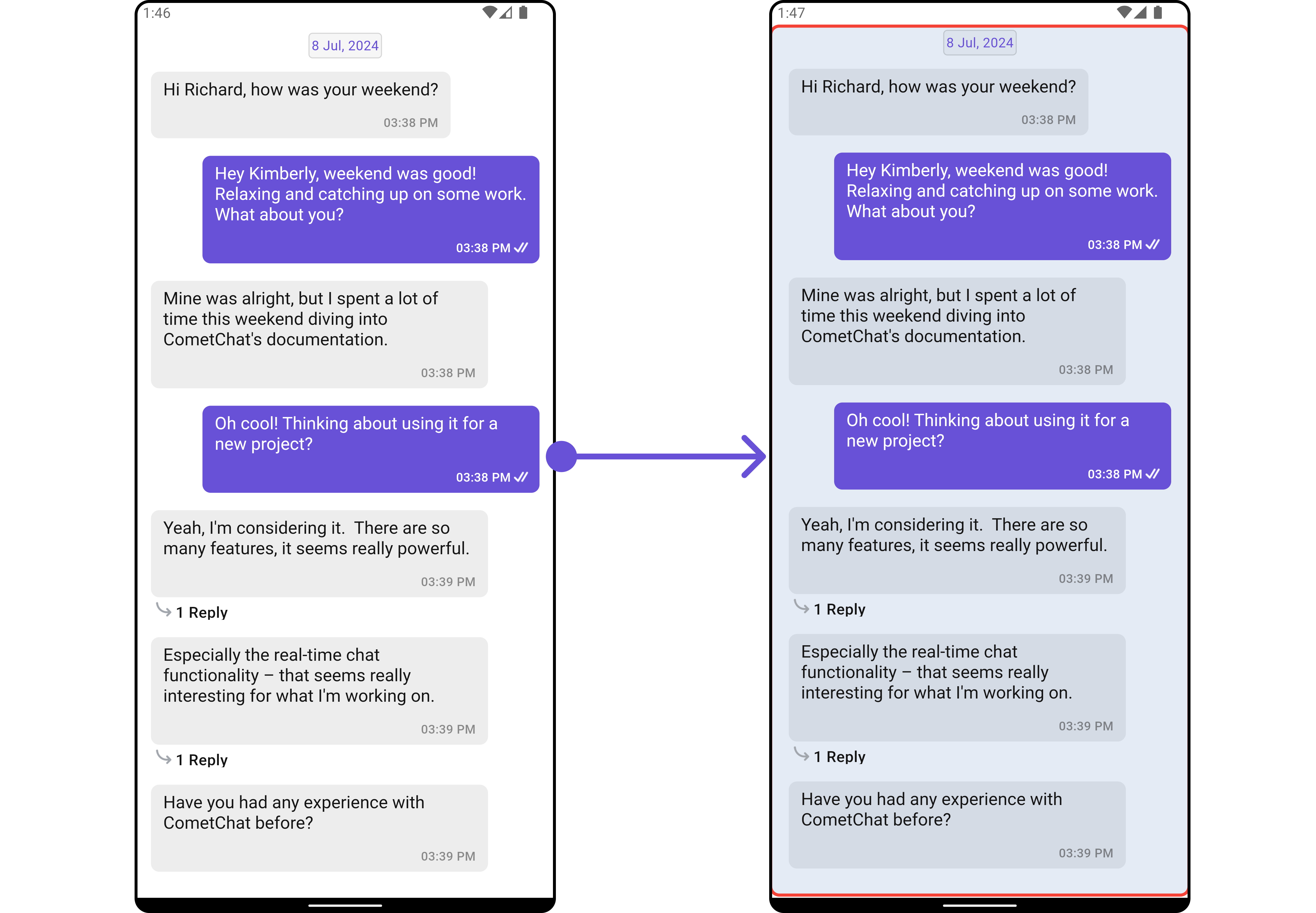

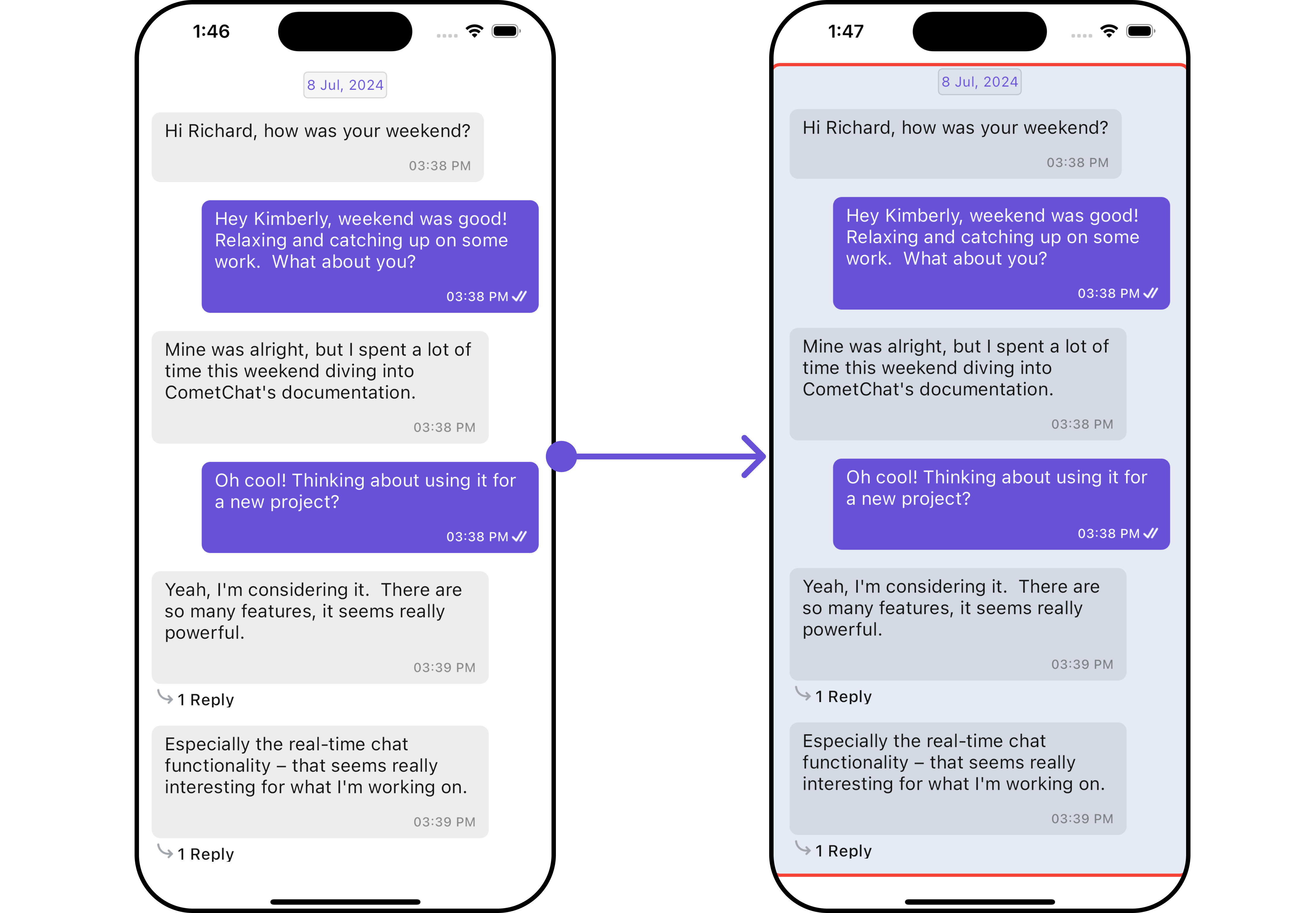

1. MessageList Style

You can set the messageListStyle to the CometChatMessageList Widget to customize the styling.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  messageListStyle: MessageListStyle(
    background: Color(0xFFE4EBF5),
    border: Border.all(width: 3, color: Colors.red),
    borderRadius: 10,
  ),
)

Android

iOS

List of properties exposed by CometChatMessageList

Property	Description	Code
Background	Background inherited from BaseStyles	background
Border	Border inherited from BaseStyles	border
Border Radius	Border radius inherited from BaseStyles	borderRadius
Content Padding	Padding inside the content area	contentPadding
Empty Text Style	Text style for the empty state message	emptyTextStyle: TextStyle?
Error Text Style	Text style for the error state message	errorTextStyle: TextStyle?
Gradient	Gradient inherited from BaseStyles	gradient
Height	Height inherited from BaseStyles	height
Loading Icon Tint	Tint color for the loading icon	loadingIconTint: Color?
Width	Width inherited from BaseStyles	width

---

2. Avatar Style

To apply customized styles to the Avatar widget in the CometChatGroups widget, you can use the following code snippet. For further insights on Avatar Styles refer

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  avatarStyle: AvatarStyle(
      border: Border.all(width: 5),
      borderRadius: 20,
      background: Colors.red
  ),
)

---

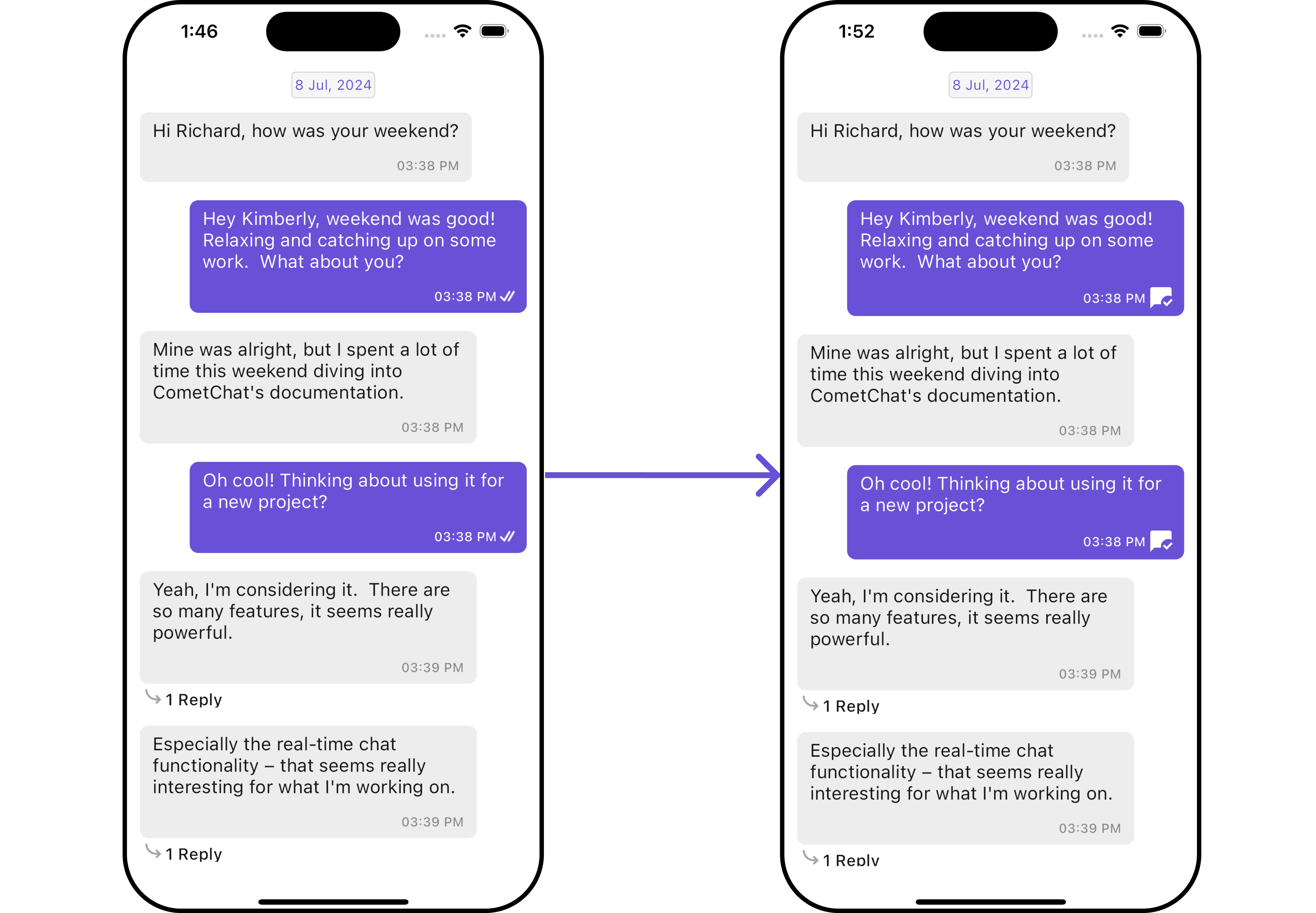

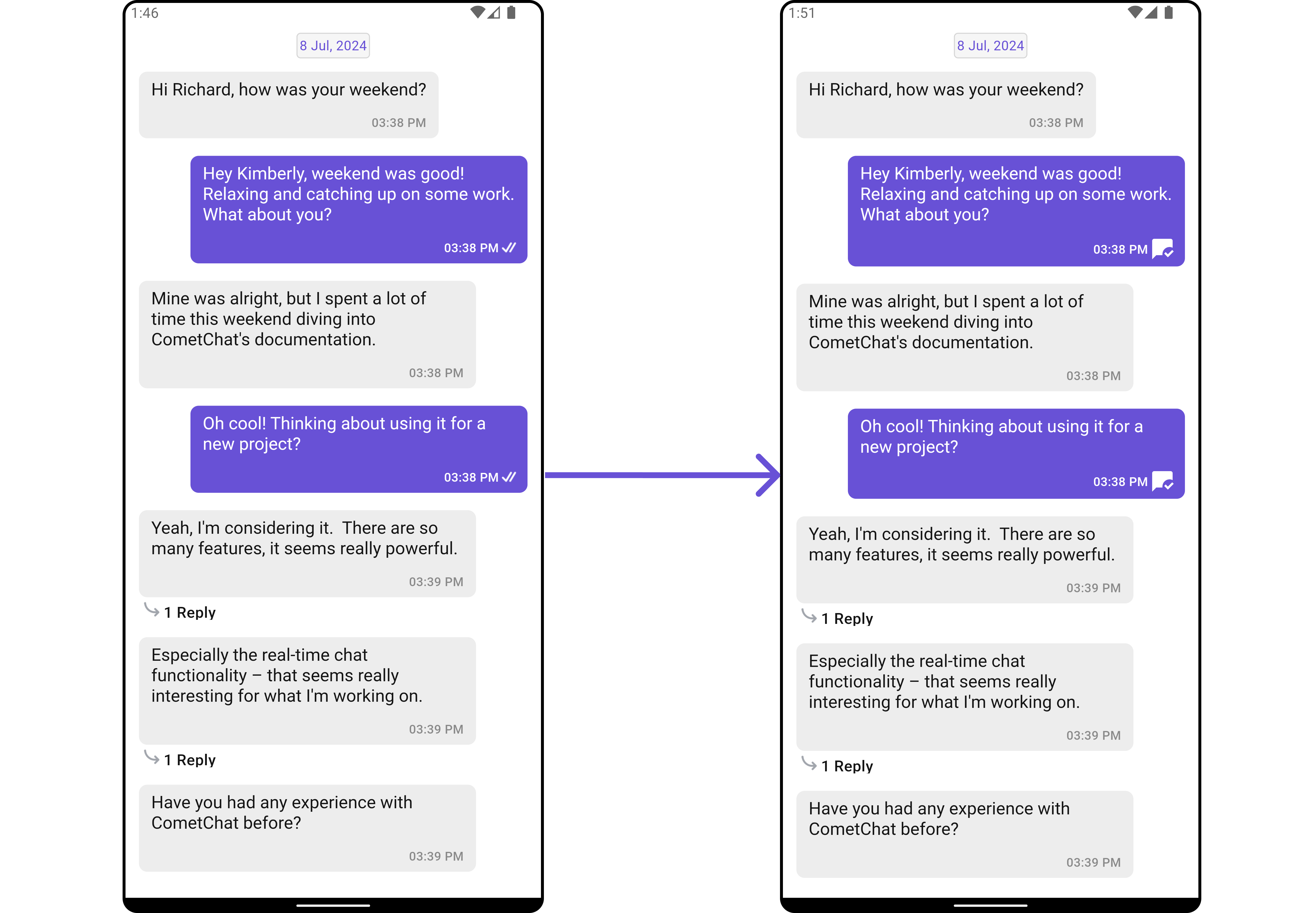

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Android

iOS

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  readIcon: Icon(Icons.mark_chat_read, color: Colors.white),
)

Android

iOS

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
Add Reaction Icon	Icon for adding reactions	addReactionIcon
Add Reaction Icon Tap	Callback for when the add reaction icon is tapped	addReactionIconTap
Alignment	Alignment for chat messages, default is standard	alignment: ChatAlignment
Custom Sound For Message Package	Custom sound package for messages	customSoundForMessagePackage
Custom Sound For Messages	Custom sound for messages	customSoundForMessages
Date Pattern	Date pattern to be used	datePattern
Date Separator Pattern	Date separator pattern to be used	dateSeparatorPattern
Delivered Icon	Icon indicating message delivery	deliveredIcon
Disable Mentions	Whether mentions are disabled	disableMentions
Disable Reactions	Whether reactions are disabled	disableReactions
Disable Sound For Messages	Whether sound for messages is disabled	disableSoundForMessages
Empty State Text	Text to be displayed in empty state	emptyStateText
Error State Text	Text to be displayed in error state	errorStateText
Favorite Reactions	List of favorite reactions	favoriteReactions
Group	Group object to be displayed	group
Hide Error	Whether error messages are hidden	hideError
Hide Receipt	Used to toggle visibility of message receipts	hideReceipt
Hide Timestamp	Whether message timestamps are hidden	hideTimestamp
New Message Indicator Text	Text for the new message indicator	newMessageIndicatorText
Read Icon	Icon indicating message read	readIcon
Scroll To Bottom On New Messages	Whether to scroll to bottom on receiving new messages	scrollToBottomOnNewMessages
Sent Icon	Icon indicating message sent	sentIcon
Show Avatar	Whether to show avatar, default is true	showAvatar: bool
Theme	Theme to be applied	theme
Timestamp Alignment	Alignment for the message timestamps, default is bottom	timestampAlignment: TimeAlignment
User	User object to be displayed	user
Wait Icon	Icon indicating waiting state	waitIcon

---

Advance

For advanced-level customization, you can set custom views to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your own widget and then incorporate those into the widget.

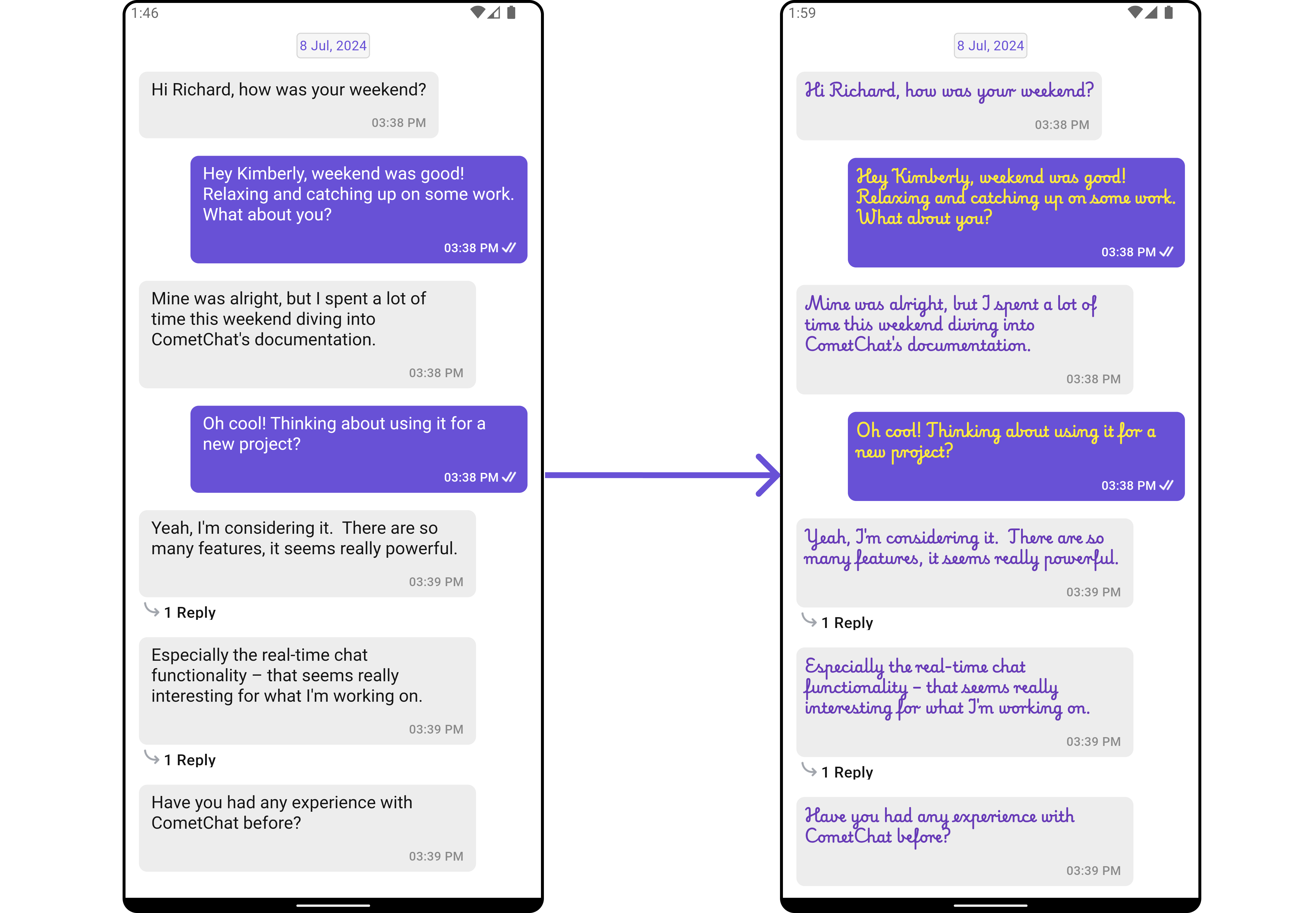

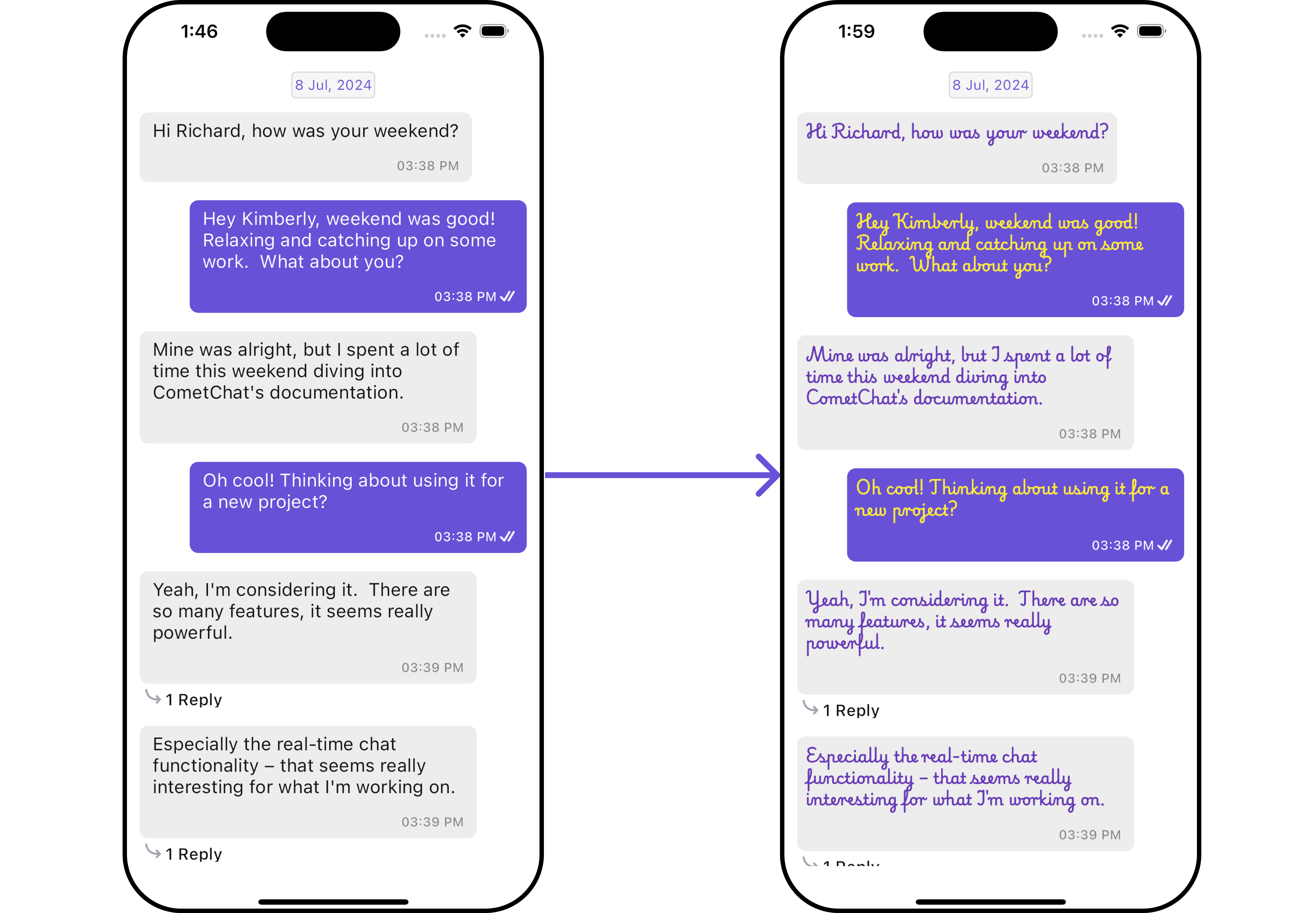

Template

CometChatMessageTemplate is a pre-defined structure for creating message views that can be used as a starting point or blueprint for creating message views often known as message bubbles. For more information, you can refer to CometChatMessageTemplate.

You can set message Templates to MessageList by using the following code snippet

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  templates: Placeholder(); // Replace this placeholder with your custom widget.
)

Example

Here is the complete example for reference:

Dart

getTemplate()

List<CometChatMessageTemplate> getTemplate() {
  // Creating a text template
  CometChatMessageTemplate textTemplate = ChatConfigurator.getDataSource().getTextMessageTemplate(cometChatTheme);
  textTemplate.contentView = (BaseMessage baseMessage, BuildContext buildContext, BubbleAlignment alignment, {AdditionalConfigurations? additionalConfigurations}) {
    return Padding(
      padding: const EdgeInsets.all(8.0),
      child: Text(
        (baseMessage as TextMessage).text,
        style: TextStyle(
          color: alignment == BubbleAlignment.left ? Colors.deepPurple : Colors.yellow,
          fontSize: 14,
          fontWeight: FontWeight.bold,
          fontFamily: "PlaywritePL"
        ),
      ),
    );
  };

  // Creating an audio template
  CometChatMessageTemplate audioTemplate = ChatConfigurator.getDataSource().getAudioMessageTemplate(cometChatTheme);

  // Creating a custom message template
  CometChatMessageTemplate customMessageTemplate = CometChatMessageTemplate(
    type: 'custom_template',
    category: 'custom_category',
    bubbleView: (message, context, alignment) => const Text('this is a custom message template'),
  );

  // custom list of templates
  List<CometChatMessageTemplate> messageTypes = [
    textTemplate,
    audioTemplate,
    customMessageTemplate
  ];

  return messageTypes;
}

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  templates: getTemplate(),
)

Android

iOS

---

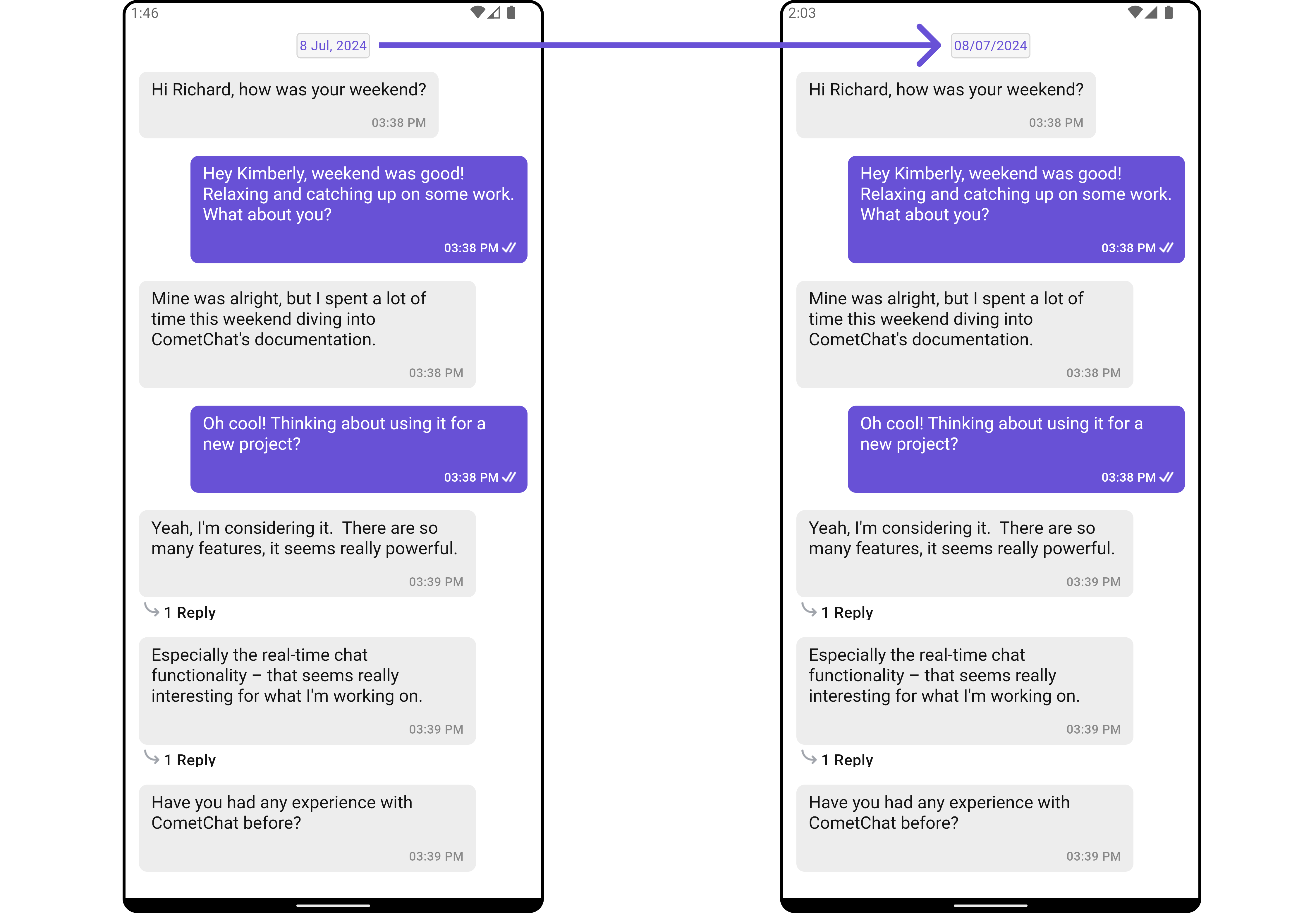

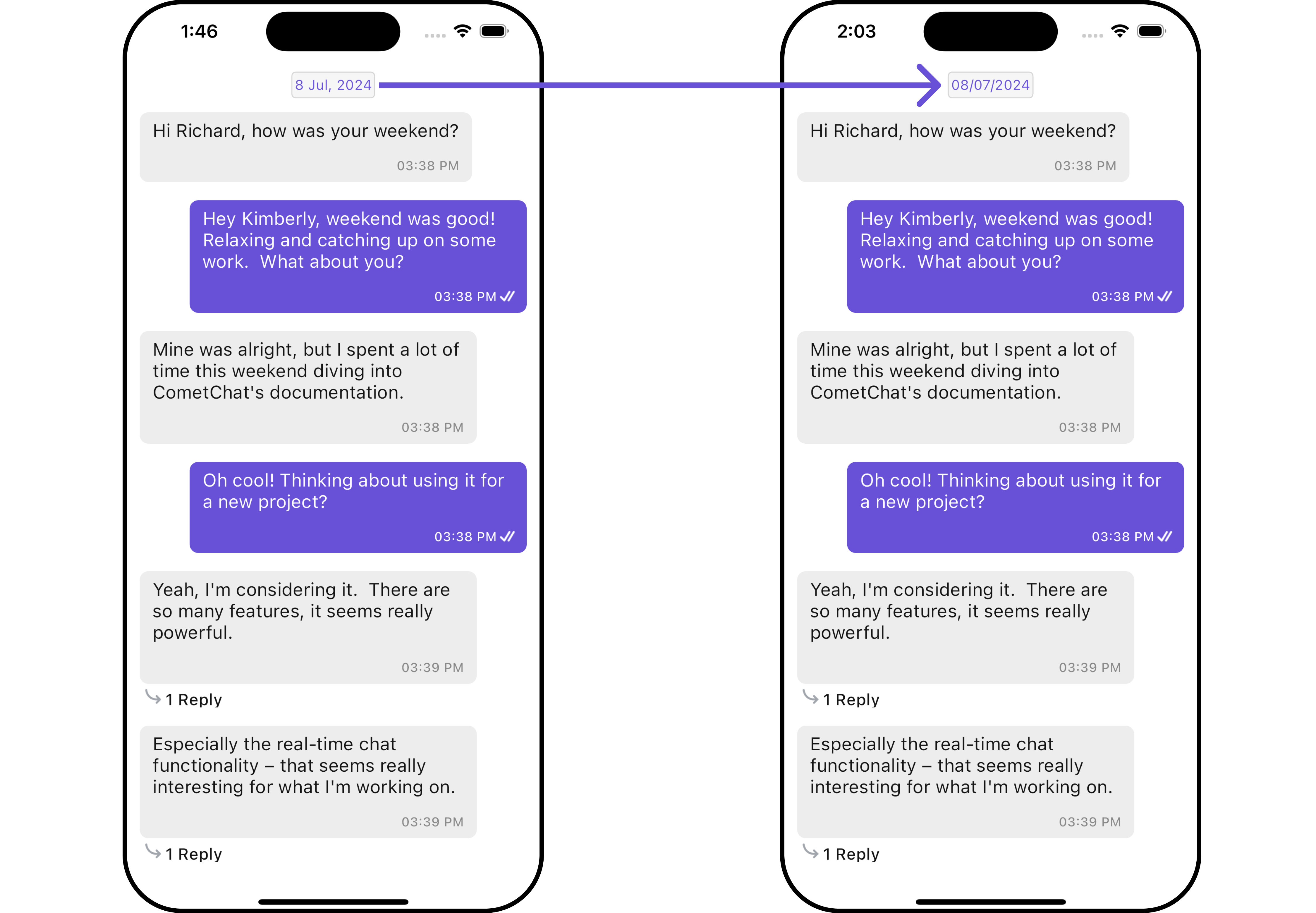

DateSeparatorPattern

You can modify the date pattern of the message list date separator to your requirement using setDateSeparatorPattern(). This method accepts a function with a return type String. Inside the function, you can create your own pattern and return it as a String.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  dateSeparatorPattern: (DateTime dateTime) {
    return ""; //Replace this empty string with your custom date time pattern.
  },
)

Example

Here is the complete example for reference:

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  dateSeparatorPattern: (DateTime dateTime) {
    return DateFormat("dd/MM/yyyy").format(dateTime);
  },
)

Android

iOS

---

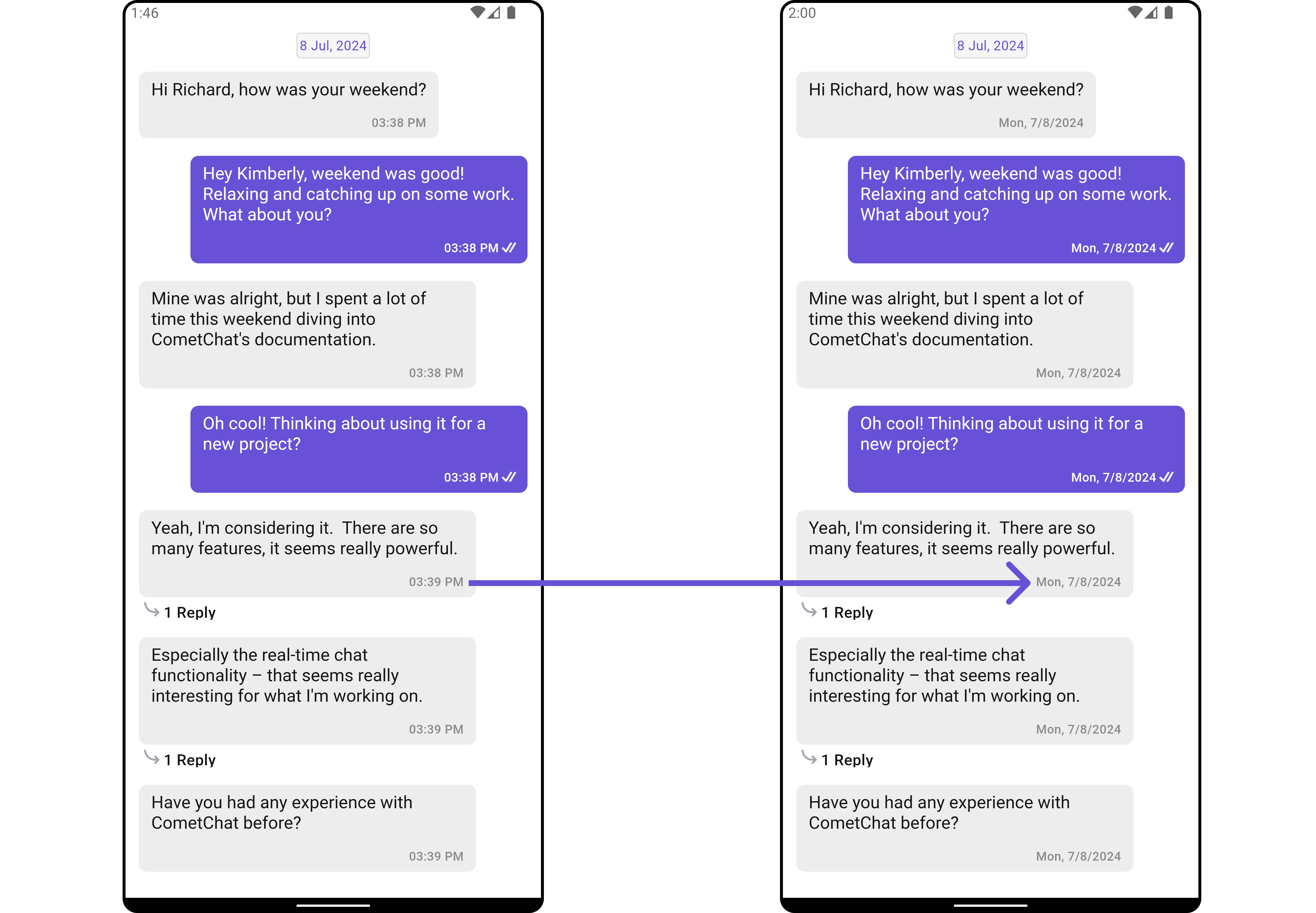

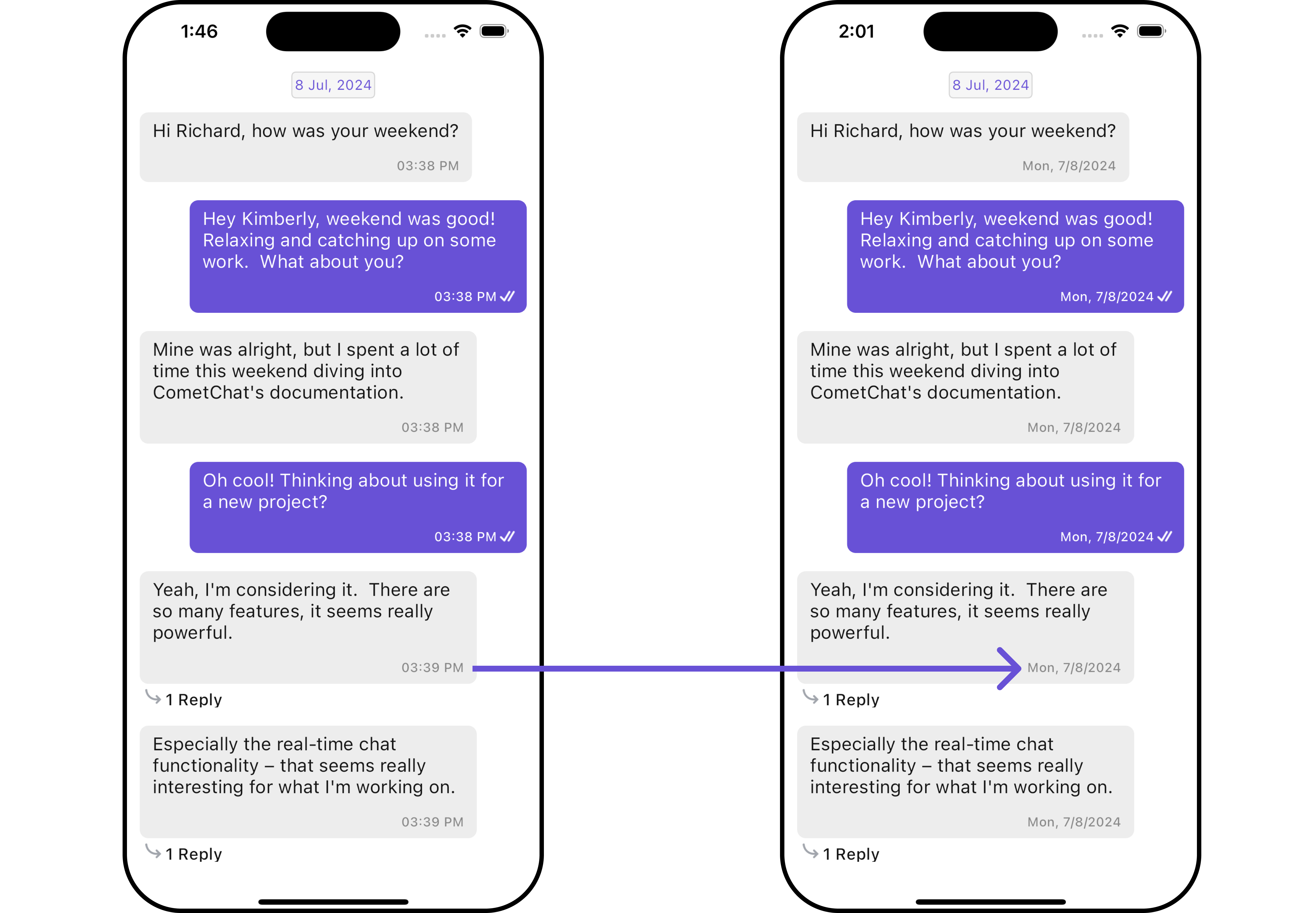

SetDatePattern

You can modify the date pattern to your requirement using .setDatePattern. This method accepts a function with a return type String. Inside the function, you can create your own pattern and return it as a String.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  datePattern: (message) {
    return DateFormat('YOUR_PATTERN').format(message.sentAt!);
  },
)

Example

Here is the complete example for reference:

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  datePattern: (message) {
    return DateFormat('EEE, M/d/y').format(message.sentAt!);
  },
)

Android

iOS

---

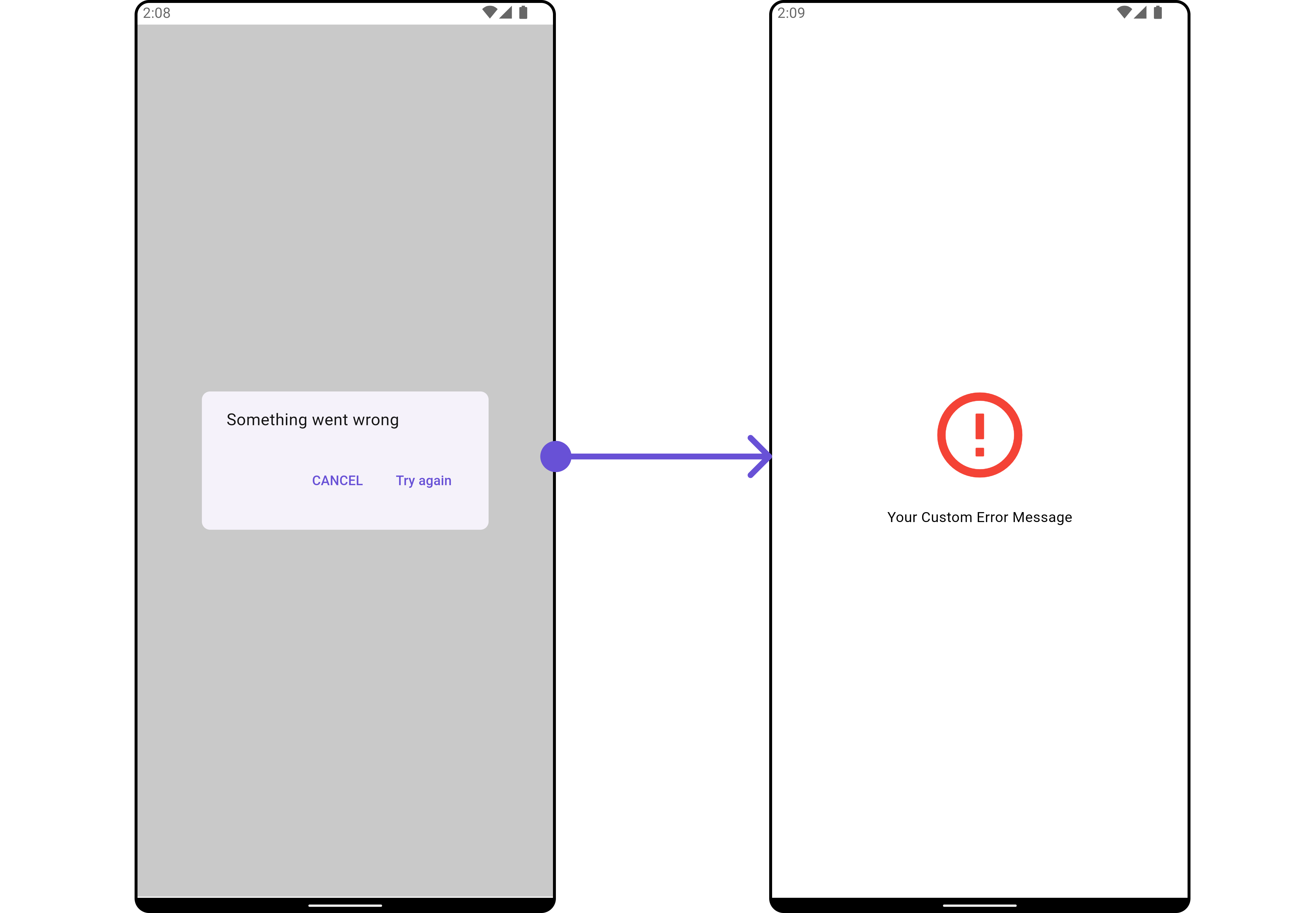

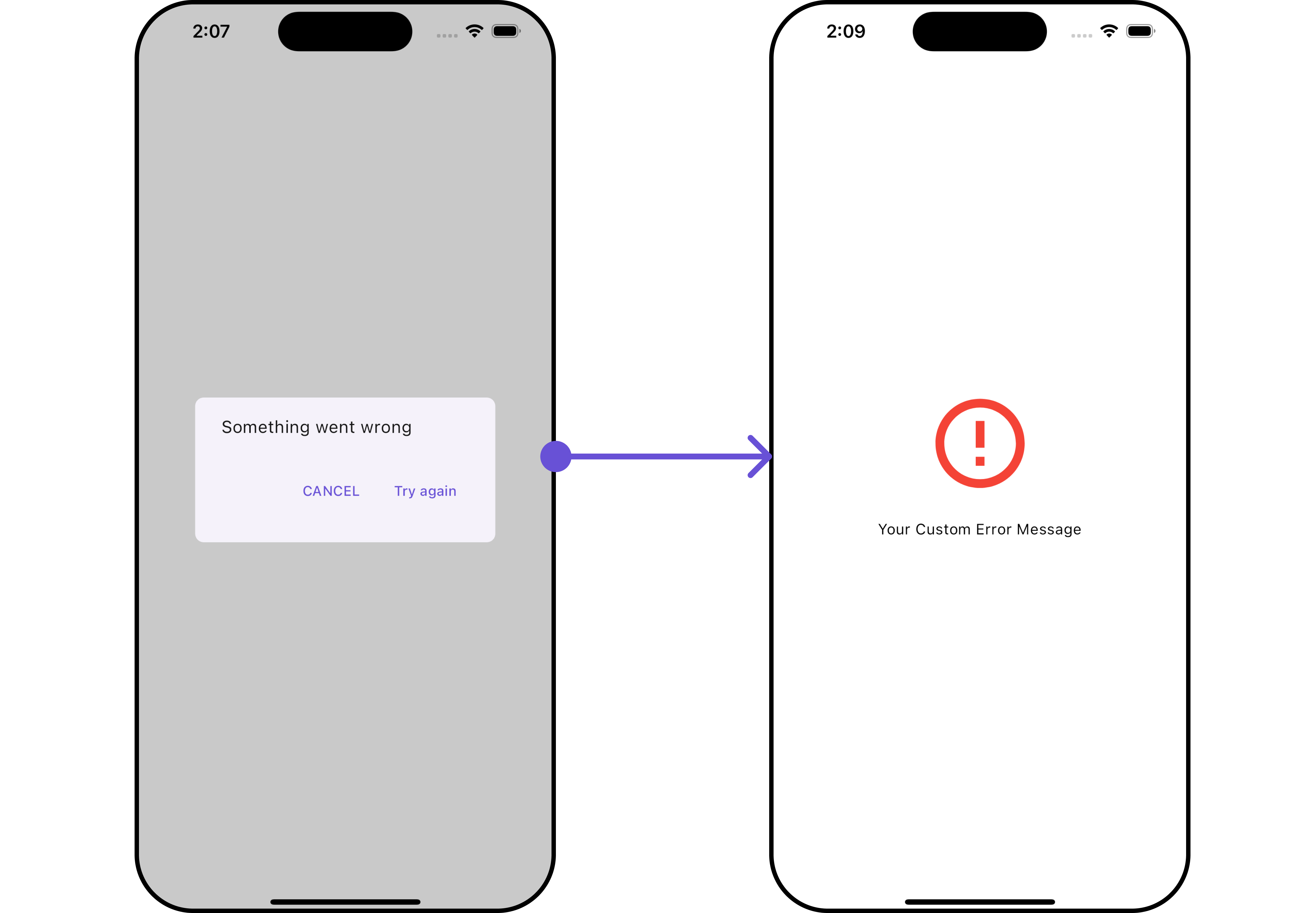

ErrorStateView

You can set a custom ErrorStateView using errorStateView to match the error UI of your app.

Dart

widget

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  errorStateView: (context) {
    return Placeholder(); // Replace this placeholder with your custom widget.
  },
)

Here is the complete example for reference:

Example

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  errorStateView: (context) {
    return Container(
      width: MediaQuery.of(context).size.width,
      child: Center(
        child: const Column(
          crossAxisAlignment: CrossAxisAlignment.center,
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Spacer(),
            Icon(Icons.error_outline, color: Colors.red, size: 100,),
            SizedBox(height: 20,),
            Text("Your Custom Error Message"),
            Spacer(),
          ],
        ),
      ),
    );
  },
)

Android

iOS

---

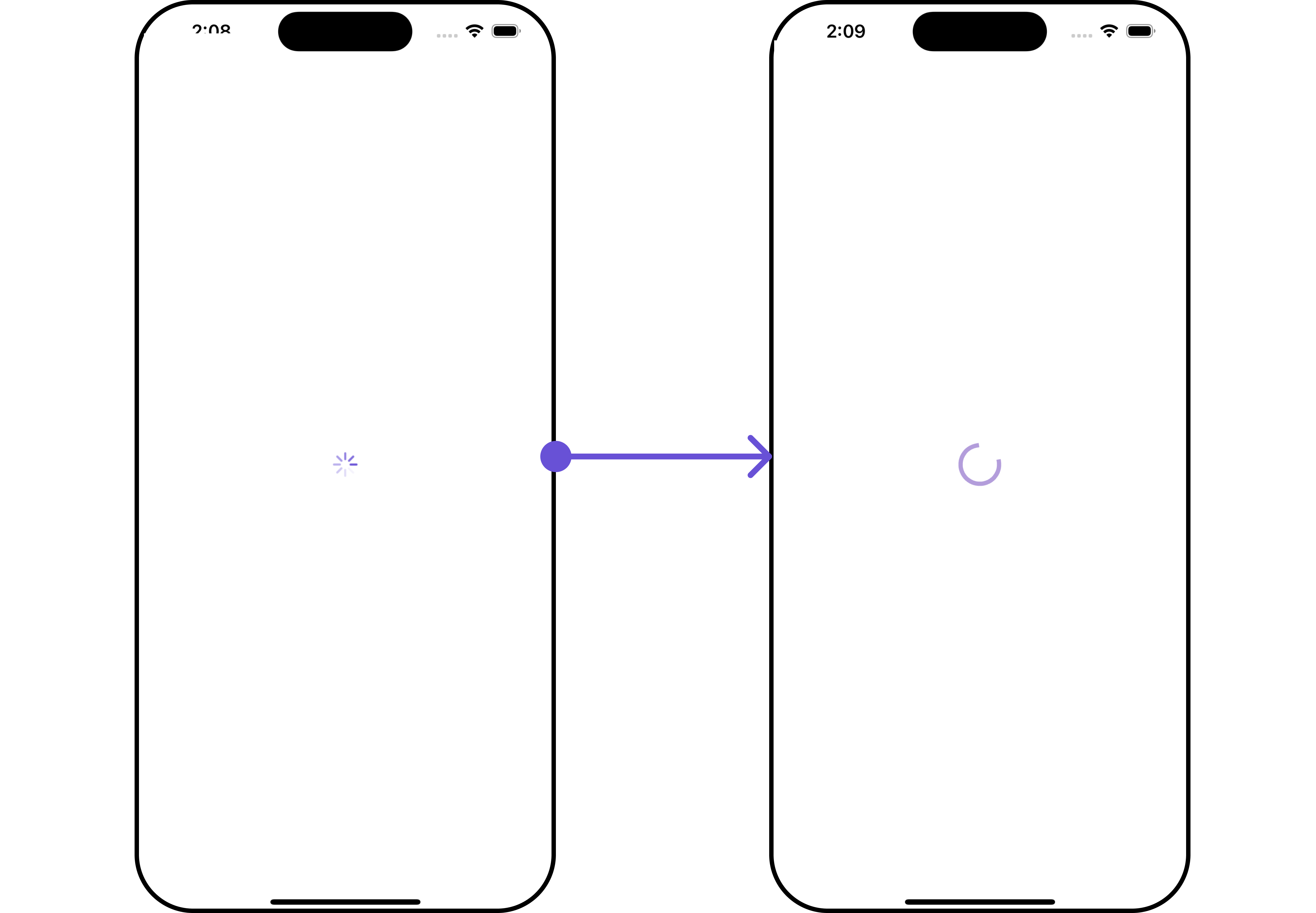

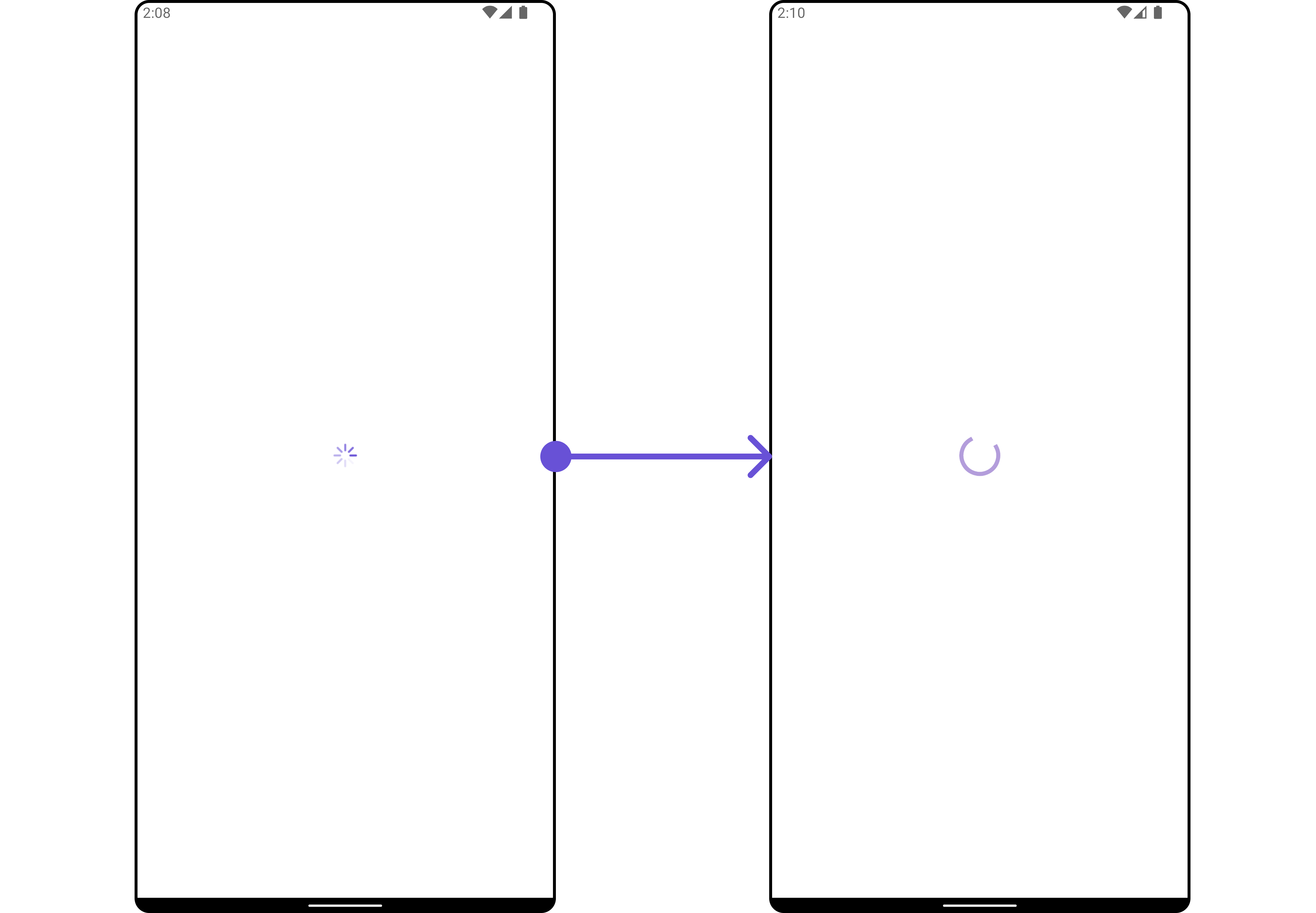

LoadingStateView

You can set a custom loader widget using loadingStateView to match the loading UI of your app.

Dart

widget

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  loadingStateView: (context) {
    return Placeholder(); // Replace this placeholder with your custom widget.
  },
)

Here is the complete example for reference:

Example

Dart

main.dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  loadingStateView: (context) {
    return Container(
      width: MediaQuery.of(context).size.width,
      child: Center(
          child: CircularProgressIndicator()
      ),
    ); // Replaced the placeholder with a custom widget.
  },
)

Android

iOS

---

EmptyStateView

You can set a custom EmptyStateView using emptyStateView to match the error widget of your app.

Dart

widget

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  emptyStateView: (context) {
    return Placeholder(); // Replace this placeholder with your custom widget.
  },
)

Here is the complete example for reference:

Example

Dart

main.dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  emptyStateView: (context) {
    return Container(
      width: MediaQuery.of(context).size.width,
      child: Center(
          child: const Column(
            crossAxisAlignment: CrossAxisAlignment.center,
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              Spacer(),
              Icon(Icons.sms_failed_outlined, color: Colors.red, size: 100,),
              SizedBox(height: 20,),
              Text("Your Custom Message"),
              Spacer(),
            ],
          )
      ),
    ); // Replaced the placeholder with a custom widget.
  },
)

---

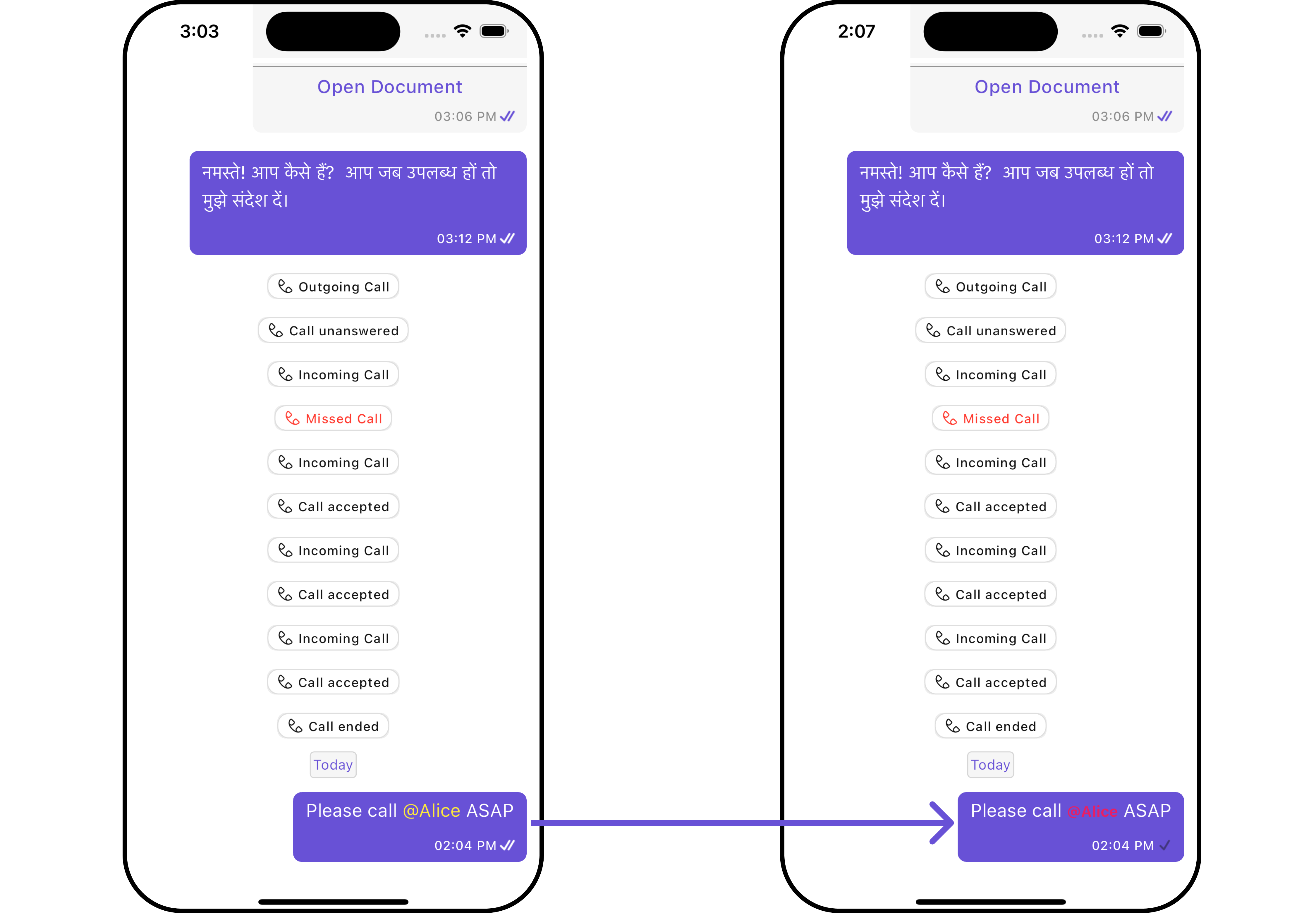

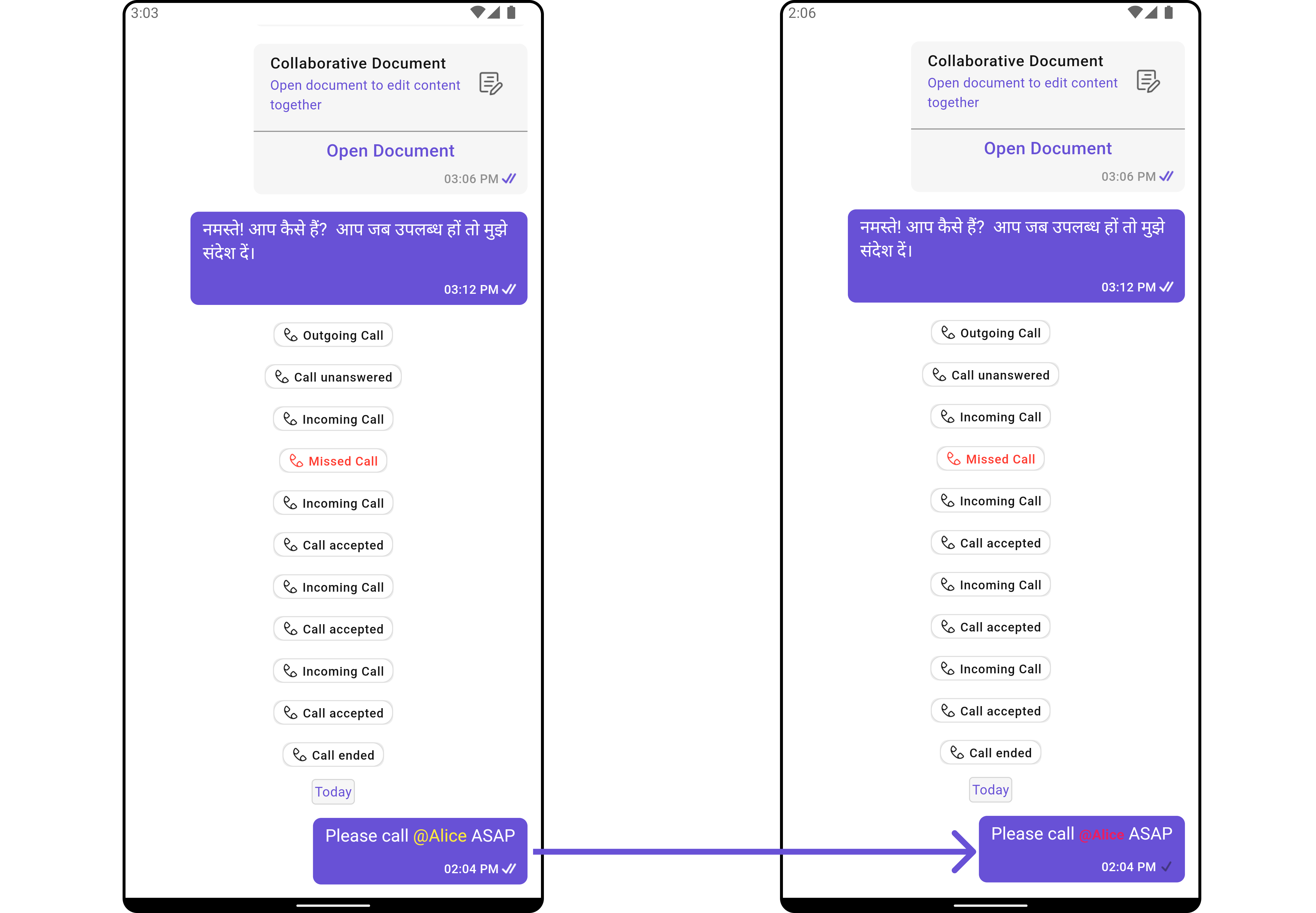

TextFormatters

Assigns the list of text formatters. If the provided list is not null, it sets the list. Otherwise, it assigns the default text formatters retrieved from the data source. To configure the existing Mentions look and feel check out MentionsFormatter Guide

Here is the complete example for reference:

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  textFormatters: [
    CometChatMentionsFormatter(
      messageBubbleTextStyle: (theme, alignment,{forConversation = false}) =>
          TextStyle(
              color: alignment==BubbleAlignment.left? Colors.orange : Colors.pink,
              fontSize: 14,
              fontWeight: FontWeight.bold
          ),
    )
  ],
)

Android

iOS

---

Configuration

Configurations offer the ability to customize the properties of each widget within a Composite Widget.

MessageInformation

From the MessageList, you can navigate to the MesssageInformation widget as shown in the image.

If you wish to modify the properties of the MesssageInformation Widget, you can use the MessageInformationConfiguration object.

Dart

CometChatMessageList(
    user: user, // A user or group object is required to launch this widget.
    messageInformationConfiguration: MessageInformationConfiguration()
)

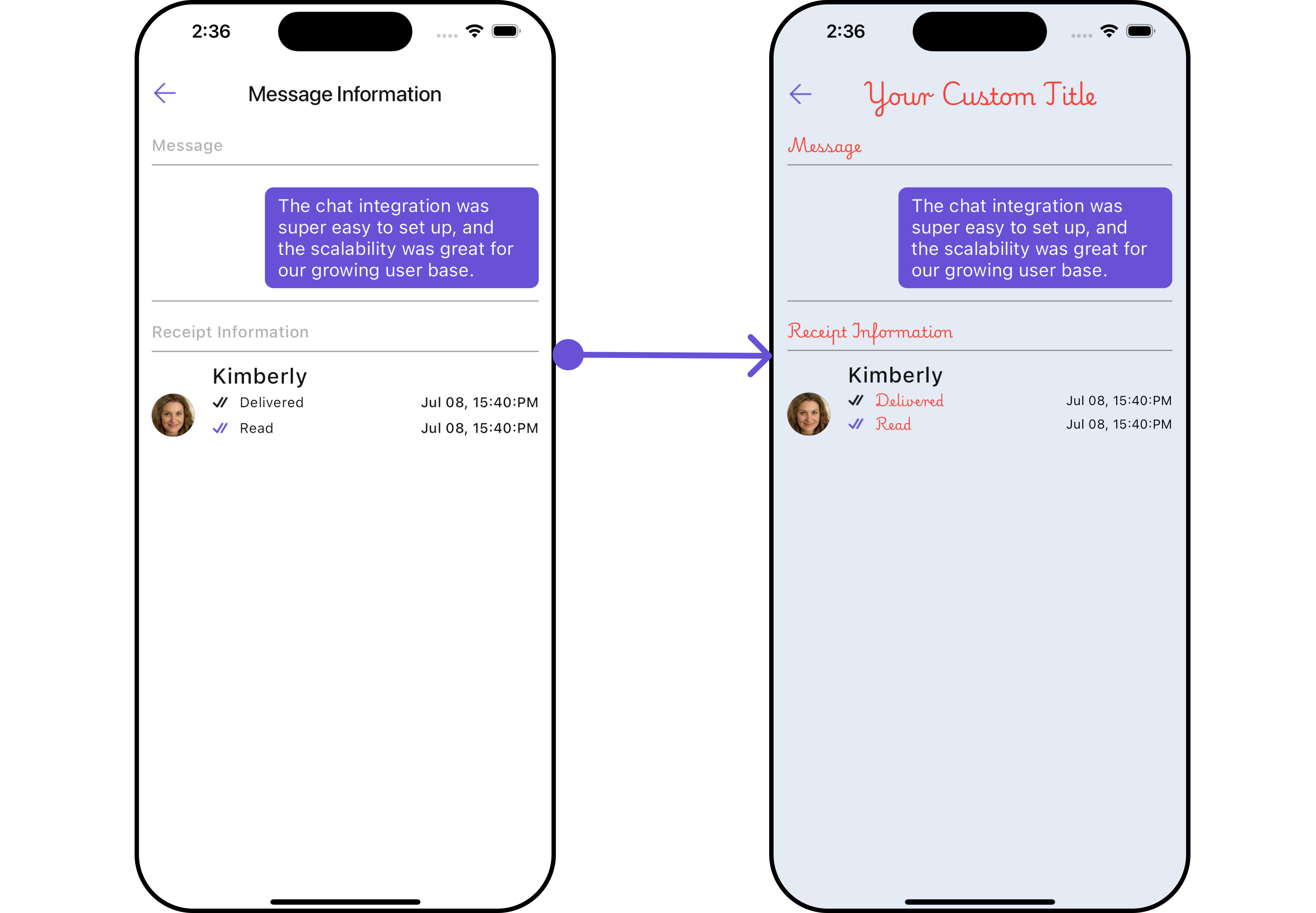

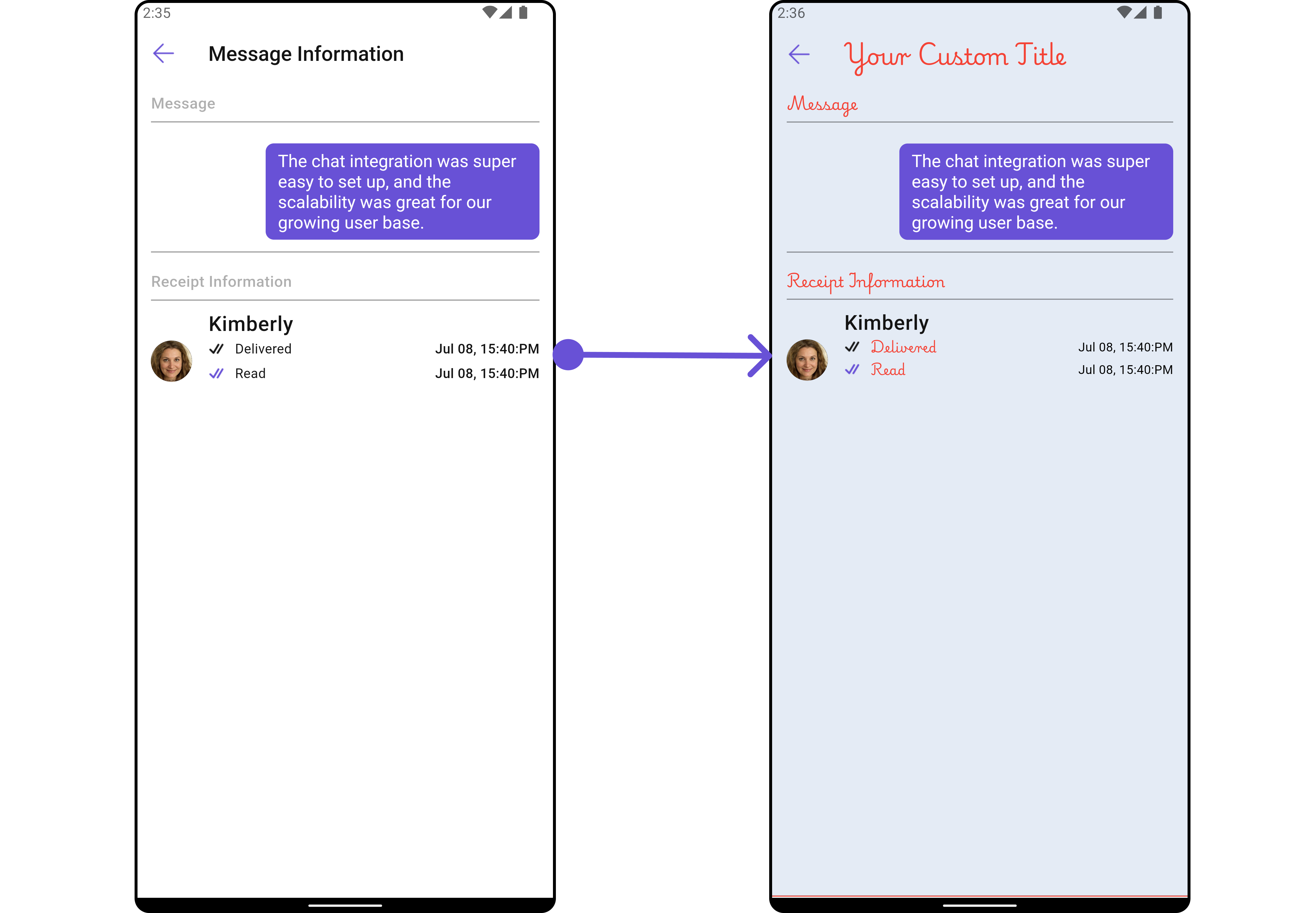

Example

Dart

CometChatMessageList(
    user: user, // A user or group object is required to launch this widget.
    messageInformationConfiguration: MessageInformationConfiguration(
        title: "Your Custom Title",
        messageInformationStyle: MessageInformationStyle(
          background: Color(0xFFE4EBF5),
          border: Border.all(width: 1, color: Colors.red),
          titleStyle: TextStyle(color: Colors.red, fontFamily: "PlaywritePL"),
        )
    )
)

Android

iOS

---
